A PTO gear pump is an essential component in mobile hydraulic systems, especially for dump trucks. It connects the truck’s engine power to the hydraulic system, converting mechanical energy into controlled hydraulic flow. The right PTO gear pump ensures smooth lifting, optimal performance, and long-term reliability, making it a key factor in efficient hydraulic operations.
This guide explains how a PTO gear pump works, its advantages, installation considerations, and how to select the right pump for your dump truck application. It also compares different types of gear pumps, helping you make informed decisions when upgrading or specifying hydraulic systems.

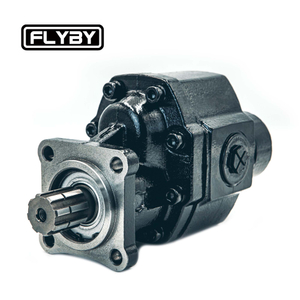

A PTO gear pump is a hydraulic gear pump driven by a truck’s power take-off (PTO) instead of a separate motor. It uses intermeshing gears to move hydraulic oil from the inlet to the outlet, generating a steady flow. In dump trucks, the pump receives rotational power from the PTO when engaged, delivering the flow needed to raise and lower the dump body efficiently.
The primary advantage of a PTO gear pump is its simplicity. Since it harnesses existing engine power, it eliminates the need for a separate power unit, reducing weight and complexity. Hydraulic gear pumps are positive displacement devices, ensuring predictable flow per revolution, which is critical for precise control in heavy-duty applications.
In dump trucks, the PTO gear pump directly determines lifting speed and smoothness. A pump that is too small results in slow lifting, while an oversized pump can generate unnecessary heat and stress the system. The ideal pump balances flow, pressure, and mechanical compatibility.
Key factors affecting performance include:
Cylinder volume and stroke
PTO speed and torque
Relief valve settings
Hose and system restrictions
Understanding these factors ensures that the PTO gear pump meets the lifting requirements of a fully loaded dump truck, maintaining safety and efficiency on the job site.
Feature | PTO Gear Pump | Standard Hydraulic Gear Pump |
|---|---|---|
Drive Source | Truck PTO | Motor, engine, or mechanical drive |
Common Applications | Dump trucks, trailers, mobile equipment | Industrial machinery, power packs, mobile circuits |
Key Fitment | PTO output speed, shaft, flange, rotation | Motor speed, coupling, base mounting |
Selection Focus | Lifting speed, pressure, PTO ratio | Flow, pressure, duty cycle, installation space |
Main Benefit | Compact, durable, simple installation | Versatile, industrial-grade performance |
Although a PTO gear pump is internally a hydraulic gear pump, it is specifically packaged for PTO-driven mobile applications. This ensures compatibility with truck PTOs and mobile hydraulic circuits.
The pump works through a straightforward mechanical process. PTO rotation turns the pump gears, drawing oil into the gear teeth spaces and pushing it toward the outlet under pressure. Pressure builds when the oil meets resistance from the hydraulic cylinder or valve.
Because of its simple design, a PTO gear pump is durable and easy to maintain, providing reliable performance for frequent lifting cycles, especially in rugged environments like construction or mining.
Specification | Importance | What to Confirm |
|---|---|---|
Displacement | Determines flow | Is it enough for the cylinder size and lifting time? |
Rated Pressure | Working pressure range | Can the pump handle full load safely? |
Maximum Pressure | Peak load tolerance | Is there enough safety margin? |
Rated Speed | Continuous speed limit | Does PTO speed match pump speed? |
Rotation | Correct gear engagement | Clockwise or counterclockwise? |
Shaft Type | Mechanical connection | Compatible with PTO output? |
Mounting Flange | Installation ease | Fits the truck PTO? |
Housing Material | Strength and weight | Cast iron or aluminum? |
Port Position | Hose routing | Can it be installed without restriction? |
These specifications ensure the pump integrates seamlessly with the truck hydraulic system, reducing downtime and maintenance issues.
Flow depends on displacement, speed, and efficiency:
Flow = Displacement × Speed × Volumetric Efficiency
Example | Value |
|---|---|
Pump Displacement | 80 cc/rev |
Pump Speed | 1,000 rpm |
Efficiency | 90% |
Estimated Flow | 72 L/min |
Correct selection ensures sufficient flow for the desired lifting speed without overloading the engine or PTO.
Pump Type | Best For | Key Advantage | Consideration |
|---|---|---|---|
Single | Standard lifting | Simple, cost-effective | One main output only |
Duplex | Lifting + auxiliary | Two hydraulic outputs | Requires PTO torque check |

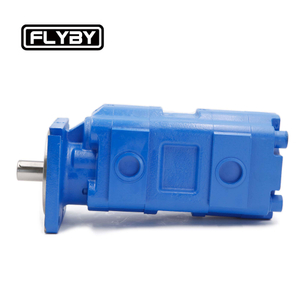

Tandem | Heavy-duty/multi-function | Compact dual pump | Confirm PTO compatibility |

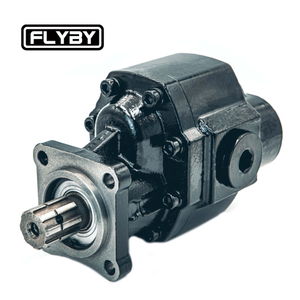

Bidirectional | Reversible flow | Flexible operations | Must match valve and circuit |
Choosing the correct pump type depends on the dump truck’s hydraulic circuit and operational needs.
Proper installation is critical for performance:
Ensure short, straight, properly sized suction lines
Confirm PTO rotation matches pump specification
Check alignment for shafts and flanges
Maintain clean oil and proper filtration
Maintenance includes routine oil checks, filter replacement, and inspection for abnormal noise, leaks, or vibration. Regular upkeep extends the life of the PTO gear pump and protects the dump truck hydraulic system.
Efficiency-focused pumps reduce engine load and fuel consumption

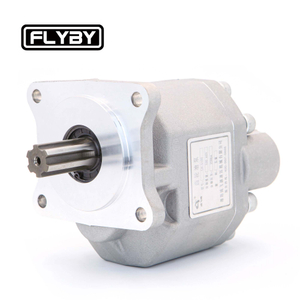

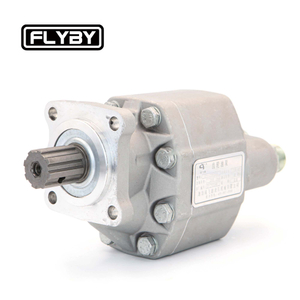

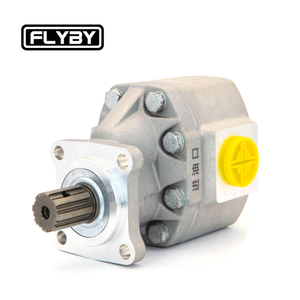

Lightweight materials like aluminum improve vehicle efficiency while cast iron remains ideal for heavy-duty use
System integration allows matched PTO, pump, and valves for easier installation
OEM customization supports specific displacement, rotation, shaft, and port requirements
Despite advances in electrification, PTO-driven hydraulic gear pumps remain highly practical in dump truck applications due to their simplicity, reliability, and cost-effectiveness.
1. What is the difference between a PTO gear pump and a dump pump?
A dump pump is a complete hydraulic package for body lifting, whereas a PTO gear pump refers specifically to the gear-type pump driven by the truck PTO.
2. Can a PTO gear pump operate continuously?
Yes, but it must stay within rated speed, pressure, and temperature. Continuous operation requires proper cooling and oil management.
3. How do I confirm rotation direction?
Check the manufacturer’s reference or nameplate. Incorrect rotation can prevent proper flow or damage internal components.
4. Why is lifting slow after replacement?
Possible reasons include lower displacement, restricted suction lines, air in the system, or incorrect PTO speed. Verify the full hydraulic system.
5. What details should I provide to suppliers?
Truck and PTO model, pump displacement, shaft and flange type, rotation, port layout, required flow and pressure, and cylinder size help ensure a precise match.
