CBCF-S
Flyby Hydraulic
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Gear pump |
| Model Number | CBCF-S |
| Rated Pressure | 22Mpa |
| Maximum Pressure | 25Mpa |
| Rated Revolutions | 2000r/min |
| Maximum Revolutions | 2500r/min |
| Swept volume | 35 43 63 80 100 110ml/r |
| Port | Sides and back |

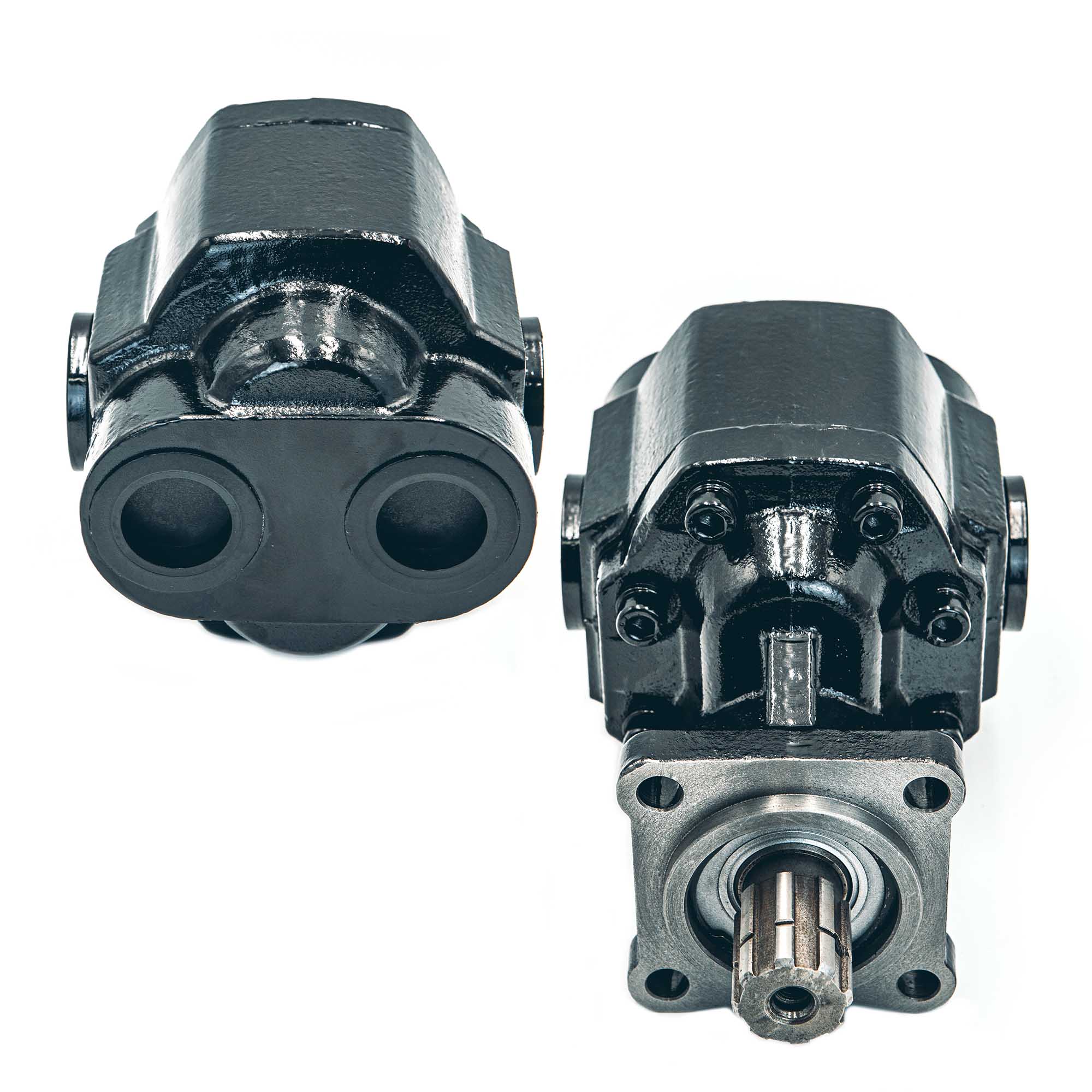

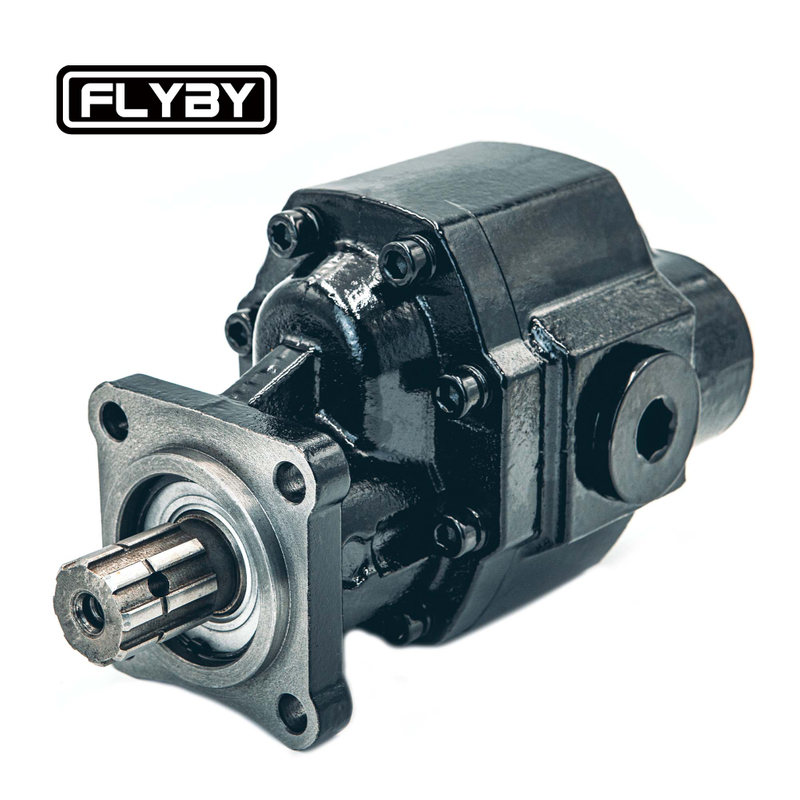

The CBCF-S bidirectional gear pump is specifically designed for dump truck hydraulic systems. It operates in both rotational directions and is available with either needle roller bearings or oil-free bearings, with the needle roller version offering enhanced contamination resistance. The side plates are coated with a special copper alloy for superior wear resistance. Each pump undergoes rigorous bidirectional pressure and efficiency testing to ensure reliable performance upon installation. Key parameters include a rated pressure of 22 MPa, maximum pressure of 25 MPa, rated speed of 2000 r/min, maximum speed of 2500 r/min, and swept volumes ranging from 35 to 110 ml/rev. Ports are located on the sides and back for flexible installation.
The CBCF-S bidirectional gear pump is engineered for seamless operation in both rotational directions, a critical feature for dump trucks requiring frequent direction changes in hydraulic circuits. Each pump undergoes strict bidirectional pressure and efficiency testing, guaranteeing consistent performance and durability under real-world conditions. This reliability reduces downtime and maintenance costs, directly addressing the core demand for robust and versatile hydraulic solutions in heavy-duty applications.
With two bearing options—needle roller and oil-free—the pump caters to diverse operational environments. The needle roller bearing variant excels in contamination resistance, making it ideal for dump trucks operating in harsh, debris-prone settings. This design extends service life and reduces failure risks, meeting the industry's need for low-maintenance, high-reliability components that withstand abrasive and polluted conditions.
The side plates feature a special copper alloy coating that significantly enhances wear resistance, even under high-pressure conditions up to 25 MPa. This technology ensures prolonged pump life and consistent efficiency, reducing the frequency of replacements and repairs. For dump truck operators, this translates to lower operating costs and enhanced productivity in demanding hydraulic applications.

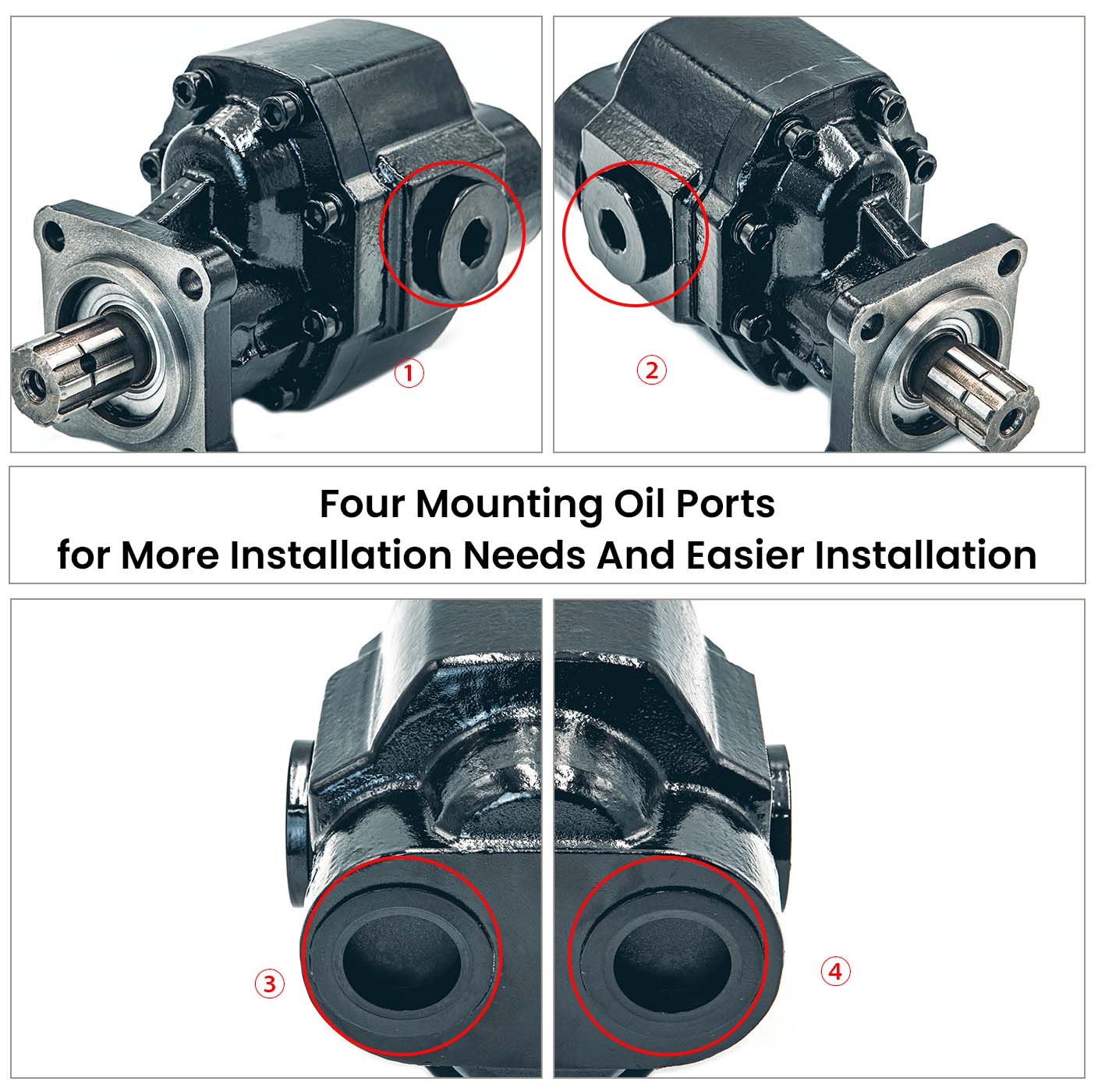

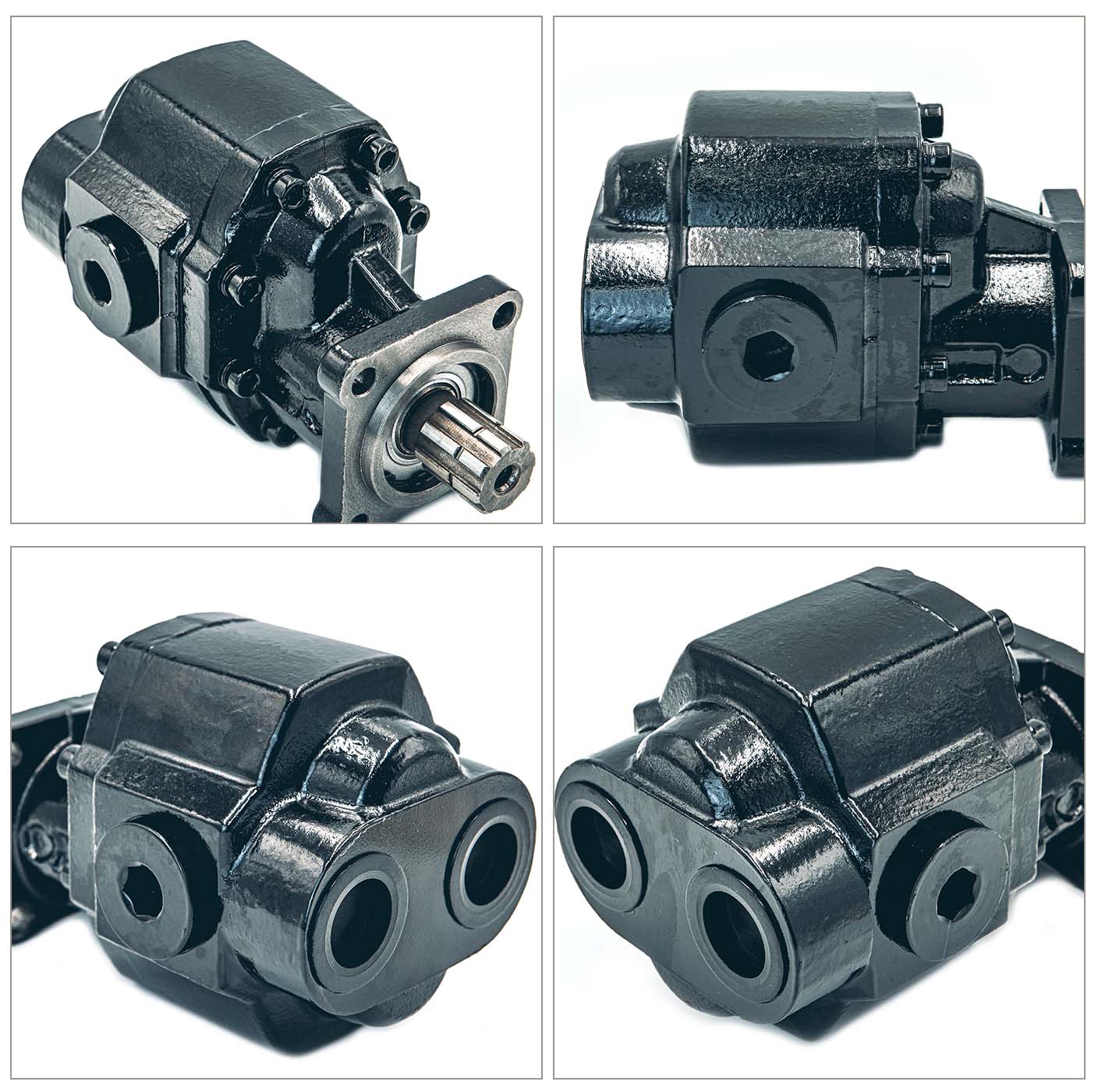

With port options on the sides and back, the pump offers installation flexibility to fit various hydraulic system layouts. Its swept volume range (35-110 ml/rev) and high-speed capability (2500 r/min) allow customization for different dump truck models and operational requirements. This adaptability ensures optimal performance and efficiency, addressing the need for versatile and easy-to-integrate hydraulic components.
Q：Is this a genuine bidirectional hydraulic gear pump? Does it work well for both clockwise and counter-clockwise rotation?
A：Yes. This CBCF-S gear pump is equipped with built-in check valves in the rear cover. It can output pressure oil steadily whether rotating clockwise or counter-clockwise. It can match PTOs with different rotation directions without modifying hydraulic pipelines.
Q：Can this pump directly replace other brands'tipper truck gear pumps?
A：It adopts mainstream standard 4-hole flange, standard spline shaft and common port thread with strong interchangeability. Please confirm spline size, mounting dimension and displacement before ordering.
Q：What material is the pump housing? Is it suitable for heavy-duty dump trucks?
A：The pump housing is made of ductile cast iron, resistant to shock and cracking. Adopting floating side plate clearance compensation structure. Rated working pressure is 22MPa, peak pressure reaches 25MPa, ideal for heavy-load tippers, waste trucks and dump vehicles.
Q：Is oil leakage a common problem on this hydraulic gear pump?A：We use high-performance oil seals and precisely machined fitting surfaces. The floating side plate automatically compensates gear abrasion to lower internal leakage. Low-cost pumps are prone to oil leaks due to poor sealing parts, rough gear processing and lack of clearance compensation structure.
Q：What displacements are available? Do you accept sample orders and OEM service?
A：We have 63ml/r, 80ml/r, 100ml/r in stock. Sample orders are welcome. OEM service including custom brand logo is available. The warranty period is 12 months.
This bidirectional hydraulic gear pump serves as the power source of the tipper lifting hydraulic system. It always works together with a complete set of hydraulic components to realize cargo box lifting and lowering functions.
Hydraulic Pump
Our full range of hydraulic pumps cover one-way gear pumps, bi-directional gear pumps and multiple displacement models for various dump truck configurations.
PTO (Power Take-off)
Matched with vehicle gearbox to transfer engine power and drive the hydraulic pump to operate. Different installation types and rotation PTO options are available for selection.
Tipping Valve
The control core of the lifting system, used to switch oil circuit to control the rise, hold and fall of the dump truck cargo box.
Hydraulic Oil Tank
Stores hydraulic oil for the whole system, equipped with oil filter, oil level gauge and other accessories to keep the hydraulic fluid clean.
Hydraulic Kit
Complete hydraulic assembly packages including pumps, valves, oil tanks, hoses and connectors, one-stop solution for tipper hydraulic refitting.
Contact us if you need a matched complete hydraulic system solution.
