YX8-80L Metal Hydraulic Oil Tank for Dump Truck

Technical Specification

1. The hydraulic tank has been tested for sealing performance under 0.4bar compressed air for 1min, and there should be no leakage.

2.The cleanliness in the tank is not more than 50mg

3.tank internal acid cleaning corrosionphosphating Fe/Cf. PHR

4.Appearance spray according to QC/T484-1999 automotive paint coating. The provisions of the TQ6

5.The appearance is not allowed to have surface scratch phenomenon, four convex uneven phenomenon and edge jagged

6.plate thickness2.5mm

Product Advantages & Applications

1. Robust Construction for Demanding Environments

This heavy-duty steel hydraulic tank is built with 2.5mm thick steel plate, providing superior structural integrity and impact resistance compared to lighter alternatives. It is specifically designed to withstand the high-pressure cycles and physical stresses common in mining and construction equipment. This inherent strength directly translates to a longer service life and reduced risk of failure, addressing the core customer need for reliability and minimal downtime in harsh operating conditions. When you need a dump truck accessory that won't let you down, our tank's durable build ensures your operations continue smoothly, protecting your investment and maximizing productivity on every job site.

2. Guaranteed Leak-Free Performance & Superior Internal Cleanliness

Every hydraulic oil tank for dump trucks is subjected to a critical sealing performance test under 0.4 bar compressed air for one full minute, guaranteeing a leak-proof unit. Furthermore, the internal cleanliness is meticulously controlled to not exceed 50mg, a standard that surpasses many industry norms. This dual assurance is vital for the health of your entire hydraulic system, preventing fluid loss and protecting sensitive components like pumps and valves from contamination. For equipment owners and construction machinery manufacturers who prioritize system purity and operational integrity, this tank delivers the confidence needed for flawless performance.

3. Advanced Internal & External Corrosion Protection

The interior of this steel hydraulic oil tank undergoes a comprehensive acid cleaning and phosphating (Fe/Cf. PHR) treatment. This process effectively removes impurities and creates a micro-coating that inhibits rust, ensuring the hydraulic fluid remains uncontaminated. Externally, the application of high-grade paint, compliant with the QC/T484-1999 TQ6 automotive standard, offers exceptional resistance to weathering, chemicals, and abrasion. This robust protection is essential for custom hydraulic oil tanks exposed to corrosive environments, significantly extending the product's lifespan and maintaining a professional appearance.

4. Multiple Capacity Options for Customized Solutions

We understand that one size does not fit all. Therefore, our product line offers a versatile range of capacities from the standard 80L hydraulic tank to larger 160L models. This variety ensures you can find the perfect fit for your specific equipment's oil volume requirements and available installation space. This flexibility makes it an ideal hydraulic oil tank for dump trucks and various other construction machinery and agricultural machinery. This selection simplifies the sourcing process for fleet managers and OEMs, providing a one-stop solution for diverse application needs.

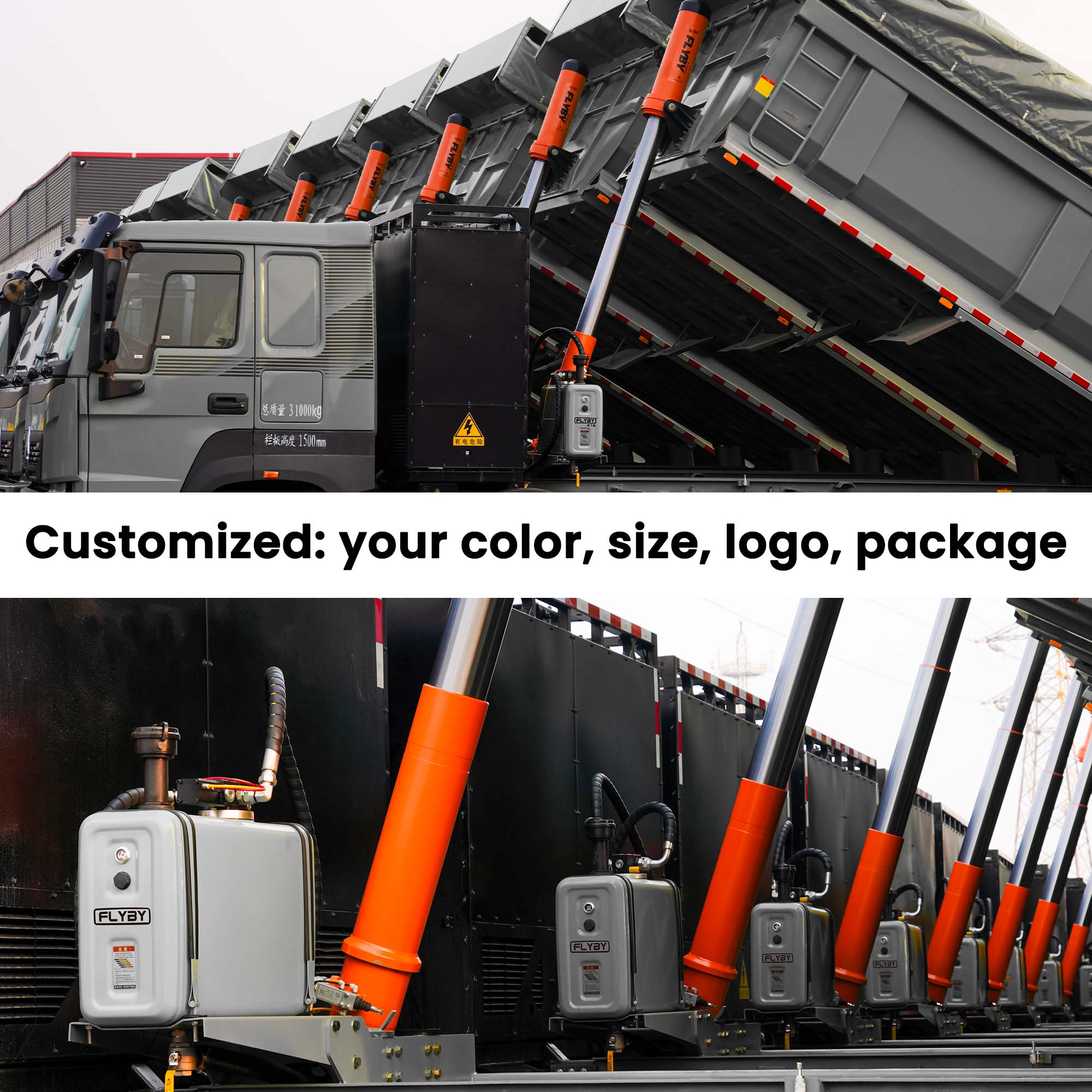

5. Designed for Easy Integration and OEM Customization

Beyond standard offerings, we specialize in providing custom hydraulic oil tanks. We support customization in color, dimensions, logo branding, and packaging to meet unique specifications. This is particularly valuable for OEM manufacturers and suppliers looking to maintain brand consistency or fit specialized equipment. Our high-quality hydraulic oil tank design also considers ease of installation with standardized ports, facilitating quick maintenance and replacement. Partner with us to get a tailored solution that seamlessly integrates into your machinery and strengthens your brand identity.
