V06 Series
FLYBY
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Directional valve |
| Model Number | V06 Series |
| Rated pressure | 250bar |
| Rated flow | 90L/min |
| Operating range | 15-75mm2/s |
| Working temperature | -40 to 80℃ |
| Min viscosity | 12mm2/s |
| Max viscosity | 400mm2/s |
| Monoblock | 1-7 sections |
| Control type | Waterproof Deutsch switch |

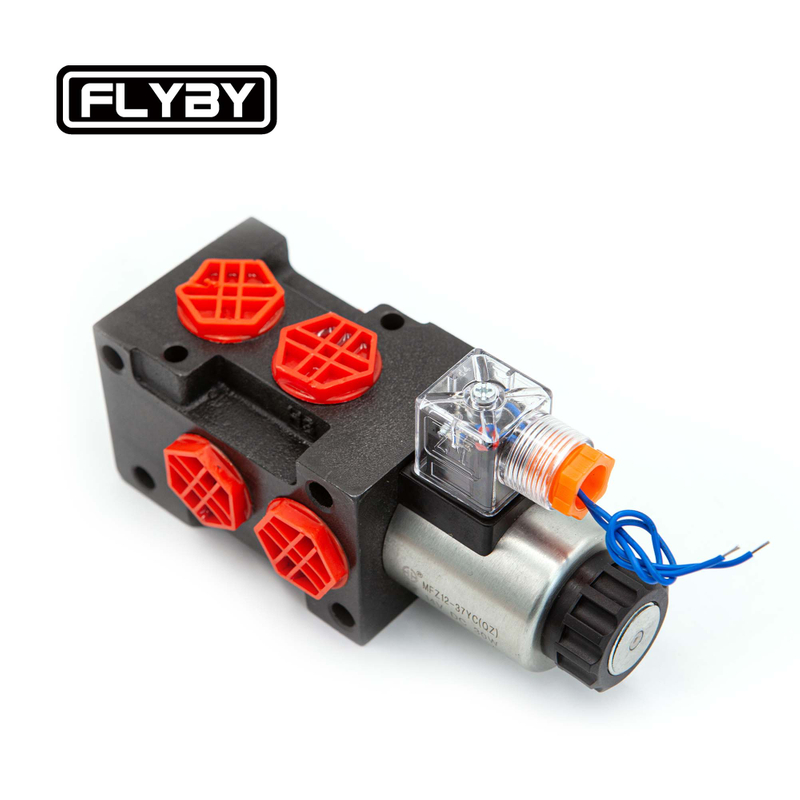

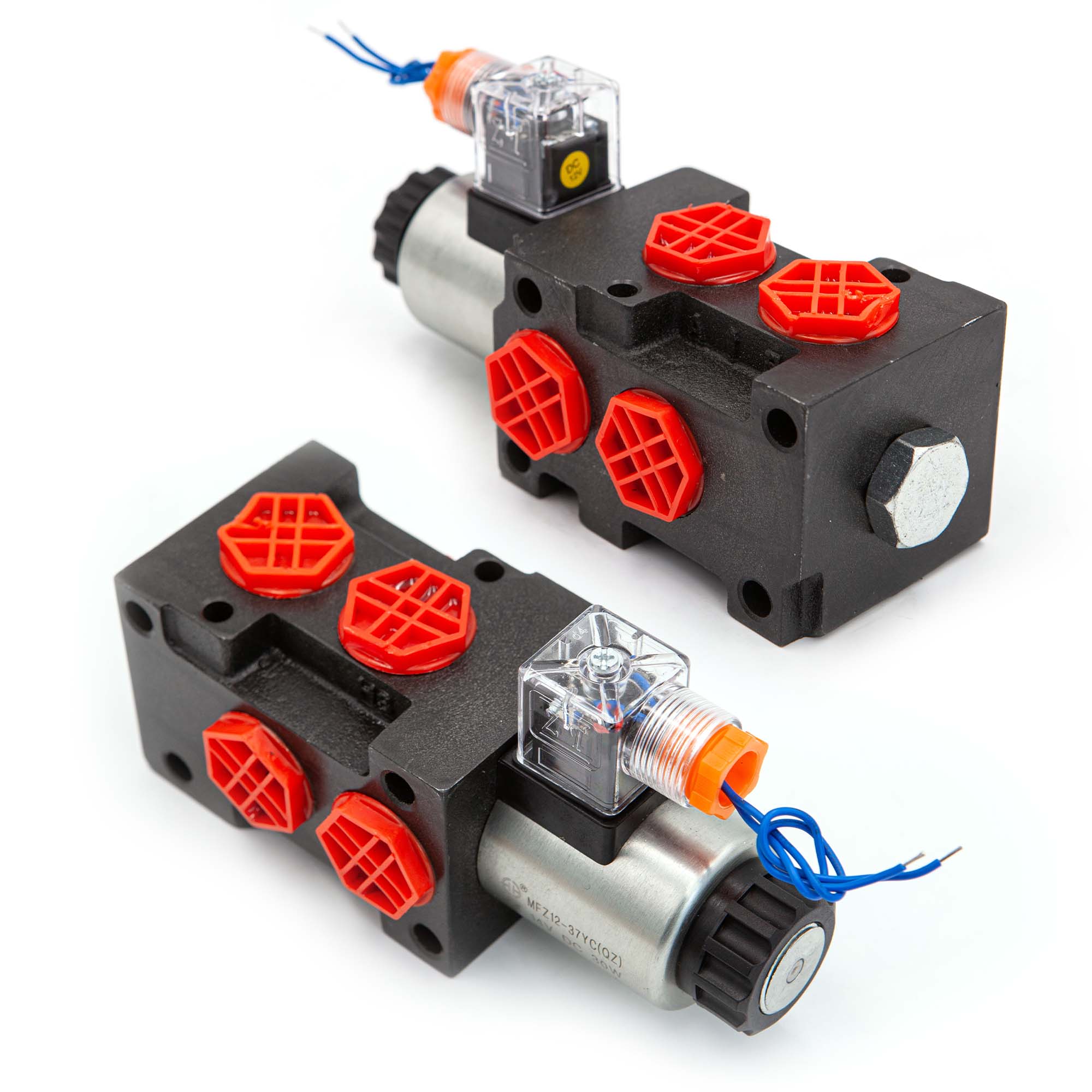

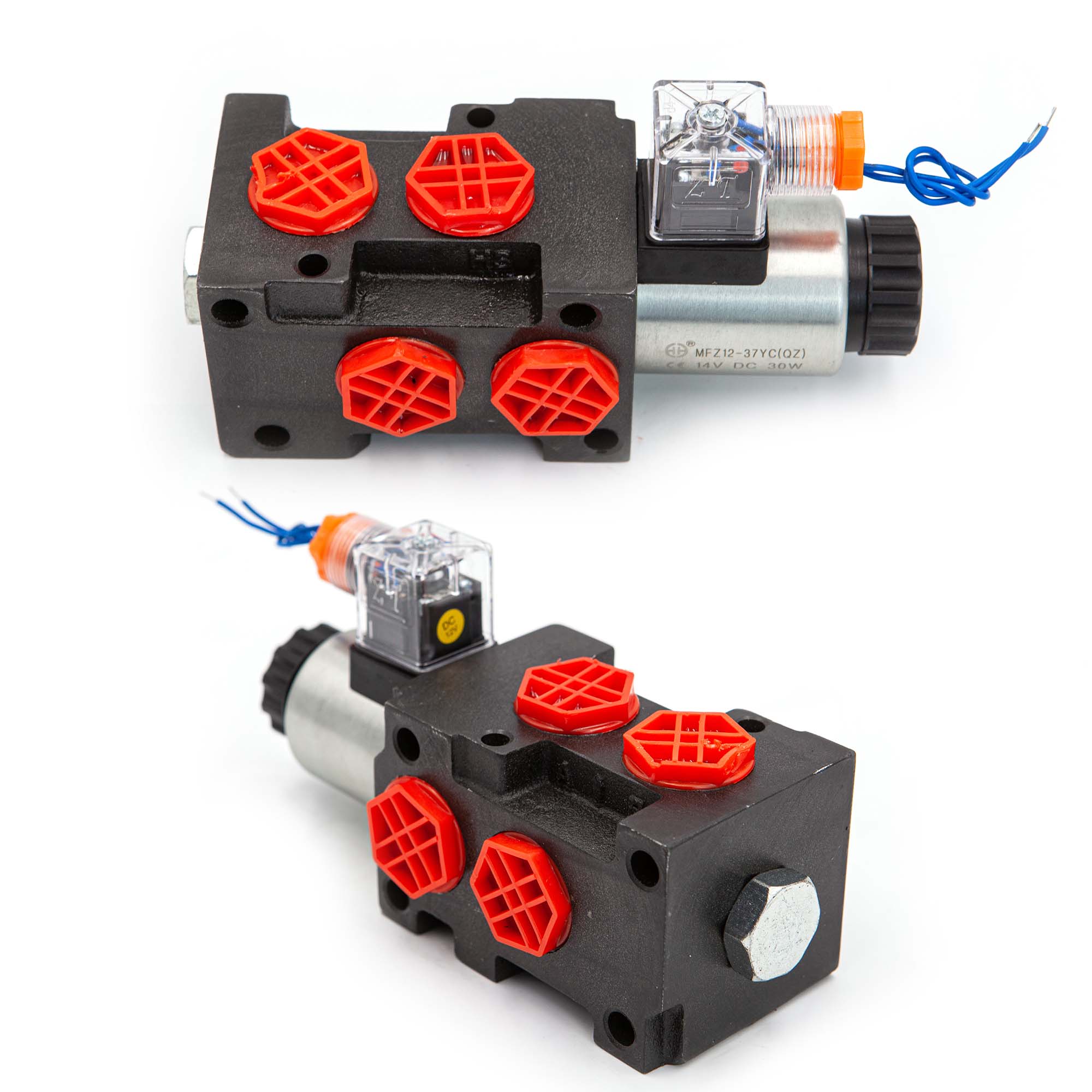

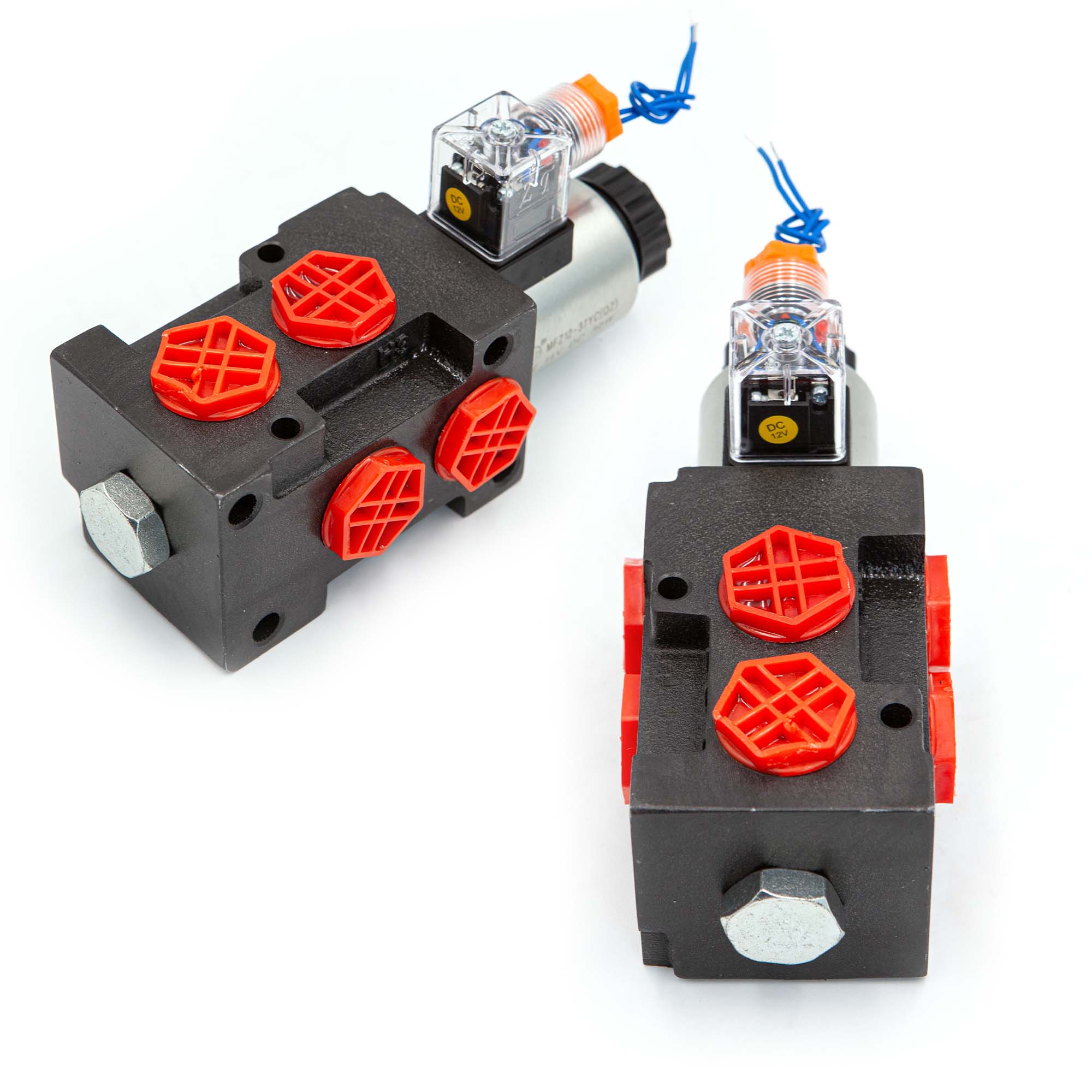

The V06 Series solenoid directional control valve utilizes advanced electromagnetic technology for swift and precise actuation. Its integrated waterproof Deutsch connector ensures electrical integrity in damp or harsh environments, a critical feature for construction machinery hydraulic components exposed to the elements. This electro-hydraulic directional valve enables millisecond-level response times, facilitating automation and remote operation that significantly enhances operational safety and efficiency. By reducing the need for manual intervention, it minimizes human error and optimizes production cycles in automated assembly lines and precision equipment. Upgrade to fast, reliable, and weatherproof control for your automated systems.
Engineered for versatility, the V06 Series features a modular multi-section directional valve design that can be configured with 1 to 7 sections. This flexibility allows system designers and OEMs to create a custom hydraulic control block tailored to specific machine functions, from simple single-actuator control to complex multi-action sequences. The modularity drastically reduces the need for external piping and fittings, lowering installation time, potential leak points, and overall system footprint. In applications like compact concrete pump trucks, this enables simultaneous and coordinated control of multiple functions, boosting productivity while simplifying maintenance and future modifications.
Built to endure, the V06 Series is a reliable hydraulic valve for off-road equipment capable of performing in the most challenging conditions. Its wide operational temperature range (-40°C to 80°C) and broad viscosity tolerance (12-400 mm²/s) make it suitable for global deployment in varying climates. The use of high-strength materials and precision sealing technology grants it excellent resistance to contamination, shock, and vibration commonly found in mining, construction, and agricultural applications. This ruggedness ensures high machine availability, reduces unexpected downtime, and lowers the total cost of ownership for equipment operating in severe duty cycles.
A key differentiator of the V06 Series solenoid flow-diverging valve is its ability to accurately split and direct hydraulic flow to multiple actuators. This sophisticated flow control function for hydraulic valves is essential for machinery requiring synchronized movements, such as cranes and excavators where the boom and arm must operate in concert. By enabling precise proportional control from a single valve, it optimizes system design, reduces the number of required components, and minimizes energy losses. This leads to smoother equipment operation, improved control accuracy, and lower overall energy consumption, enhancing both performance and efficiency.
The V06 Series is engineered with a focus on compact hydraulic valve for small equipment, offering a high power-density solution for space-constrained applications. Its integrated and streamlined design reduces the overall envelope and weight, which is particularly advantageous in compact machinery like mini-excavators and small utility vehicles. The reduced need for lengthy external hydraulic lines decreases pressure drops, boosts system efficiency, and lowers the risk of leaks. This compactness provides OEMs greater design freedom to optimize machine layouts, improve serviceability, and enhance the operator's experience through more ergonomic and efficient equipment designs.
