| Product Type | Cab control valve |
| Model Number | BKQF34E-CQL |
| Pneumatic control range | 0.6-1.2Mpa |
| Nominal diameter | 4mm |
| Function | Bidirectional control valve, with tipping, stopping and slow dropping functions. |

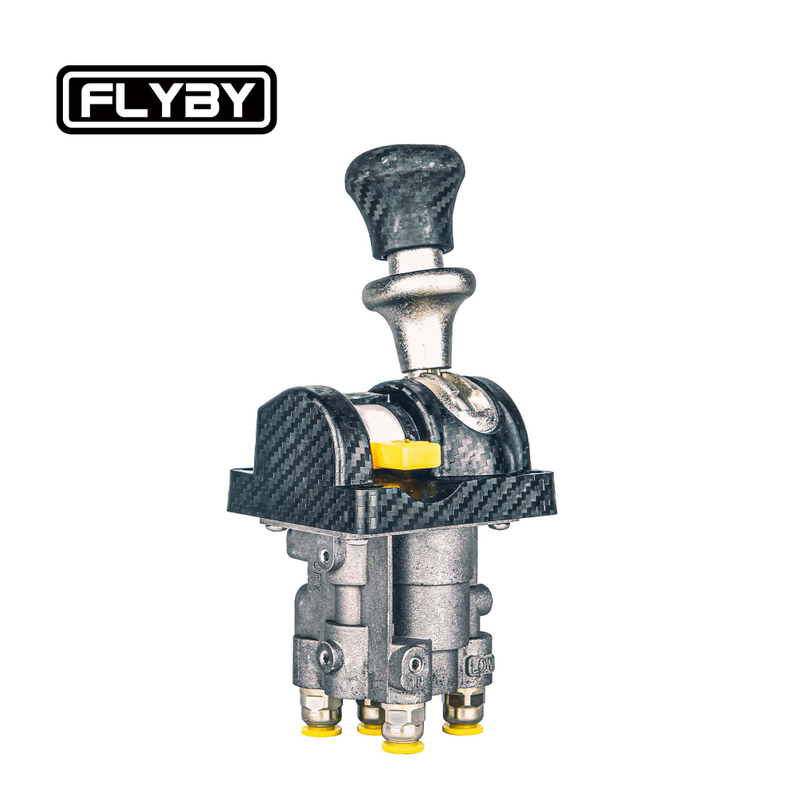

Engineered for accuracy, our PTO control hand valve operates within a 0.6-1.2 MPa pneumatic range with a 4mm nominal diameter. This precise pneumatic control valve for dump truck systems ensures stable and consistent pressure delivery for every function—lifting, stopping, and lowering. It perfectly matches the core industry requirement for control precision in tipper truck PTO systems, preventing operational hiccups and ensuring smooth, predictable load handling. Trust the BKQF34E-CQL for unwavering control stability in your daily operations.

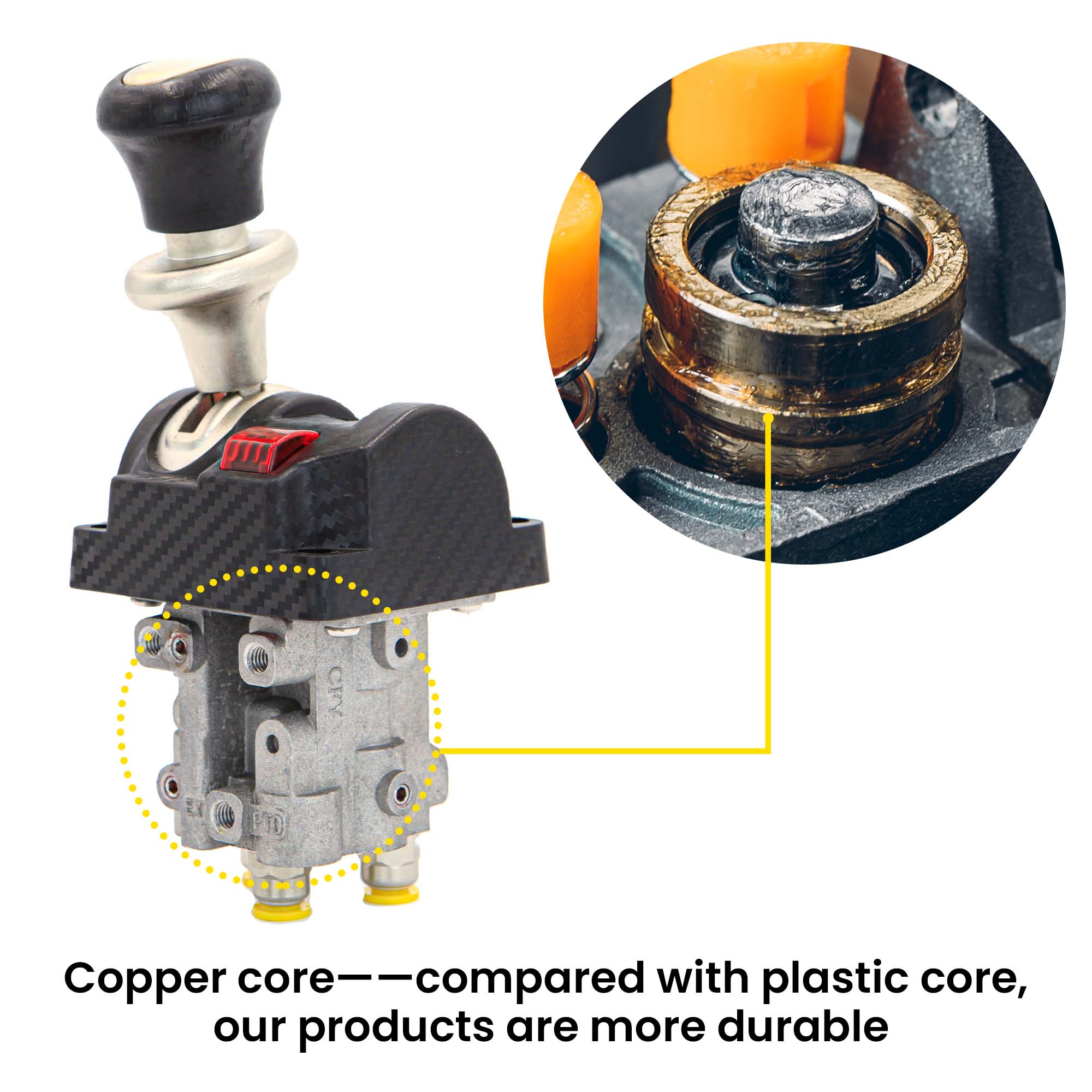

We build the BKQF34E-CQL hand valve to last. Unlike valves with plastic components, it features an aluminum cover insert, handle, and a critical brass spool. This durable PTO valve construction offers superior wear resistance and corrosion resistance, standing up to the rigors of frequent use in harsh environments. This robust tipper truck control valve significantly extends its service life, directly reducing your maintenance frequency and costs, and providing a superior return on investment.

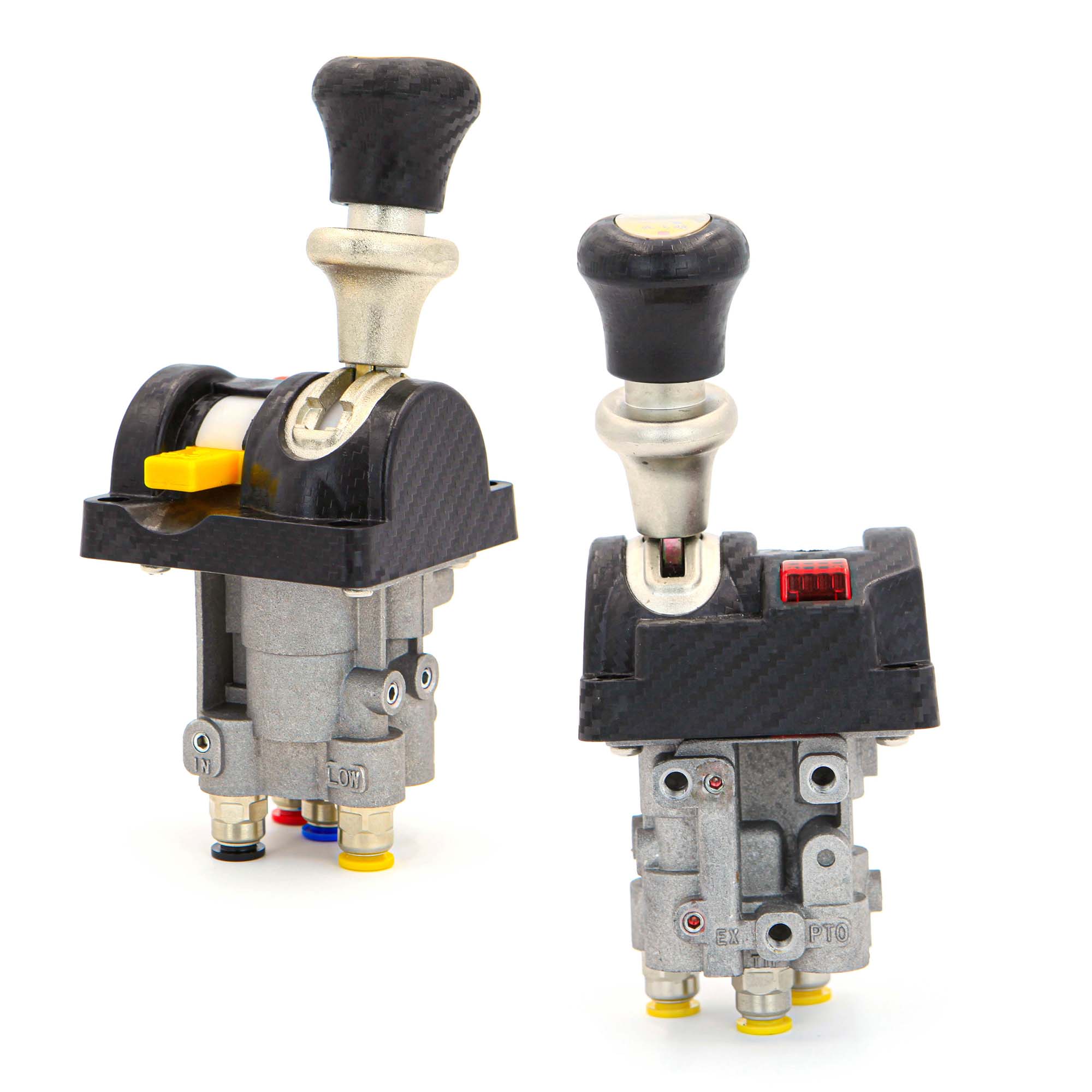

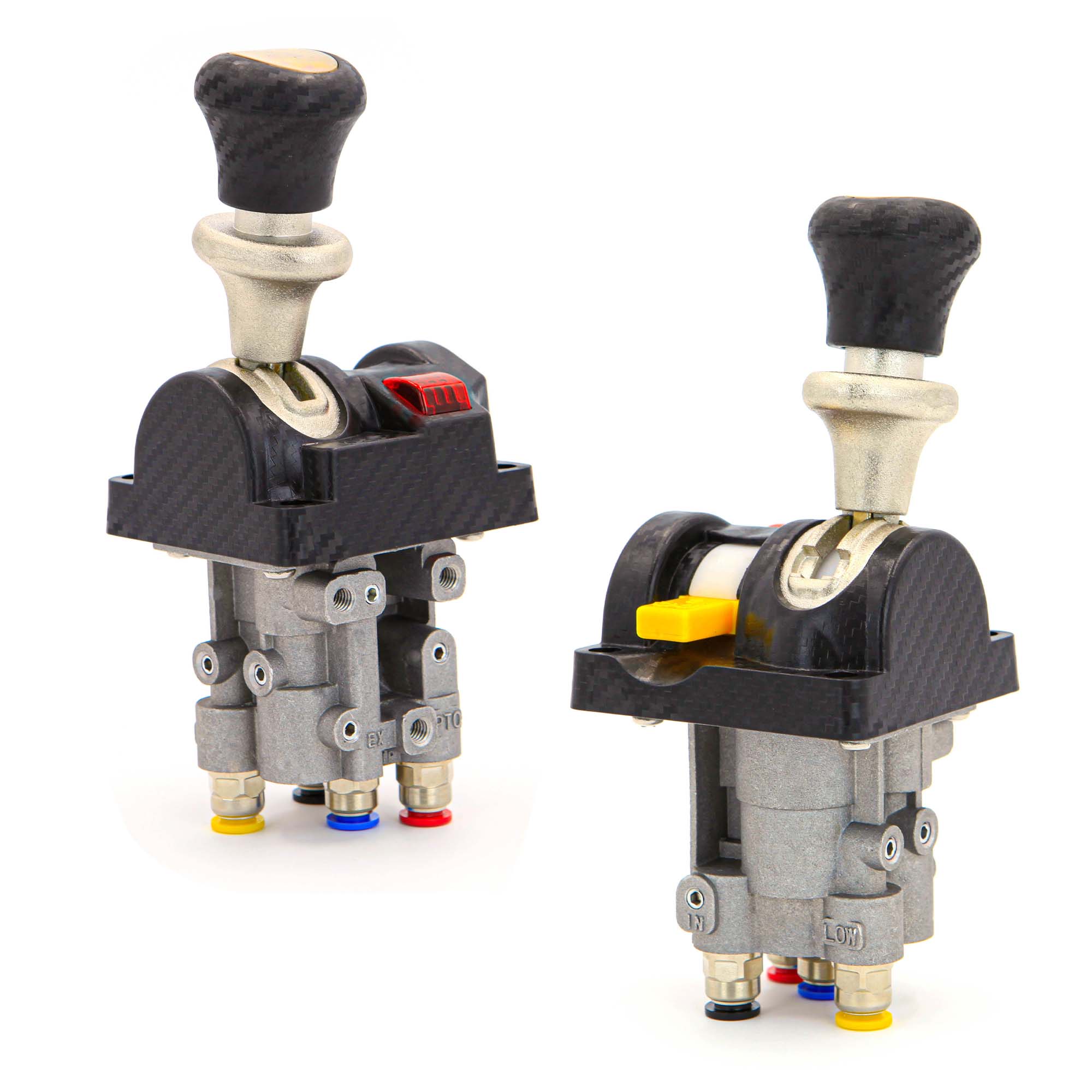

This 4-position PTO valve integrates all essential functions into one intuitive interface: lift, neutral, lower, and PTO on/off. Clearly marked positions allow the operator to make quick and confident mode changes from the cabin. This streamlined control scheme is essential for the fast-paced, multi-scenario work cycles of a dump truck hydraulic control system, minimizing cycle times and boosting overall job site productivity. Its design prioritizes operator convenience and error-free switching.
Through optimized materials and structural design, the BKQF34E-CQL pneumatic valve delivers exceptional stability and reliability under complex and demanding working conditions. This rugged PTO selector valve is built to minimize failures, ensuring the continuous operation of your tipper truck's power take-off system. It meets the fundamental customer demand for a high-reliability core control component, safeguarding your operations against unplanned downtime and associated losses.

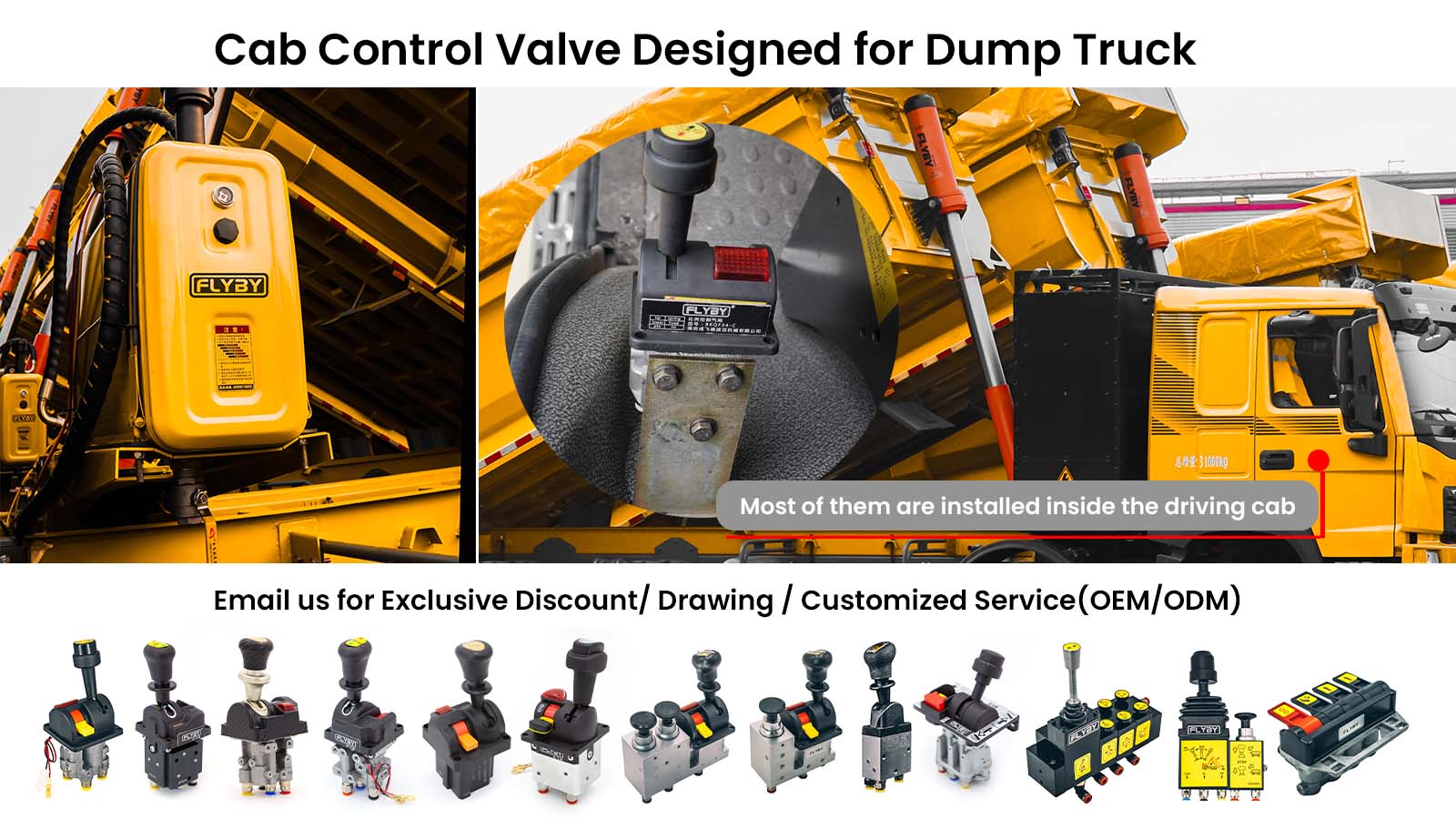

The heavy-duty PTO control valve is designed not just for performance but also for practicality. The combination of robust materials and a logical physical layout makes it a reliable and user-friendly component. Its design ensures easy integration into various dump truck cab controls layouts, facilitating straightforward installation and servicing. Choose a valve that simplifies your system and withstands the test of time and heavy use.
Q&A
--Selecting the correct air control valve for your dump truck or trailer shouldn't be complicated. While FLYBY offers various models, finding the perfect match comes down to understanding your vehicle's control logic and mounting specifications.
Q2 : Do I need a handle with a PTO switch or without?
A: It depends on how your truck engages the hydraulic pump.
Standard Handle (Lift/Lower Only): Choose this if your Power Take-Off (PTO) is controlled by a separate dashboard switch or a foot pedal. This valve is strictly for controlling the hoist (raise/lower) functions.
Integrated PTO Switch Handle: If you want to control everything from one hand, choose a model with a built-in PTO button or switch (usually located on the knob or stem). This allows you to engage the pump and start lifting without reaching for a separate dashboard control. This is the standard choice for most modern heavy-duty dump trucks
Q3: What is the difference between "Automatic Return" and "Locking" mechanisms?
A: It comes down to operator fatigue vs. safety preference.
Automatic Return (Spring-Return): The handle automatically snaps back to the neutral "center" position once you let go.
Best for: Safety-conscious operations and short, frequent lifts. It acts as a "deadman switch," ensuring the hydraulics stop immediately if the driver releases the handle.
Locking Mechanism (Detent/Latching): The handle can be physically locked into the "Raise" or "Lower" position.
Best for: Long-stroke lifting operations. This feature allows the driver to rest their hand while the bed is dumping, significantly reducing fatigue during long shifts.
Q4: I am replacing an old handle (e.g., Eaton or Meritor). How do I ensure it fits?
1. Mounting Thread: Measure the diameter of the thread on the bottom of your old valve (e.g., G1/4, M18x1.5).
2. Air Ports: Check the size of the connections where the air lines attach.
Tip: If you aren't sure, simply send us a photo of your old valve, and we will match the specifications for you.
Q5:Do you offer custom configurations?
A: Yes, we provide full OEM/ODM services.
We understand that different fleets have unique requirements. Beyond our standard catalog, we can customize cable lengths, button positions, voltage (12V/24V), and even housing colors to match your brand or specific chassis requirements.
