P80 Manual
FLYBY
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Directional valve |
| Model Number | P80 Manual |
| Rated pressure | 250bar |
| Rated flow | 40-120L/min |
| Operating range | 15-75mm2/s |
| Working temperature | -40 to 80℃ |
| Min viscosity | 12mm2/s |
| Max viscosity | 400mm2/s |
| Monoblock | 1-7 sections |
| Control type | manual, joystick, cable, pneumatic, electro-hydraulic, etc |

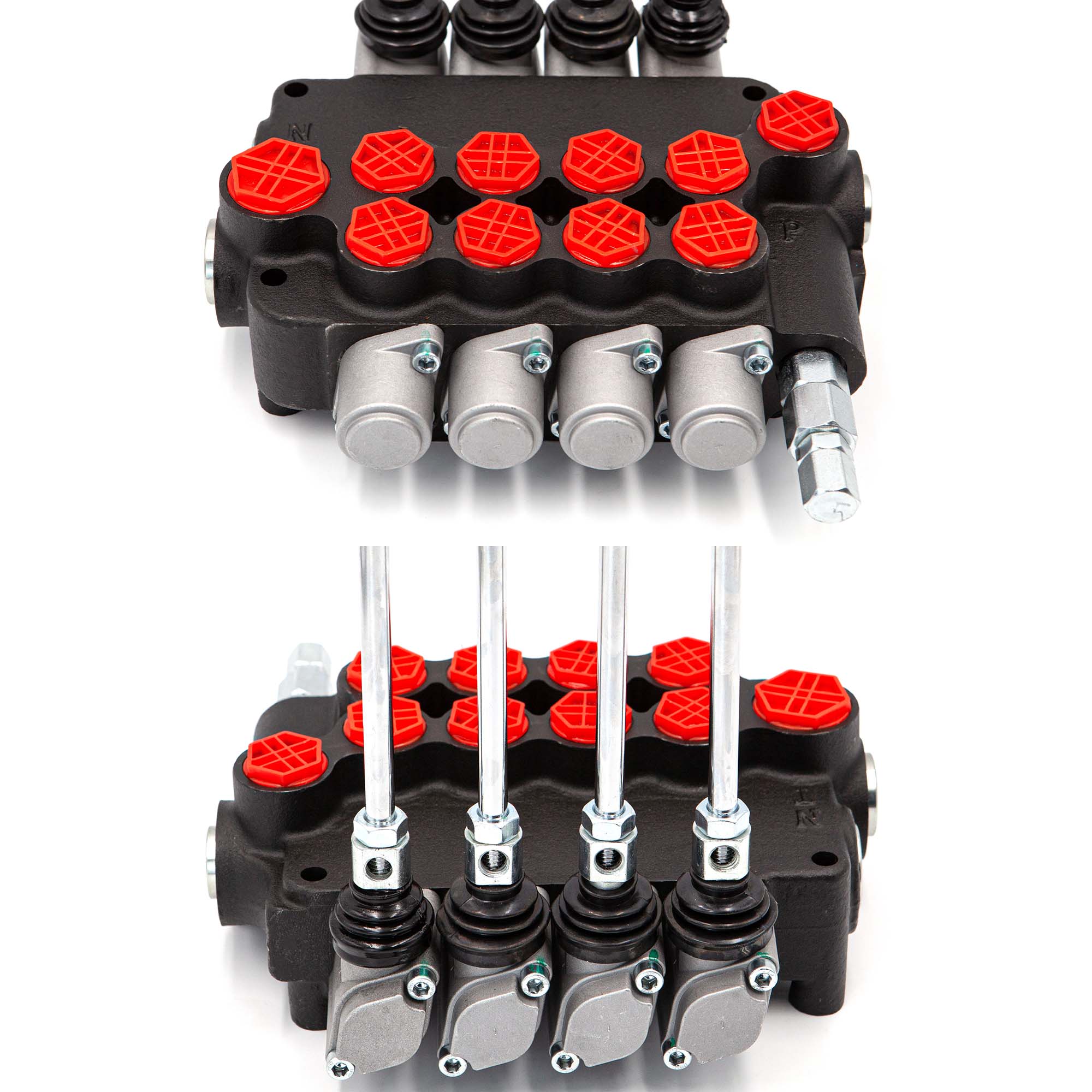

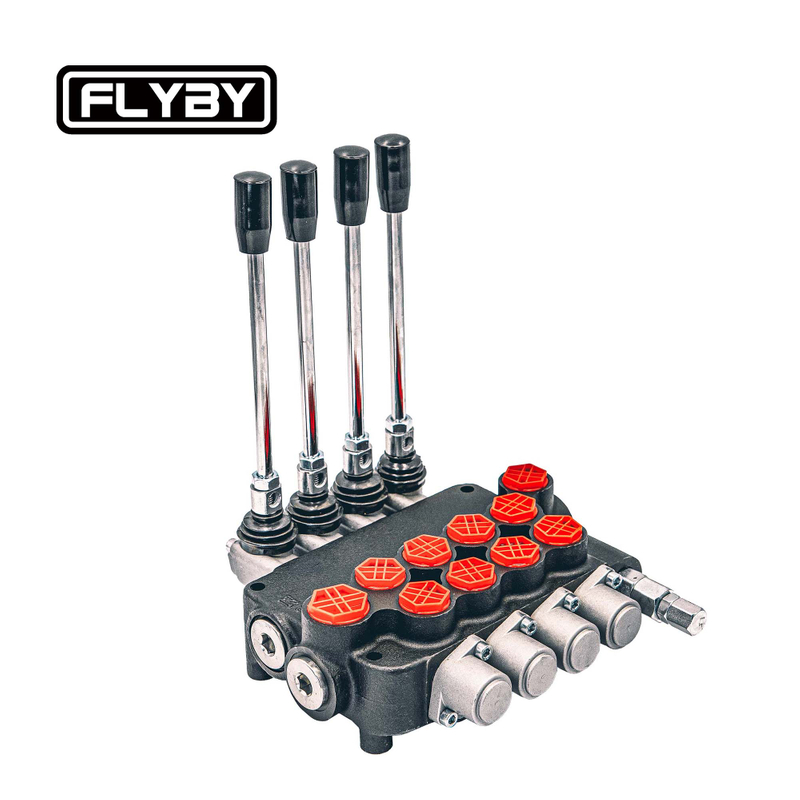

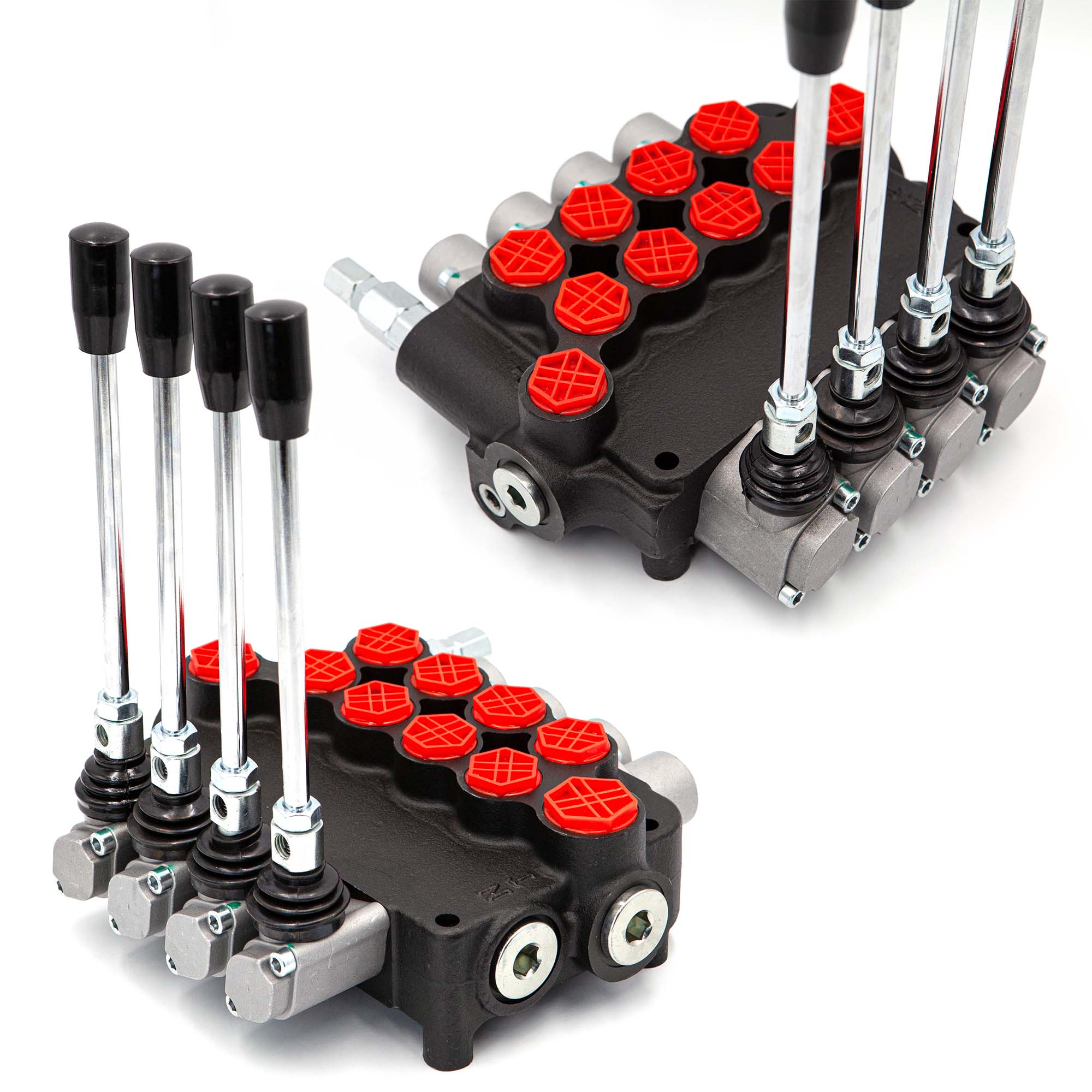

Our P80 manual multi-section directional valve is engineered to excel under extreme pressure. With a rated pressure of 250bar, it surpasses the common industry standard of 210bar, making it the ideal hydraulic control valve for dump trucks and other heavy-duty equipment like loaders and mining machinery. This robust design ensures reliable power output and stable system control even during the most demanding lifting and unloading cycles. The integrated safety and overload valves provide rapid response, minimizing pressure loss and protecting your entire hydraulic system from costly damage, ultimately enhancing operational safety and equipment longevity for your toughest jobs.
Embrace ultimate design flexibility with the innovative modular monoblock valve construction of the P80. You can configure it with 1 to 7 valve sections, creating a custom hydraulic solution tailored to your machine's specific needs. Each section operates independently, enabling precise control of multiple complex functions simultaneously. This modularity simplifies your hydraulic system design and installation, saving time and reducing complexity. It is perfectly suited for engineering machinery requiring coordinated movements, such as cranes and excavators, providing a versatile and scalable control platform.
We understand that control needs vary. The P80 dump truck valve offers multiple actuation methods, including manual control, pneumatic, solenoid, and advanced electro-hydraulic control. This versatility allows you to select the perfect fit, from simple manual operation to seamless integration with modern electronic control systems. The electro-hydraulic control option, in particular, enables smart, remote operation, making it a future-proof choice for automated machinery like intelligent sanitation trucks and unmanned mining equipment, boosting both efficiency and operational safety.
Durability is non-negotiable in harsh working conditions. The P80 valve is built with high-strength materials and precision machining to withstand severe vibration and impact. Its specialized sealing ensures leak-free performance under high pressure. Critically, it functions flawlessly across an extensive working temperature range from -40 to 80°C. This makes our heavy-duty directional control valve exceptionally reliable for equipment operating in extreme climates, from arctic snow plows to high-temperature industrial sites, ensuring consistent performance wherever your work takes you.
Ensure consistent performance despite fluctuating temperatures with the P80's exceptional fluid compatibility. It is designed to operate efficiently with hydraulic oils within a viscosity range of 12 to 400mm²/s. This broad range guarantees stable flow control and reliable valve response, whether starting up in freezing cold mornings or working at peak operational temperatures. This feature is crucial for mobile machinery like road rollers and agricultural equipment, preventing common issues related to fluid viscosity changes and significantly improving system reliability and service life.
