CBCF-C
FLYBY
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Gear pump |
| Model Number | CBCF-C |
| Rated Pressure | 22Mpa |
| Maximum Pressure | 25Mpa |
| Rated Revolutions | 2000r/min |
| Maximum Revolutions | 2500r/min |
| Swept volume | 35 43 63 80 100 110ml/r |
| Port | Sides |
The CBCF-C hydraulic pump stands out with its flexible dual/single rotational direction option. This critical feature for a tipper truck power take-off pump allows it to be seamlessly matched with different PTO rotation directions from various truck models without requiring complex system modifications. This adaptability simplifies inventory management for distributors and provides greater design freedom for OEMs, making it a truly versatile dump truck hydraulic gear pump that reduces overall integration time and cost.
Understanding that dump truck hydraulic systems operate in diverse environments, we offer two premium bearing choices. The needle roller bearing version delivers enhanced contamination resistance, which is crucial for the abrasive conditions found on mining and construction sites. Alternatively, the bush bearing version provides a lower friction coefficient and superior high-speed performance. This allows you to select the perfect heavy-duty hydraulic gear pump configuration for your specific application, optimizing both reliability and operational economy.
The side plates of our side inlet side outlet hydraulic pump are treated with a special copper alloy coating, significantly boosting abrasion resistance and extending service life. Under continuous high-load operations, such as frequent lifting cycles, this technology maintains stable performance and minimizes internal leakage caused by wear. This directly translates to sustained system efficiency, reduced maintenance frequency, and less unplanned downtime, providing a lower total cost of ownership for demanding fleet operators.
Engineered for power, this high-pressure hydraulic gear pump delivers a rated 22MPa and a peak of 25MPa, ensuring ample and consistent power for fast, smooth hoisting even with fully loaded heavy materials. Coupled with a broad operating speed range up to 2500r/min, it offers exceptional compatibility with various engine and PTO combinations. This makes finding the ideal reliable hydraulic pump for mining trucks straightforward, ensuring optimal system matching and efficiency across different vehicle specifications and power system upgrades.
Q: Will this gear pump keep strong lifting power under full load, without slow lifting or pressure loss?A: Absolutely. Our gear pump adopts floating wear plate axial clearance compensation structure. It maintains low internal leakage under continuous high pressure. Even fully loaded with sand, rock and construction waste, your tipper truck can lift steadily without halfway power drop or cargo box slipping.

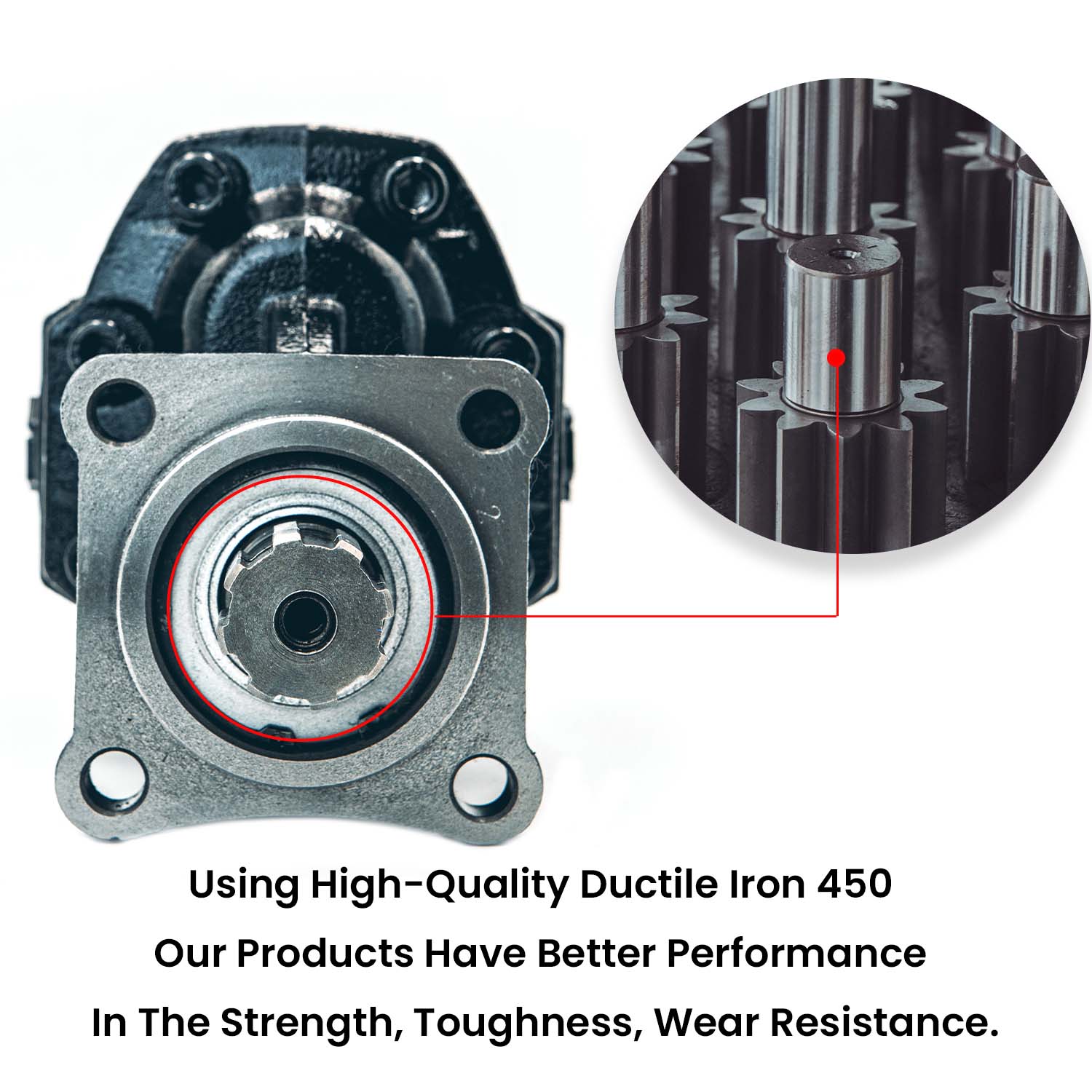

Q: How long is the service life? Can it withstand the harsh working conditions of tipper trucks?A: The pump housing is made of ductile iron, matched with reinforced bearing configuration and precision ground gear pairs. It resists shock load, oil contamination and frequent startup impact. Designed for heavy-duty construction vehicles, greatly reducing frequent replacement downtime and your maintenance costs.
Q: Does this hydraulic gear pump have oil leakage issues at the shaft or joint surfaces?A: We use high-quality wear-resistant shaft seal and reliable static sealing components. The machining precision of mating surfaces is strictly controlled. Effectively avoid shaft end seepage and plane leakage. No more wasted hydraulic oil, chassis pollution and hidden safety troubles caused by oil leaks.
Q: Can this pump directly replace mainstream hydraulic pumps on the market? Is installation complicated?A: Standard flange, spline shaft and oil port dimensions are compatible with mainstream tipper hydraulic pumps in the market. Direct replacement without modifying pipelines or brackets. Save your installation labor time and realize quick on-site replacement.
Q: Is the built-in relief valve reliable? Will it damage my hydraulic cylinder and pipelines?A: The integrated overflow safety valve features sensitive and stable pressure regulation. Once the hydraulic system reaches the set pressure, it will release pressure in time. It prevents system overpressure, effectively protecting your lifting cylinder, hoses and the whole hydraulic system from burst damage.
