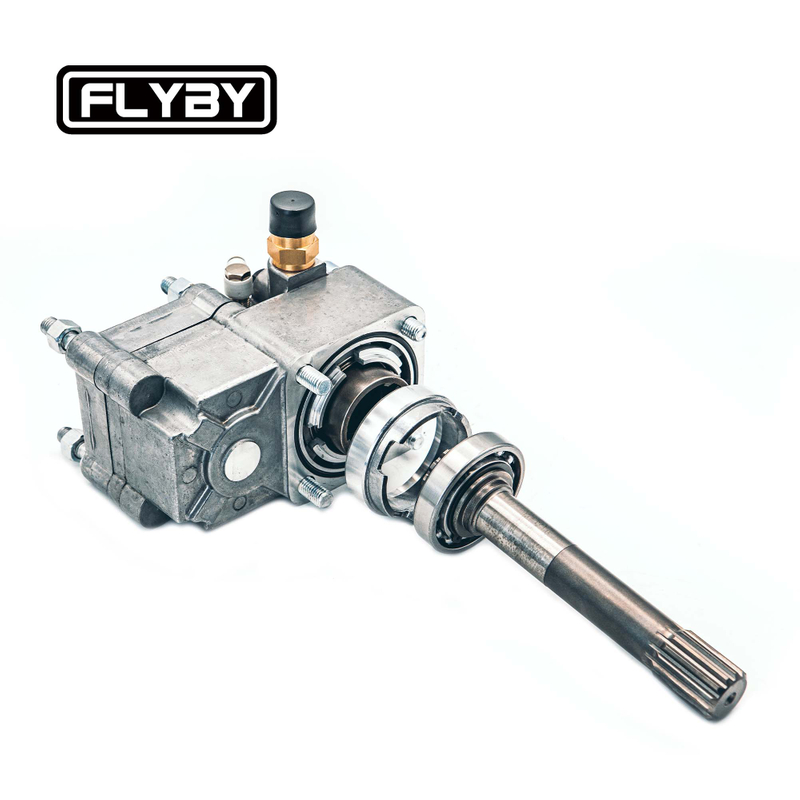

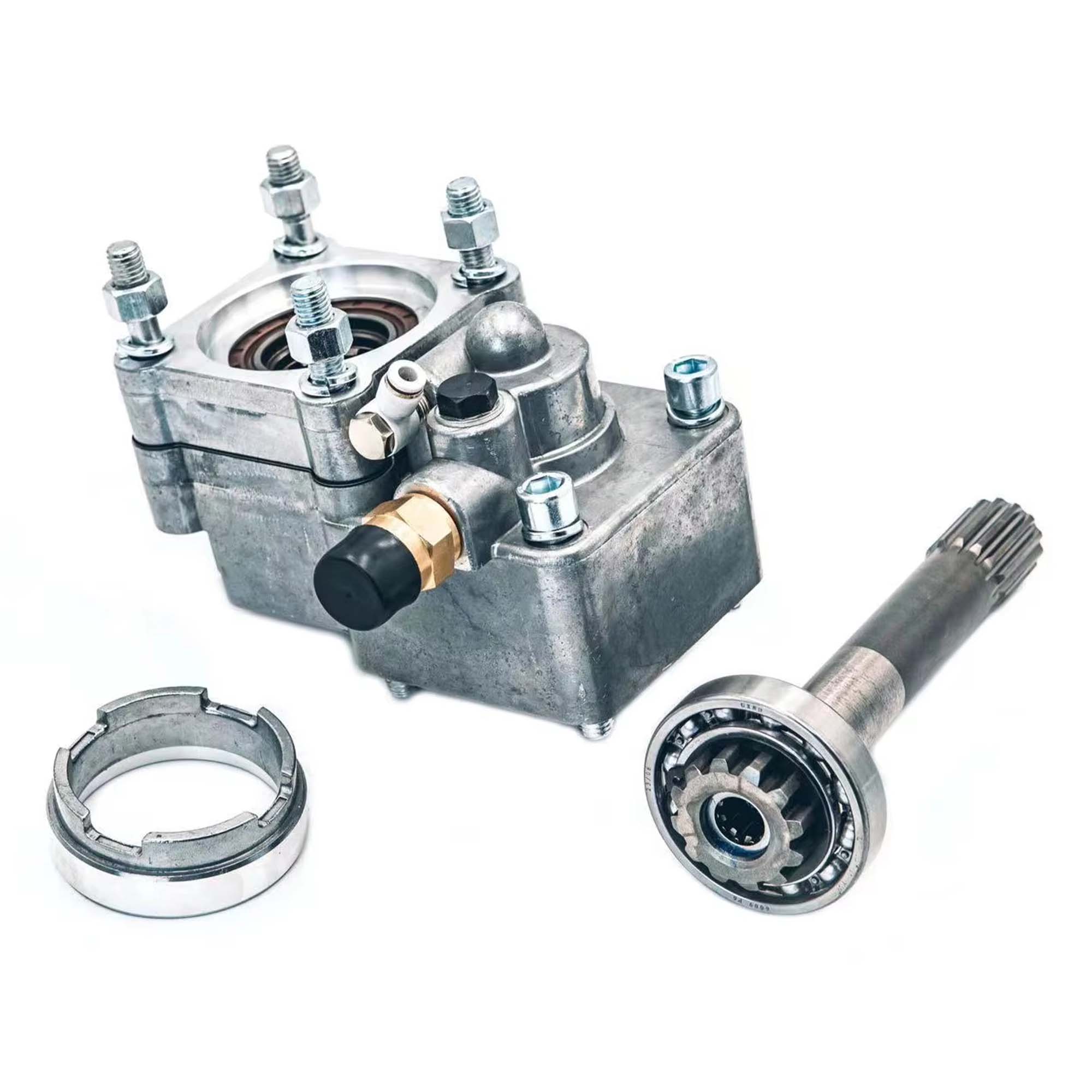

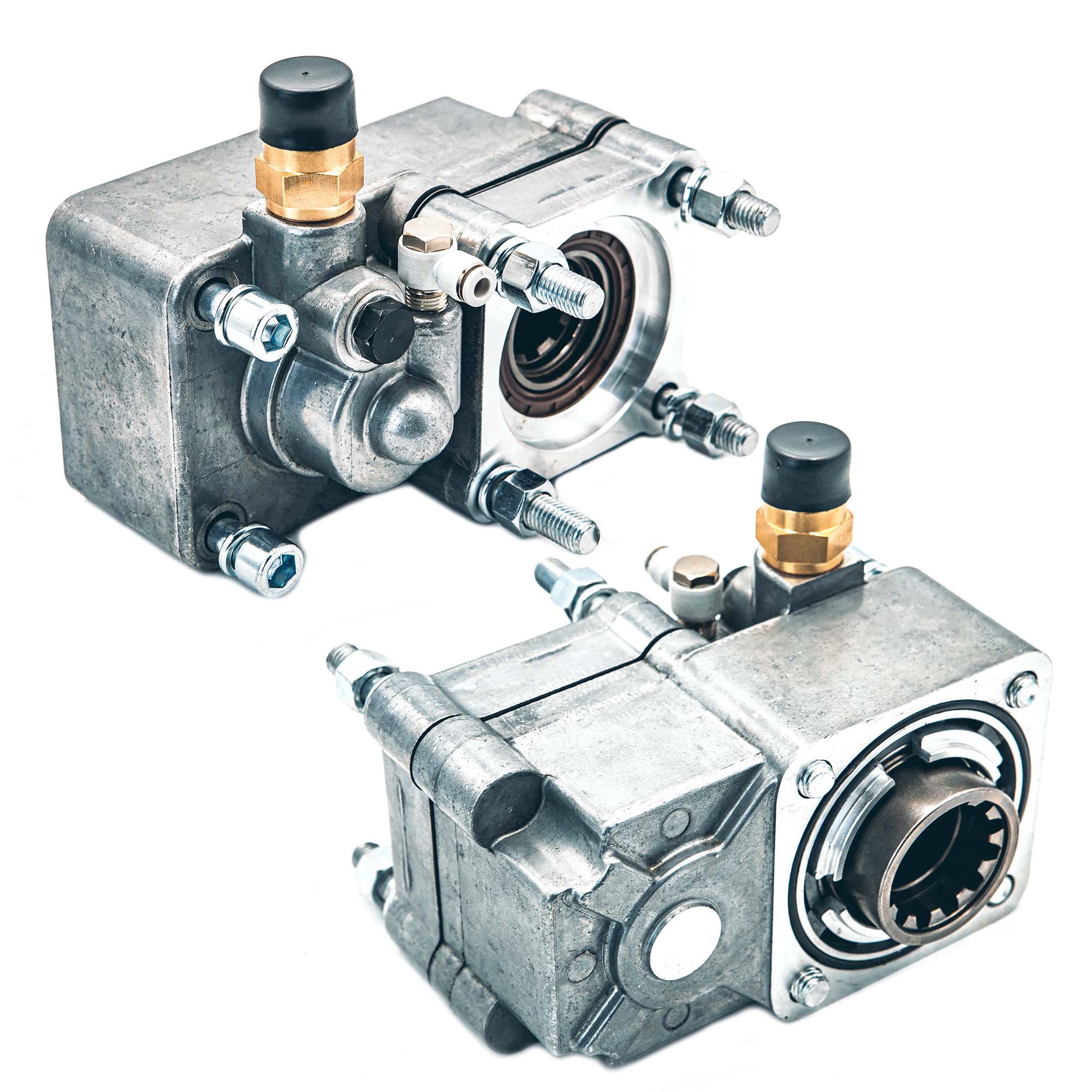

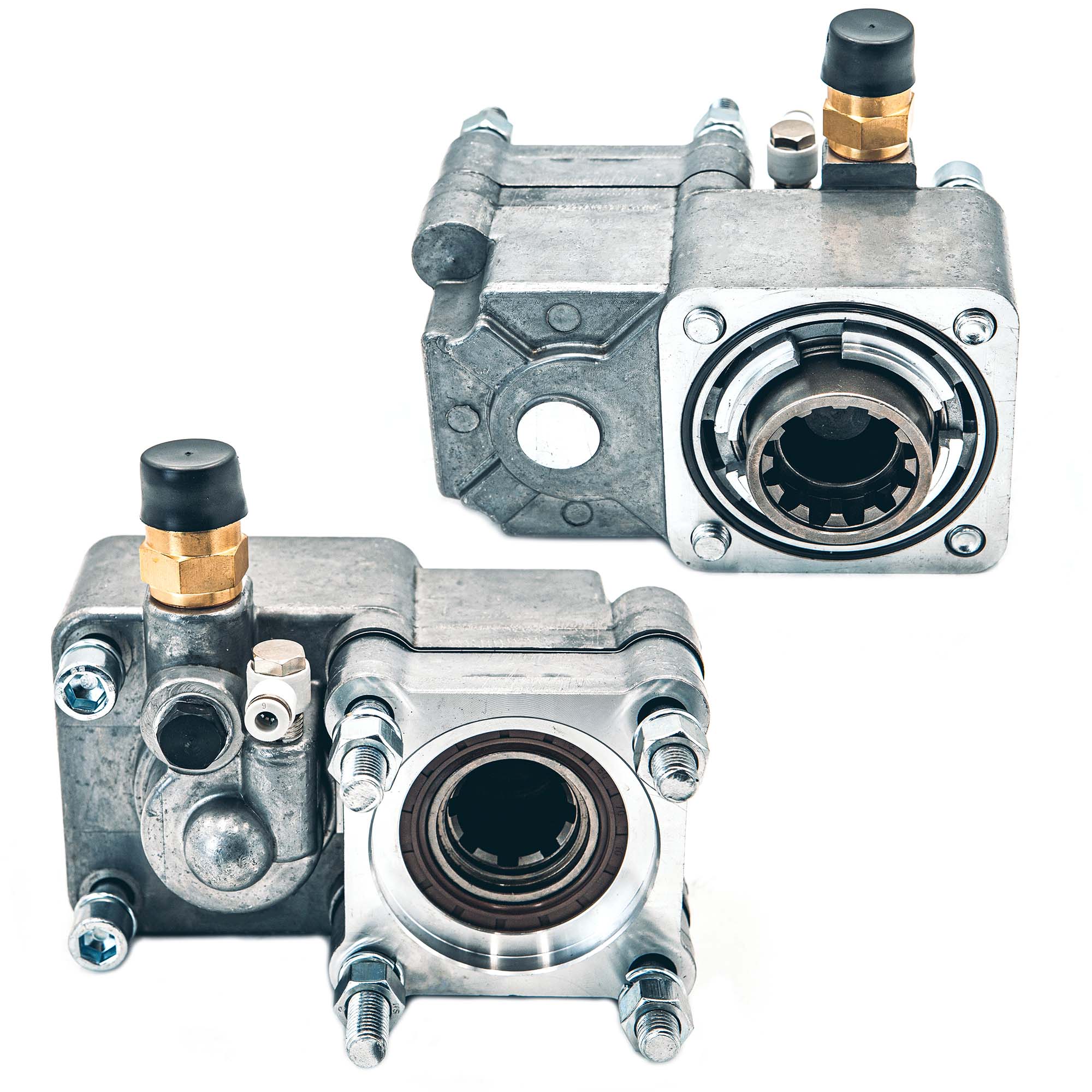

50E1650
FLYBY
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | POWER TAKE OFF PTO |
| Model Number | 50E1650 |
| Output direction | Opposite to the engine |
| Speed ratio | 0.83 |
| Output Torque | 300Nm |
| Compatible Models | Compatible for ZF16 gear or Shanghai Soda series gearbox ZF16R1650 ZF16S2530 12S0B1850 16SOK2250, etc |
1. Space-Saving Reverse Rotation for Compact Installations
The Model 50E1650's defining feature is its reverse rotation PTO design, which outputs power in the opposite direction to the engine. This is a game-changer for compact PTO for special vehicles with cramped chassis compartments. The 90-degree angular drive structure significantly reduces the axial installation length, saving up to 40% of valuable space compared to conventional inline PTOs. This allows for unprecedented flexibility in hydraulic system layout, enabling cleaner hose routing and easier component placement. For equipment integrators working on fire trucks, aerial lifts, and other complex vocational trucks, this innovative design solves the perennial challenge of finding room for a robust power take-off, turning a spatial constraint into a design advantage.
2. Broad Compatibility for Simplified Fleet Management
Embrace the efficiency of standardization with this multi-model PTO for vocational trucks. Its modular design, utilizing interchangeable input flanges, allows it to seamlessly adapt to a wide range of transmission models from major series. This versatility drastically reduces the complexity and cost associated with managing an inventory of multiple, model-specific PTOs. An integrated adaptive torque management system automatically fine-tunes performance to match different transmission outputs, ensuring plug-and-play operation without the need for time-consuming additional calibration. This streamlined approach is ideal for rental companies and large fleets that operate a diverse mix of truck brands and models, simplifying maintenance and procurement.
3. Optimized Power Transfer for Enhanced Fuel Economy
Engineered for intelligent performance, the Model 50E1650 delivers both power and efficiency. Its 0.83 reduction ratio is optimized to provide strong torque while maintaining high operational economy. Through precision gearing and manufacturing, it achieves a 98% power transfer efficiency, reducing energy consumption by 5% compared to standard reverse-rotation PTOs. Its full 300Nm torque is available within the standard economical engine speed range (1200-1800 rpm), ensuring responsive performance for medium-duty applications. This makes it a fuel-efficient reverse PTO perfect for municipal and refuse trucks, potentially saving over 1800 liters of fuel annually and lowering your total cost of ownership.
4. Lightweight Yet Robust Construction for Demanding Duty
The 50E1650 masterfully balances strength with weight savings. Its construction combines a high-strength alloy steel gearset with a durable aluminum housing, resulting in a total weight of just 25kg—20% lighter than comparable units. The gears undergo carburizing and quenching, achieving a surface hardness of HRC58-62 for exceptional wear resistance and the ability to withstand instantaneous shock loads up to 1500Nm. This lightweight PTO for municipal vehicles proves that robust performance does not require a heavy footprint. It contributes to better fuel efficiency and payload capacity while delivering the unwavering reliability required for daily grueling operations.
5. Intelligent Clutch Control for the Modern Connected Fleet
Step up to smart, responsive control with an electro-hydraulic clutch system that reduces engagement time to a swift 0.2 seconds, boosting work efficiency by 15%. Beyond speed, this system enables predictive maintenance for truck PTO through integrated temperature and oil pressure sensors. Data can be relayed via the CAN bus to the vehicle's telematics system, allowing fleet managers to monitor PTO health in real-time and schedule maintenance proactively. This smart functionality is essential for modern, digitally-managed fleets aiming to maximize vehicle uptime, prevent unexpected failures, and optimize their maintenance schedules for lower long-term operating costs.
6. Versatile Power Source for Diverse Specialized Equipment
The utility of the 50E1650 extends far beyond standard applications, establishing it as a versatile PTO for municipal vehicles and other specialized equipment. It is an ideal power source for fire trucks to run pumps, for concrete pump trucks to operate booms, and for aerial work platforms to power hydraulic lifts. Its adaptable design allows for different output flangs to connect to various hydraulic pumps, enabling multiple functions from high-pressure washing to lifting and mixing. This PTO for multi-function vocational trucks offers a single, compact, and reliable power solution that reduces inventory complexity for fleets and body builders serving the demanding municipal, emergency response, and construction sectors. Contact us today to engineer the perfect power solution for your specialized vehicle.
