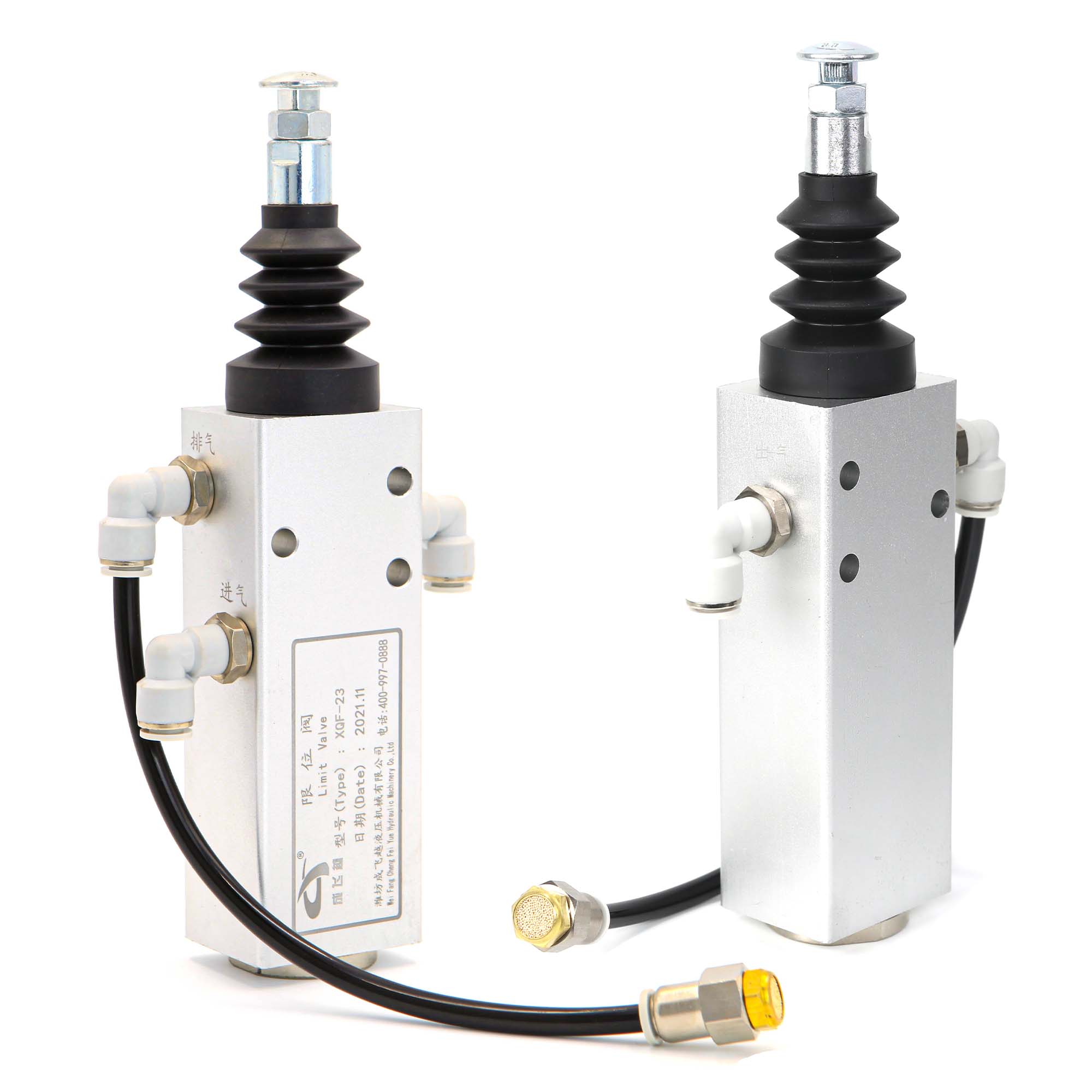

XQF-23
FLYBY
| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Knock-off valve |
| Model Number | XQF-23 |
| Total range | 24mm |
| Adjustable range | 15mm |
| Pneumatic control range | 0.6~1.2Mpa |
The XQF-23 knock-off valve for dump trucks is engineered to automatically shut off the pneumatic signal once the hydraulic cylinder reaches its maximum extended position. This eliminates the risk of over-lifting, which can cause cylinder detachment, oil leaks, or structural damage. By ensuring the cylinder stops precisely at the top position, this over-lifting protection valve for tipper trucks greatly enhances operational safety and reduces expensive repair costs and vehicle downtime.
With an adjustable range of 15mm and a total stroke of 24mm, this valve offers fine-tuning capability to match different cylinder lengths and tipping body designs. This flexibility allows it to be used across a wide range of dump truck models and configurations, providing accurate height control for hydraulic cylinders and ensuring reliable performance in various unloading scenarios.
Operating within a pneumatic control range of 0.6~1.2 MPa, this valve is built for the demanding conditions of construction and mining environments. Its robust design ensures consistent performance and longevity, even with frequent use. This makes it a high-pressure limit valve for heavy-duty applications that users can depend on for day-to-day safety and efficiency.
Featuring a compact three-hole mounting design, the valve can be quickly and securely installed without complex modifications. This simplified installation process reduces labor time and cost. Its standard pneumatic interface ensures seamless integration with most dump truck pneumatic systems, making it a versatile solution for both existing and new vehicles.
By preventing over-lifting incidents, the valve helps avoid damage to the cylinder, pump, and hydraulic piping, thereby lowering maintenance and replacement costs. It serves as an essential safety valve for tipper truck hydraulic systems, protecting both the operator and the vehicle. This proactive protection is invaluable for fleet managers focused on minimizing risks and maximizing uptime.
