Selecting the right lifting mechanism goes far beyond standard component purchasing. It demands precise system integration. Fleet engineers and procurement teams know this reality well. Mismatched components cause severe operational failures. Excessive chassis stress accelerates frame cracking over time. Improper geometry leads to dangerous hydraulic stalling during the initial lift phase. Worse, unstable tipping creates critical rollover risks on uneven job sites. This compromises safety and leads to highly inefficient material discharge.
You need a concrete framework to prevent these costly engineering errors. This technical guide provides exact methods for calculating, evaluating, and specifying the correct cylinder. We will explore chassis dimensions, load requirements, and hydraulic system matching. You will learn how to optimize lift performance while maintaining strict structural safety. By the end of this guide, you will understand how to align your vehicle design requirements perfectly.
Geometry dictates capacity: The distance between the body hinge and the cylinder mounting point fundamentally alters the required lifting force.
Angle defines stroke: A standard tipping angle of 45° to 52° is required for efficient discharge, directly dictating the necessary cylinder stroke length.
Pressure vs. Volume: Optimal selection requires balancing bore size (lifting force) with pump flow rates (cycle time) to prevent system overheating.
Application determines mounting: Front-mount telescopic designs suit heavy, long-chassis setups (e.g., 8x4 trucks), while underbody mounts are preferred for shorter wheelbases needing enhanced stability.
The mechanical relationship between your chassis components determines how effectively a truck unloads. We call this relationship the lift triangle. It consists of three primary points. First is the rear pivot hinge. Second is the cylinder base mount on the chassis. Third is the rod attachment point on the dump body. Changing any single point alters the entire lifting dynamic. Proper cylinder mounting geometry ensures smooth operation from flat bed to full extension.
Breakaway force represents the maximum energy required to initiate a lift. When a truck bed sits flat, the hydraulic angle of attack remains extremely shallow. The pump must generate massive pressure to overcome static inertia. Moving the cylinder mount closer to the rear hinge reduces the required stroke length. However, this exponentially increases the required initial lifting force. If you position the mount too far back, the required pressure will exceed system capabilities. This causes immediate pump stall.
Improper installation angles create hazardous mechanical dead zones. A dead angle occurs when the initial hydraulic thrust pushes horizontally. The force drives directly into the rear hinge rather than pushing vertically to lift the load. This horizontal stress bends pivot pins and fractures hinge brackets. To prevent this, engineers must ensure a minimum upward angle geometry. The initial push must direct enough vertical vector force to clear the chassis rails safely.
Different payloads demand different discharge angles based on their natural angle of repose. Dry sand flows easily and typically requires only a 35-degree tilt. In contrast, wet clay sticks to steel and aluminum surfaces. Discharging wet clay safely requires an angle up to 52 degrees. Your chosen geometry must support your maximum required angle safely. Attempting to push past a hinge's natural geometric limit will tear the mounts off the chassis.
Common Mistake: Do not guess the required angle. Always design for the most cohesive material your fleet transports. A system built only for dry gravel will fail miserably when hauling wet topsoil.
Selecting the proper architecture dictates vehicle stability and structural longevity. Engineers primarily choose between two distinct mounting configurations. Each offers unique mechanical advantages based on wheelbase length and payload density. Finding the best dump truck lift cylinder requires matching the design to the operational environment.

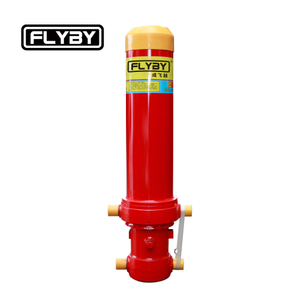

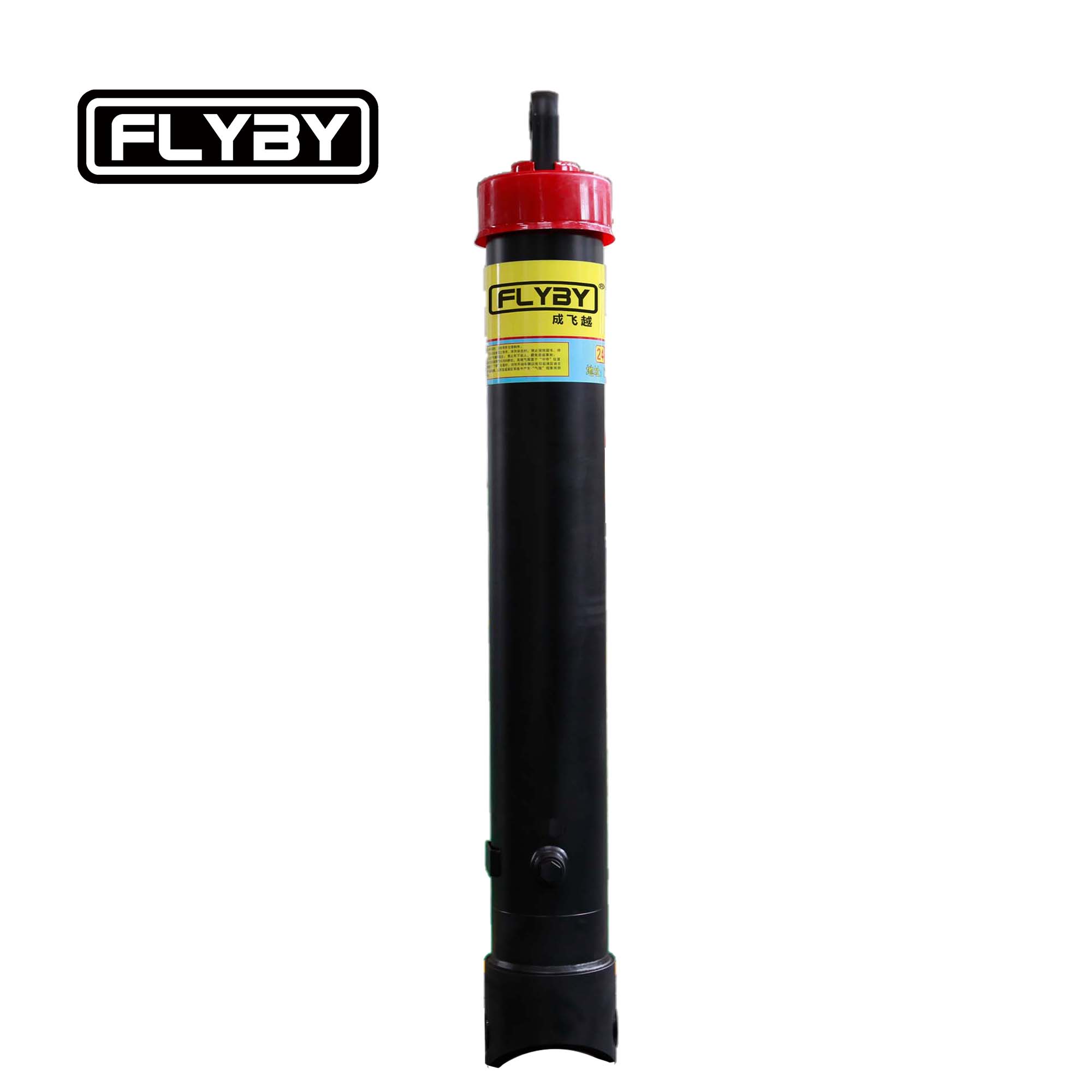

Front-mount systems attach to the very front of the dump body. They sit directly behind the truck cab.
Best use case: Long body lengths and heavy-duty applications like standard tippers or multi-axle trailers.
Advantages: This design provides direct vertical lift. Direct lifting reduces structural bending stress on the dump body framework. They offer much longer stroke capabilities. Front mounts generally operate at lower hydraulic pressures because they utilize the entire length of the bed as a lever.
Limitations: They consume valuable frame space directly behind the cab. More importantly, they remain highly susceptible to side-loading. If a driver parks on uneven ground, the extended telescopic sleeves can bend under lateral shifting.
Underbody mounts sit completely beneath the truck bed. They often utilize a scissor mechanism to multiply mechanical advantage.
Best use case: Short wheelbases, maneuverability-focused vehicles, and scenarios requiring a significantly lower center of gravity.
Advantages: Scissor mounts offer exceptional torsional stability. They resist side-loads much better than front-mounts. The underbody placement protects the cylinder rod from falling debris during loading. They also maximize cab-to-axle space utilization.
Limitations: These units are highly demanding on the hydraulic system at the start of the cycle. They also restrict overall body length compatibility due to stroke limitations.
Evaluate your fleet operations using the comparison chart below. Consider payload density and job site terrain before making a final specification.
Dump Cylinder Architecture Comparison Matrix
Feature Focus | Front-Mount Telescopic | Underbody Scissor Mount |
|---|---|---|
Ideal Body Length | Long (14 ft to 24+ ft) | Short (8 ft to 14 ft) |
Operating Pressure | Generally Lower (2,000 - 2,500 PSI) | Generally Higher (3,000+ PSI at start) |
Stability on Uneven Ground | Low (Prone to side-loading) | High (Resists torsional twist) |
Space Requirements | Requires cab gap clearance | Frees up space behind cab |
Precise mathematical calculations separate successful builds from dangerous failures. You cannot simply install the largest available unit. You must engineer the exact stroke and bore dimensions based on payload weight. Specifying your dump body lift cylinder requires applying basic trigonometry and fluid dynamics.
Determining the exact stroke length relies on the Law of Cosines. This trigonometric application plots the distance between your mounting points as they move through an arc.
Measure the horizontal distance from the rear pivot hinge to the lower mounting bracket.
Measure the distance from the rear pivot hinge to the upper rod attachment point.
Define your target tipping angle (e.g., 50 degrees).
Apply the formula to calculate the straight-line distance between the two mounts at full tilt.
Subtract the closed, retracted length of the cylinder. The remaining value is your exact required stroke.
Always factor in mounting overhang. A miscalculation here means the bed will stop short of the required angle. Conversely, over-extending past the hinge geometry will destroy the framework.
Bore diameter dictates pure lifting capacity. A larger bore generates more force at a given pressure. First, you must calculate the absolute maximum total lift weight. Combine the maximum payload capacity and the dry weight of the dump body. Finally, add a strict 15 percent safety factor to account for dynamic loads and wet materials.
Apply the fundamental hydraulic formula: Force equals Pressure multiplied by Area. Calculate the internal area of the bore. Multiply this area by your system's operating pressure. Ensure the resulting force exceeds your total calculated lift weight by a comfortable margin.

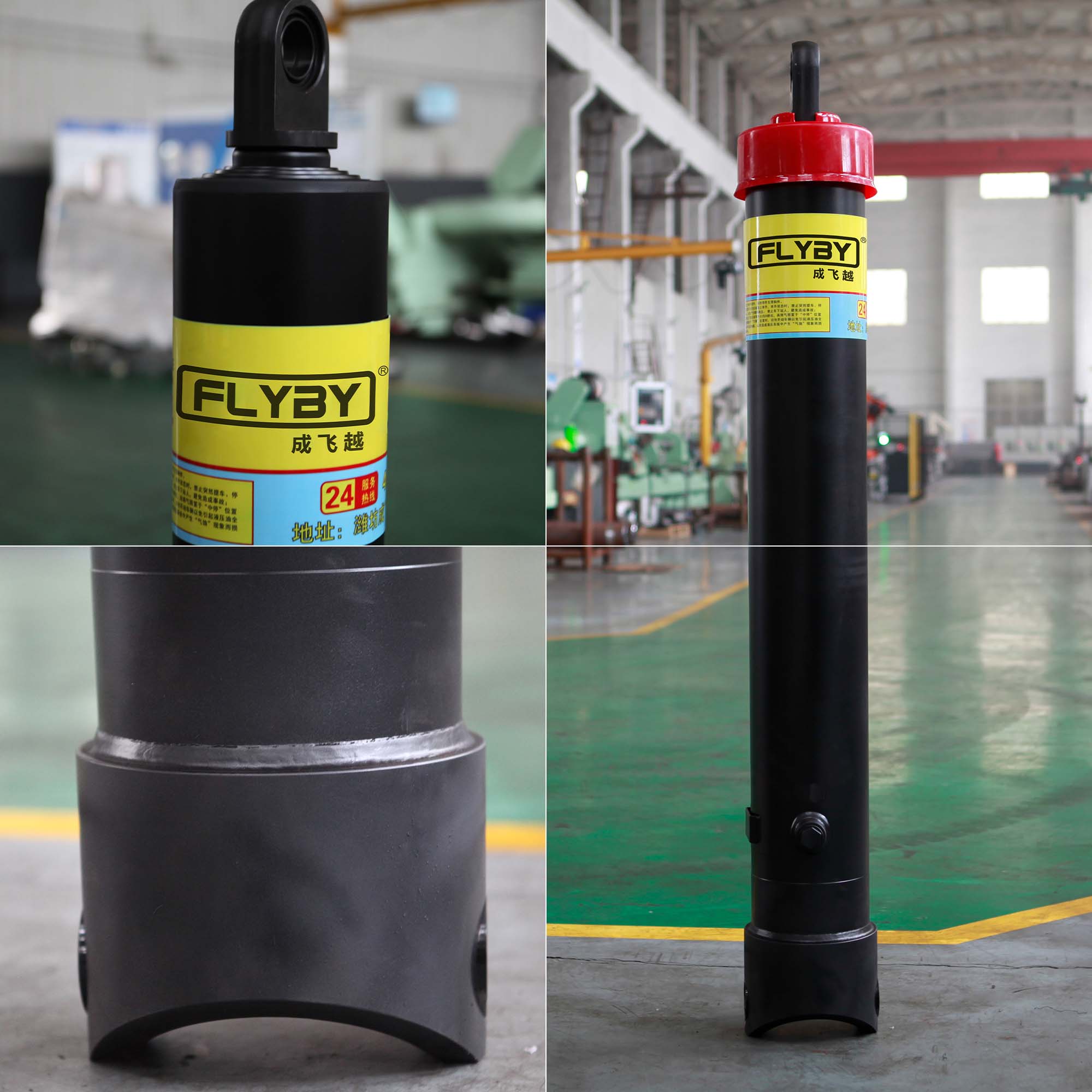

Multi-stage telescopic designs introduce a unique variable. They lose lifting force as they extend. The initial base stage has the largest diameter. It handles the immense breakaway force required to lift the flat bed. As hydraulic fluid pushes the next sleeve out, the effective bore diameter decreases. The final, smallest stage extends last. This final stage must retain enough internal area to support the load at the maximum angle. Never base your total load calculations solely on the base stage diameter.
A cylinder operates as just one half of a hydraulic circuit. The pump and reservoir form the other half. Specifying a brilliant mechanical component means nothing if your existing fluid power system cannot drive it. Integrating a hydraulic cylinder for tipper truck requires auditing your vehicle's pump capacities.
Modern fleet systems operate at drastically different pressures. Older or standard commercial systems often generate 2,000 PSI. Newer, heavy-duty vocational trucks frequently push 3,000 PSI or higher. Choosing a smaller bore saves chassis weight. However, it requires much higher system pressure to lift the same payload. If you install a small-bore unit on a 2,000 PSI truck, the pump will hit the relief valve long before the bed lifts. Always verify your Power Take-Off (PTO) and pump pressure ratings before sizing the bore.
Volume matters just as much as pressure. Pump flow rate measures how much fluid moves per minute (GPM or LPM). The total internal volume of your cylinder dictates the required flow. Cycle time represents how long it takes to fully extend and retract the bed.
Many procurement teams make the mistake of buying oversized units. If you pair a massive internal volume with a low-flow pump, you get unacceptably slow unloading cycle times. Slow cycles ruin job site productivity. Furthermore, forcing a small pump to run continuously at maximum RPM to fill a giant void generates severe heat. System overheating destroys seals and degrades oil viscosity rapidly.
Your hydraulic tank must hold enough usable fluid to support full extension. When a multi-stage unit extends entirely, it consumes gallons of oil. If your reservoir is too small, the fluid level drops below the suction port. The pump will then draw ambient air into the system. Aeration causes pump cavitation. Cavitation sounds like marbles rattling inside the pump casing. It will destroy the internal gears in a matter of minutes. Ensure the tank capacity exceeds the total cylinder volume by at least 20 percent.
Procurement goes beyond comparing spec sheets. You must evaluate the manufacturing methods and supplier reliability. High-quality materials prevent premature failure in harsh environments. When you finally specify your dump truck hydraulic cylinder, look for clear indicators of engineering excellence.
Focus heavily on rod surface treatments. Standard hard-chrome plating resists scratches well. However, chrome can micro-crack under heavy flex, allowing moisture to penetrate. Liquid nitriding provides superior corrosion resistance. It alters the surface chemistry of the steel, preventing rust from forming beneath the finish. Examine the seal specifications closely. Insist on high-grade polyurethane seals. Polyurethane withstands extreme operating temperature ranges and resists degradation from contaminated oil.
Never accept a component based on a generic brochure. Demand specific engineering documentation from your vendor. Request comprehensive lifting load charts. These charts must prove the unit can handle your payload across every extension stage. Ask for 3D CAD models. Your engineers can drop these models into their chassis software to run structural interference checks.
Review warranty terms regarding side-loading failures. Most manufacturers void warranties if a unit bends due to off-center loads. Find a vendor who clearly defines maximum allowable lateral deflection. Transparent engineering data signifies a trustworthy manufacturing partner.
Best Practice: Always request material certifications for the steel tubing. High-tensile steel prevents the outer barrel from ballooning under extreme pressure spikes during sudden load shifts.
Successful integration requires strict alignment between the dump body's geometry, the target tipping angle, and the hydraulic system's pressure capabilities. You cannot isolate these variables. A minor change in mounting leverage drastically alters pump flow requirements and breakaway force. Engineering these systems demands precision and a comprehensive understanding of fluid dynamics.
Over-specifying adds unnecessary chassis weight and slows down cycle times. Under-specifying invites catastrophic structural failure and extreme safety hazards on the job site. Both errors carry heavy financial risks for your fleet operations. Measure your pivot distances accurately, calculate your payload factors strictly, and match your pump capacities perfectly.
We strongly encourage readers to consult with a dedicated hydraulic engineering specialist before finalizing any procurement. Utilize technical sizing calculators to verify your trigonometric math. Prioritize structural safety and system harmony to guarantee long-term operational success.
A: You determine the angle based on the material's natural angle of repose. Dry, loose materials like gravel or sand typically require a 35 to 40-degree angle to slide out. Sticky, cohesive materials like wet topsoil or clay demand steeper angles, often up to 52 degrees, to break suction and discharge fully.
A: Doing this without modifying chassis geometry carries extreme risks. Over-extending pushes the dump body past its engineered rear hinge limits. This causes severe structural damage, tears pivot brackets, and shifts the center of gravity dangerously backward. It massively increases tip-over risks.
A: This indicates insufficient breakaway force. When the bed sits flat, the mechanical leverage is extremely poor. The hydraulic system must push hardest here. If your mounting geometry is too flat, or your bore size is too small for the payload, the pump strains against static inertia.
A: Single-acting units use hydraulic pressure to lift the bed and rely entirely on gravity and load weight to lower it back down. Most standard tippers use this design. Double-acting units use hydraulic pressure for both lifting and powered retraction. They are used in specialized applications requiring forced pull-down.
