A Hydraulic Joystick Valve is a pivotal control component found in modern hydraulic systems that require intuitive and precise manipulation of fluid power. Widely used in construction machinery, industrial vehicles, and material‑handling equipment, the hydraulic joystick valve empowers operators to control multiple hydraulic functions comfortably using a single ergonomic lever. From loaders and cranes to dump truck applications, this valve plays a crucial role in directing hydraulic flow with accuracy and responsiveness.
This guide explains the design, working principles, key specifications, different control methods, and common applications of the Hydraulic Joystick Valve. It also highlights how this valve compares with other control solutions such as pneumatic systems and illustrates its role in heavy‑duty operations.
A Hydraulic Joystick Valve is a specialized form of hydraulic control valve that incorporates a joystick‑style lever mechanism to manage the direction and flow of hydraulic fluid. Unlike basic directional valves that may use simple levers or pushbuttons, a joystick valve integrates multiple flow paths and control axes into one intuitive control interface.
Hydraulic joystick valves operate on principles similar to many Directional Control Valve designs: they contain internal passageways and pistons that route pressurized fluid to various actuators based on joystick movement. However, joystick valves are designed to provide enhanced human interface and ergonomic control for complex multi‑axis hydraulic tasks.
A typical Hydraulic Joystick Valve consists of several integral elements that work together to translate operator input into controlled hydraulic motion:
Component | Function |
|---|---|
Joystick Lever | Provides ergonomic input from the operator to direct system flow. |
Valve Sections | Internal flow control sections that route pressure or return lines. |
Pistons or Spools | Move according to joystick displacement to connect or block passages. |
Ports | Hydraulic inlet and outlet points connecting to pumps and actuators. |
Actuation Mechanism | May be manual, electro‑hydraulic, or pilot‑assisted for different control styles. |
Seals and Housing | Provide pressure containment and protect moving parts. |
This construction allows the Hydraulic Joystick Valve to handle multi‑directional control functions while maintaining reliability under heavy loads and high pressure, typical for mobile and industrial applications.
The core principle behind a Hydraulic Joystick Valve is to allow the operator to direct hydraulic fluid flow simply by moving the joystick in one or more directions. In a basic configuration:
Neutral Position: The joystick remains centered, and hydraulic fluid either recirculates or remains idle.
Forward Movement: Pushing the joystick forward sends pressurized fluid to extend a hydraulic cylinder or move an actuator.
Backward Movement: Pulling backward diverts fluid to return the cylinder or retract the actuator.
Some valves offer additional directional control such as left/right motion for complex multi‑function tasks, making them ideal for machinery where multiple axes of movement are required.
Advanced configurations may incorporate spring‑loaded designs that automatically return the joystick to neutral when released, or they may use pilot‑assisted and solenoid actuated mechanisms to allow electrical or remote control alongside manual operation.
Although both hydraulic joystick valves and pneumatic control valves are used to control mechanical systems, their working mediums and typical performance characteristics differ:
Feature | Hydraulic Joystick Valve | Pneumatic Control Valve |
|---|---|---|
Control Medium | Hydraulic fluid | Compressed air |
Precision | High (smooth variable flow and force) | Moderate (fast response with less force precision) |
Typical Use | Heavy machinery and load‑bearing systems | Cab control interfaces, lighter actuation |
Force Capability | High pressure, large loads | Lower pressure relative to hydraulics |
Operator Effort | Direct hydraulic flow control via lever | Air pressure actuated control interface |
Application Example | Loader arms, lifting cylinders | Cab actuator pneumatic interface for trucks |

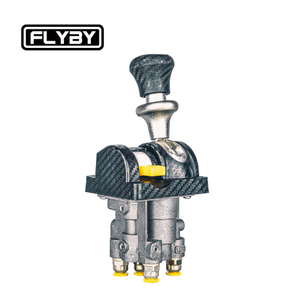

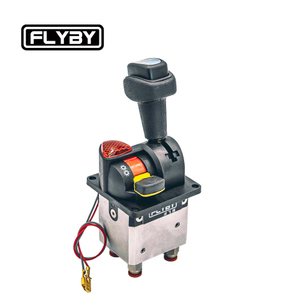

A Pneumatic Control Valve used in applications like dump truck cab controls utilizes compressed air to shift hydraulic control circuits. These systems can reduce operator fatigue by replacing manual linkage effort with air‑assisted movement, making the interface easier to operate over long work cycles.
Hydraulic joystick valves can operate in a variety of modes and configurations depending on system complexity and operator needs:
Operators directly move the joystick lever to open or close internal passages. This traditional method is simple and cost‑effective for systems requiring frequent human intervention.
By combining joystick mechanics with electrical or solenoid actuation, systems achieve remote or automated control that improves precision and flexibility for complex tasks.
Multiple hydraulic joystick valves can be combined into modular valve blocks, allowing operators to control several hydraulic functions simultaneously from a single control station. This is especially useful in vehicles like loaders, cranes, or other multi‑function equipment.
Choosing the right Hydraulic Joystick Valve depends on several technical factors. The most important specifications to consider include:
Specification | Why It Matters |
|---|---|
Flow Capacity (LPM / GPM) | Determines how much fluid the valve can handle, affecting actuator speed. |
Operating Pressure Range | Ensures the valve can withstand system loads without failure. |
Number of Functions | Defines how many hydraulic actuators or circuits the valve can control. |
Control Actuation Type | Compares manual vs. electro‑hydraulic for responsiveness and ease of use. |
Temperature and Fluid Compatibility | Affects durability and reliability in diverse working conditions. |
Mounting and Port Size | Determines system integration and installation ease. |
These parameters help engineers and operators ensure the chosen joystick valve matches the overall hydraulic system performance and durability requirements.
Hydraulic joystick valves are used in any system where precise multi‑directional control of hydraulic fluid is needed. Key applications include:
Loaders, excavators, and cranes use joystick valves to control arm movements, bucket function, and auxiliary equipment with fluid precision.
Automation systems and industrial presses often rely on joystick valves for operator‑controlled directional and flow adjustments.
Tractors and harvesters may use joystick valve systems to operate attachments and hydraulic implements for a variety of field operations.
In dump truck hydraulic systems, joystick valves or related control valves guide pressurized fluid to lift and lower cylinders, ensuring smooth and controlled dumping operations.
Hydraulic joystick valves offer several benefits that make them ideal for demanding hydraulic applications:
Intuitive Control: One‑handed lever movements translate directly into precise hydraulic actions.
Compact Multi‑Function Capability: Multiple flow paths and circuits can be controlled from a single joystick.
High Pressure Handling: Designed to carry and control high‑pressure fluid flows without leakage or performance loss.
Scalable to System Needs: From simple two‑function valves to complex multi‑section arrays, joystick valves can expand with application requirements.
To maintain reliable performance from a Hydraulic Joystick Valve:
Keep hydraulic fluid clean and free from contamination.
Periodically inspect seals and moving components for wear.
Confirm proper compatibility of hydraulic fluid viscosity and operating temperature range.
Check linkage and remote actuation systems for proper movement and response.
These practices help extend valve life, reduce downtime, and ensure consistent control performance in demanding environments.
1. What is the difference between a hydraulic joystick valve and a typical directional control valve?
A hydraulic joystick valve integrates multi‑directional control into an ergonomic lever interface and often supports multiple functions, whereas a typical directional control valve may use simpler levers or buttons and focus on fewer flow paths.
2. Can hydraulic joystick valves be integrated with electronic controls?
Yes, many modern joystick valve systems offer electro‑hydraulic actuation options using solenoids or control modules for remote and automated control.
3. How many functions can a hydraulic joystick valve control?
Depending on design, a joystick valve can control multiple hydraulic circuits simultaneously, with modular multi‑section assemblies allowing scalability.
4. Why is pneumatic control used in some dump truck systems?
Pneumatic control valves use compressed air to actuate hydraulic control circuits, reducing operator fatigue and improving precision in cab‑mounted interfaces.
5. What maintenance is required for joystick valves?
Routine inspections, fluid cleanliness, checking seals, and confirming actuation linkages all help maintain reliable joystick valve performance.
