| Availability: | |
|---|---|
| Quantity: | |
| Product Type | Directional valve |
| Model Number | SD5 380 |
| Rated pressure | 315bar |
| Rated flow | 45 and 75L/min |
| Operating range | 15-75mm2/s |
| Working temperature | -40 to 80℃ |
| Min viscosity | 12mm2/s |
| Max viscosity | 400mm2/s |
| Monoblock | 1-7 sections |
| Control type | manual, cable, solenoid,pneumatic, electro-hydraulic,etc. |

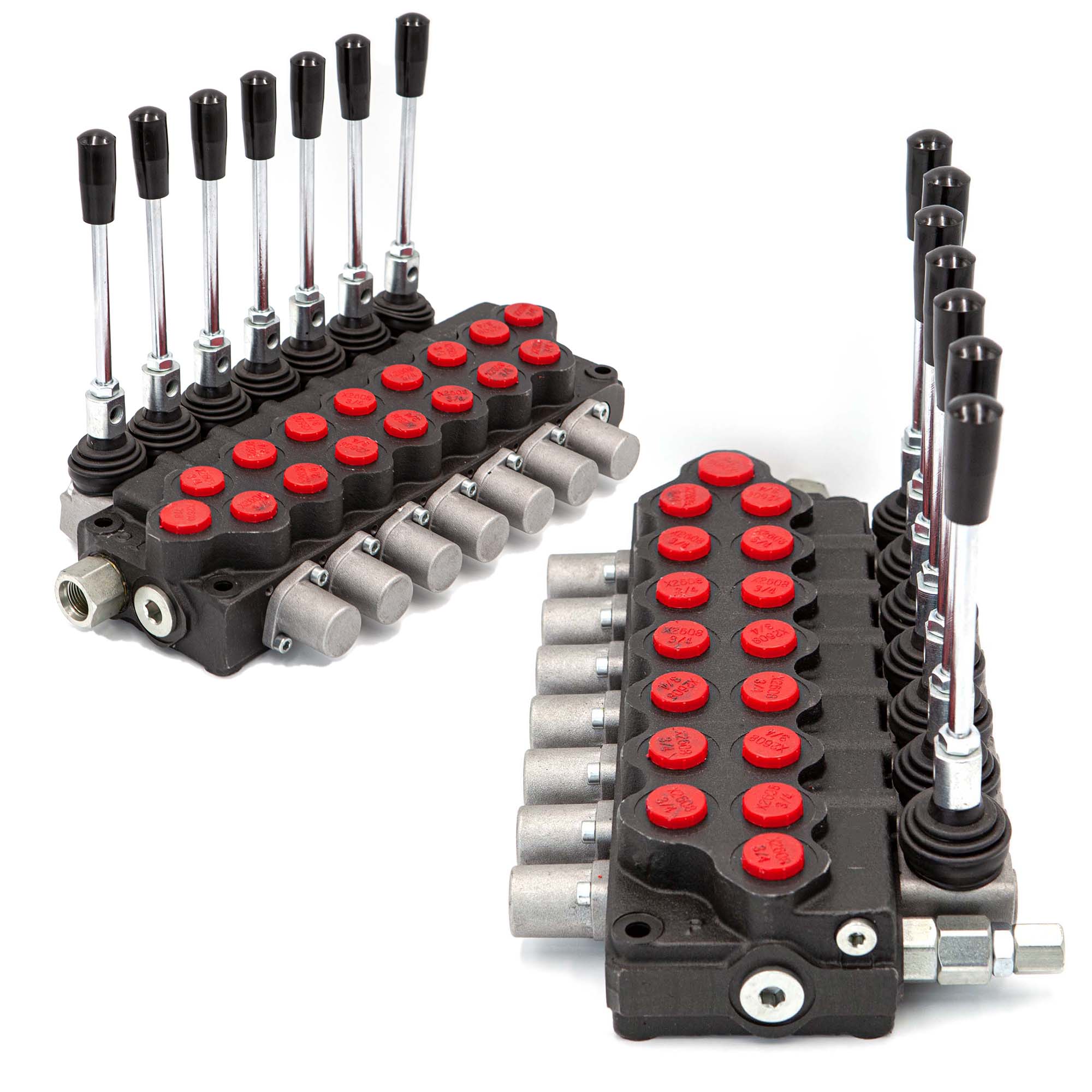

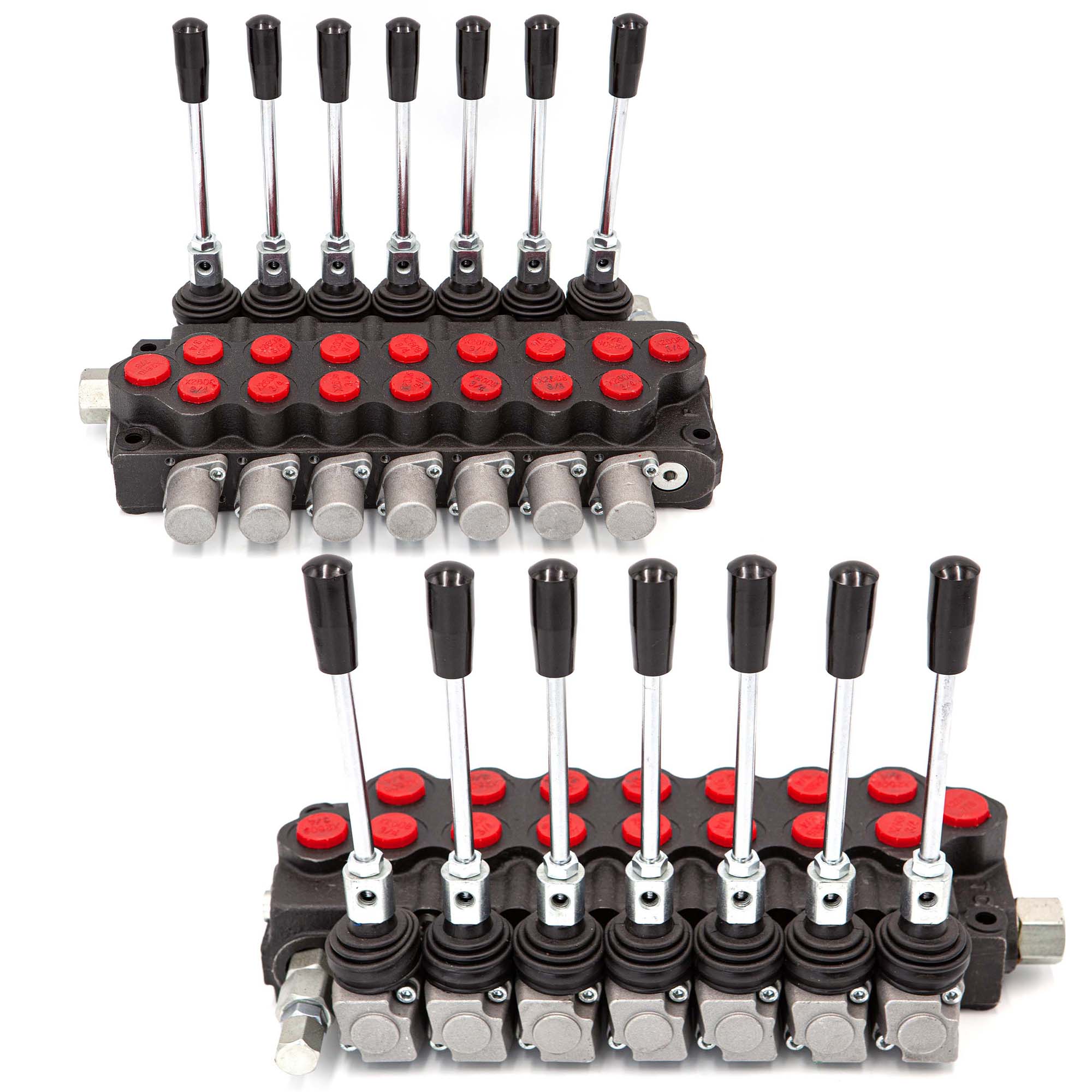

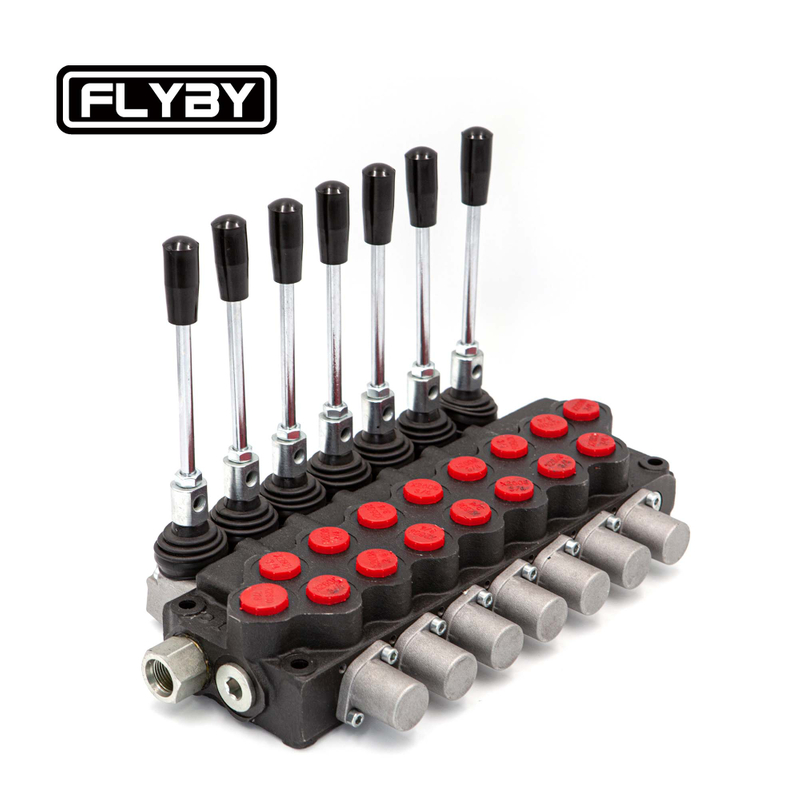

The SD5 380 monoblock directional control valve is a six-section, manually operated unit engineered for high-performance hydraulic systems. Capable of handling rated pressures up to 315 bar and flows of 45 or 75 L/min, this multi-section hydraulic valve stands out for its exceptional adaptability. It supports a wide array of actuation methods—manual, cable, solenoid, pneumatic, and electro-hydraulic—making it a versatile hydraulic valve for diverse machinery. Built to perform under extreme conditions, it operates reliably across a broad temperature range (-40°C to 80°C) and is compatible with hydraulic oils ranging from 12 to 400 mm²/s in viscosity. This compact and robust directional valve is ideal for equipment requiring simultaneous and precise control of multiple hydraulic functions.
The SD5 380 multi-section directional valve can be configured with up to seven sections, allowing centralized control of multiple hydraulic actuators in a compact design. It is an ideal hydraulic control valve for engineering machinery such as excavators, loaders, and cranes, where independent management of functions like boom lifting, tilting, and tool operation is essential. This versatility significantly improves operational efficiency and machine productivity, making it a top choice for multi-function hydraulic systems.

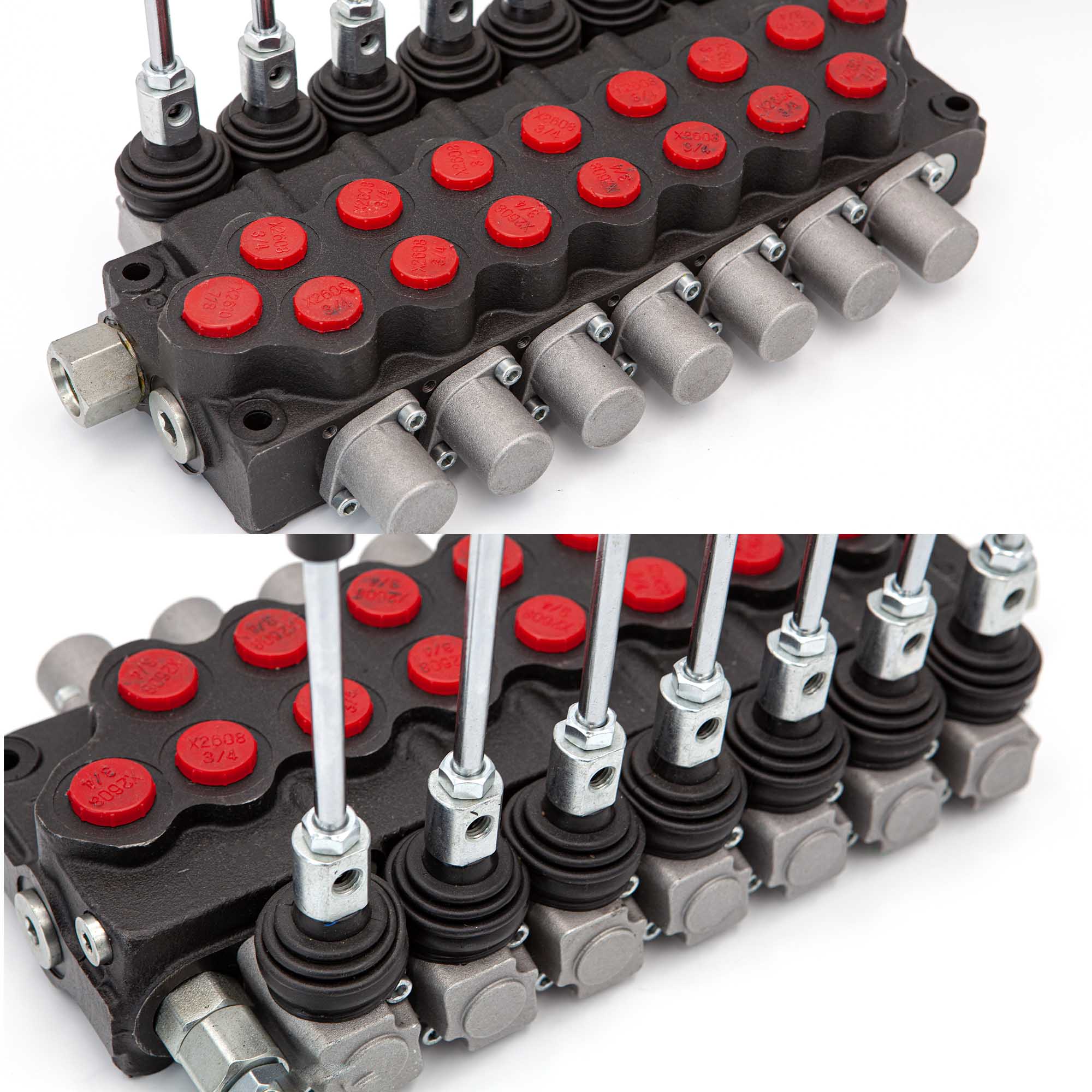

Designed for high-pressure hydraulic applications up to 315 bar, this valve ensures reliable performance under heavy loads and sudden pressure shocks. Its leak-free construction and durable internals make it a reliable directional control valve for construction and mining machinery, reducing downtime and maintenance costs in challenging operating conditions.
This durable hydraulic valve for harsh environments performs consistently across temperatures from -40°C to 80°C and viscosities from 12 to 400 mm²/s. It is compatible with biodegradable and fire-resistant fluids, making it suited for agricultural and forestry machinery that encounter seasonal weather changes and varying operational demands.
Offering manual, cable, solenoid, electro-hydraulic, and pneumatic actuation, the SD5 380 serves as a versatile control valve for OEM applications. It supports integration into basic manual setups and advanced automated systems alike, enabling customized operator interfaces and remote operation features. This adaptability makes it a preferred hydraulic valve for specialized mobile machinery and tailored industrial equipment.
