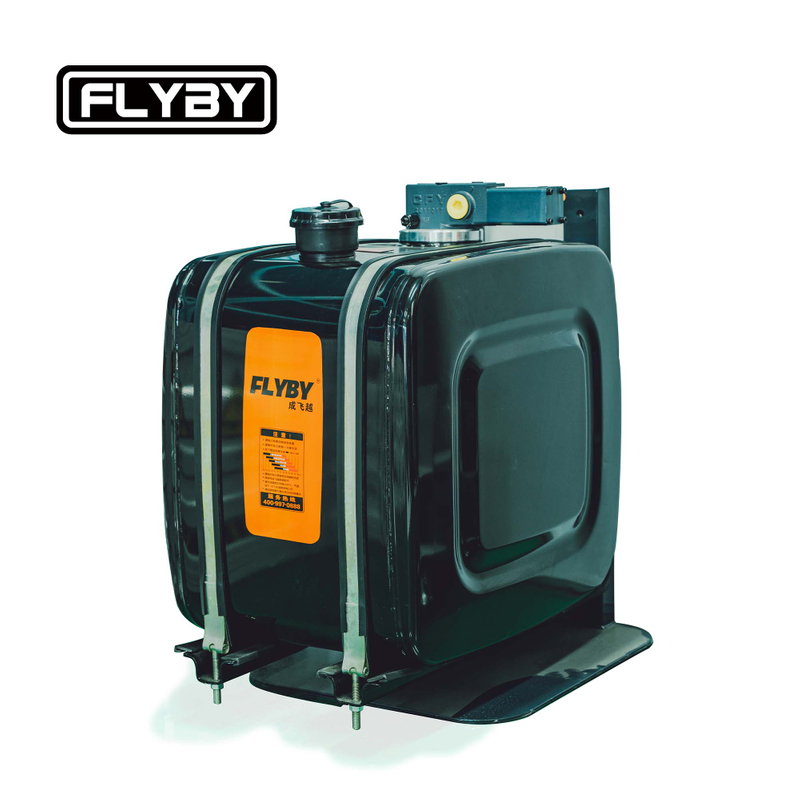

Metal Hydraulic Oil Tank YXCFY-57-02

Technical Specification

1、Cleanliness requirements for the interior of the oil tank.clean, dry,and free from residual particles greater than 50 microns;

2、Factory air tightness test: Test pressure >= 50kPa, no leakage,and no permanent deformation of the box.

3、Fill the oil tank with compressed air with a relative pressureof 30KPa, immerse each inspected part in a water depth of<=100mm,and maintain the pressure for 2min, without any leakage.

4、Return oil filter: with a filtration accuracy of<25 micronsand a flow rate of>200L/min.

5、Each interface needs to be sealed to prevent contaminationduring transportation

Product Advantages & Applications

1. Superior Durability with Heavy-Gauge Steel Construction

The YXCFY-57-02 steel hydraulic oil tank is built to withstand the most punishing mining and construction machinery applications. Constructed from high-quality steel, this robust hydraulic reservoir for mining offers exceptional structural integrity and impact resistance, far surpassing standard offerings. The advanced welding techniques employed ensure seamless, high-strength joints that prevent failures at critical stress points. Combined with a superior surface treatment process—including shot blasting, phosphating, and durable powder coating—this tank delivers outstanding corrosion resistance, significantly extending its service life even in wet or chemically harsh environments. For operators of off-road mining equipment and heavy-duty tippers, this translates into a reliable component that reduces unexpected downtime and replacement costs. Choose the tank that won't let you down when the job gets tough.

2. Advanced Filtration for Unmatched System Cleanliness and Protection

Protecting your hydraulic investment from contamination is crucial for profitability. The YXCFY-57-02 is engineered with a core focus on superior contamination control for hydraulic systems. Its interior is guaranteed clean and dry, with no residual particles greater than 50 microns. Furthermore, it features an integrated high-precision return oil filter with an exceptional <25-micron filtration rating and a flow rate exceeding 200L/min. This high-flow return oil filter for dump trucks captures fine, abrasive particles that standard filters miss, directly safeguarding expensive pumps, valves, and cylinders from wear. This proactive approach to hydraulic oil tank cleanliness can extend the operational life of your entire hydraulic system by up to 30%, delivering a significant return on investment. Stop wear before it starts—protect your system with advanced filtration.

3. Certified Leak-Proof Integrity for Maximum Operational Safety

A hydraulic leak on a remote job site is more than an inconvenience; it's a major safety and financial risk. The YXCFY-57-02 leak-proof hydraulic oil tank is validated through a stringent two-stage testing protocol that guarantees absolute reliability. It first undergoes a structural integrity test at ≥50 kPa, followed by a sensitive 30 kPa underwater bubble test for two full minutes. This ensures that this heavy-duty hydraulic reservoir remains completely sealed under the constant vibration, pressure spikes, and physical stress inherent in dump truck hydraulic system operations. This proven leak-proof performance is essential for all construction machinery parts, providing operators with peace of mind and preventing costly fluid loss and environmental hazards. Deploy with confidence—ensure your equipment has a tank that holds its seal.

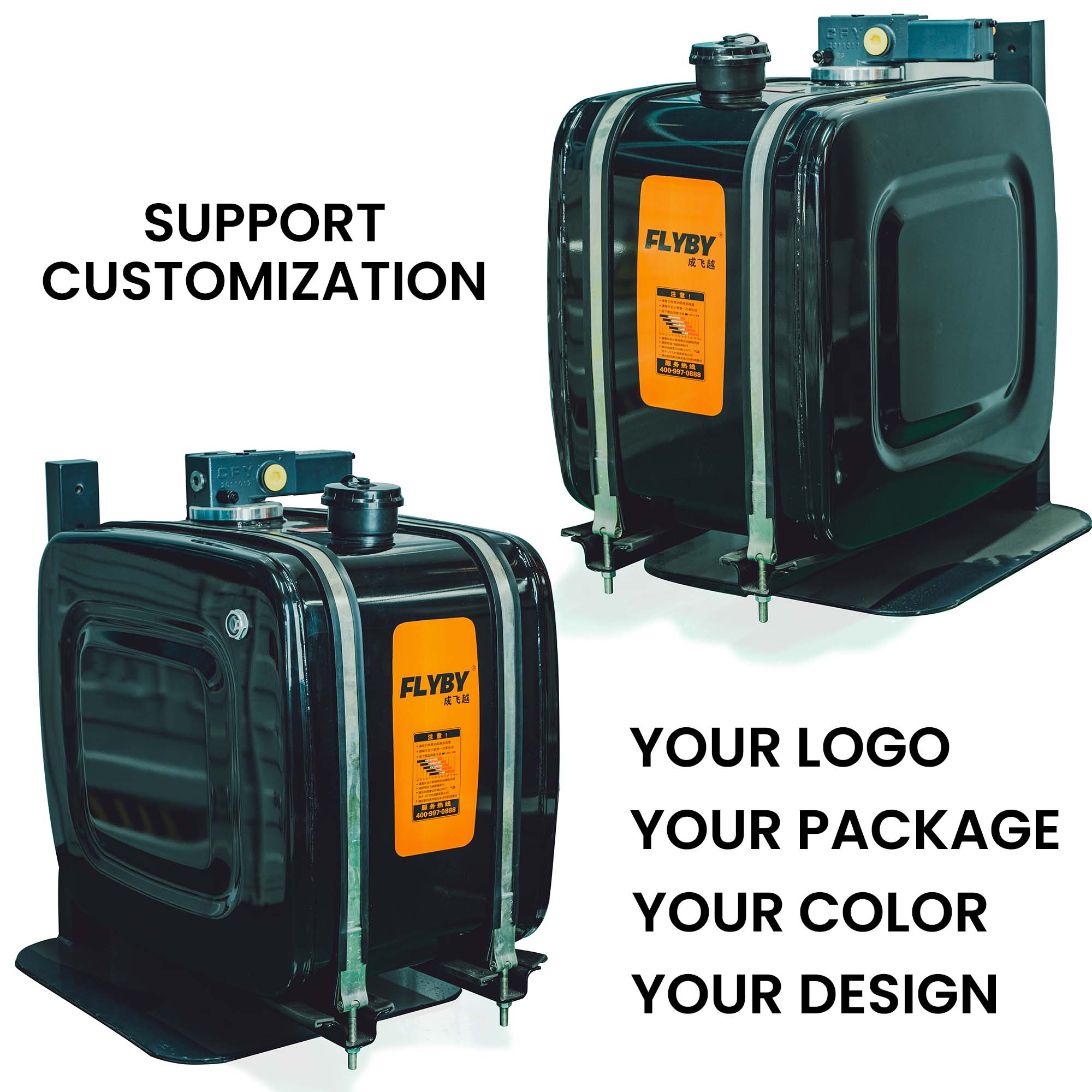

4. Standardized Sizing with Flexible Customization Options

We understand that fleets require both standardization and flexibility. The YXCFY-57-02 hydraulic oil tank for dump trucks offers a practical range of five standard capacities (135L-250L), all designed with a uniform base dimension for simplified installation and inventory management. This smart hydraulic tank capacity selection allows for easy interchangeability across different vehicle models. Beyond the standard offering, we provide custom hydraulic reservoir solutions, including specific port configurations, custom colors, and branding. This versatility makes it an ideal choice for OEMs and large fleets operating diverse equipment, from standard tippers to specialized off-road mining equipment, ensuring you get the exact tank your operation requires. Get the perfect fit—leverage our standard models or let us customize a solution for you.

5. High Cost-Effectiveness and Lower Total Cost of Ownership

In an industry where budget management is key, the YXCFY-57-02 cost-effective steel hydraulic tank delivers outstanding long-term value. While offering a lower initial investment than aluminum alternatives, its true economy comes from its extended service life and reduced maintenance needs. The combination of robust steel construction, superior corrosion-resistant coatings, and integrated high-efficiency filtration results in a component that stands the test of time. This directly leads to a lower Total Cost of Ownership (TCO) by minimizing unscheduled downtime, reducing component wear in the broader hydraulic system, and delaying capital replacement. For cost-conscious managers of construction and mining equipment, this tank represents a smart, durable investment that pays for itself over its long operational life. Maximize your ROI—invest in a tank that delivers reliability and value for years to come.
