A hydraulic gear pump moves fluid by trapping it between the teeth of two meshed gears. One gear connects to a shaft, and the other turns with it. This action creates a vacuum at the inlet, draws fluid in, and pushes it out through the outlet. You will see these pumps in dump trucks and industrial equipment because they work reliably and handle heavy loads with ease.
These pumps help lift and lower dump truck beds.
They keep construction machines running smoothly.
Their steady flow means you can trust them in tough jobs.
Hydraulic gear pumps use two gears that fit together. They move fluid and make a steady flow for tough jobs.
These pumps work well in dump trucks and big machines. They give strong pressure and work efficiently.
External gear pumps are simple and easy to fix. Internal gear pumps are quiet and give exact flow.
Pick the right pump for your fluid, pressure, and job. This helps the pump work its best.
Take care of the pump often and use the right fluid. This makes the pump last longer and work better.
A hydraulic gear pump moves fluid in a hydraulic system. It uses two gears that fit together to make the fluid flow. When you turn on the drive shaft, the gears spin and pull fluid inside. The gears then push the fluid out to other parts of the system. You can find this pump in machines like dump trucks and construction tools. The design gives steady flow and works well for hard jobs. You can trust a gear pump to work well and last a long time.
The materials in a hydraulic gear pump are very important. Makers pick materials based on the fluid, the pressure, and where you use the pump. Choosing the right materials helps the pump last longer and work better. For example, some pumps use cast iron or aluminum. These materials help with heat and make the pump lighter. This makes it easier to put in and helps it last longer.
A gear pump has many important parts. Each part helps the pump work and last longer. Here is a table that shows the main parts and what they do:
| Component | Function |
Housing | Holds the inside parts and keeps fluid from leaking out. |
Meshing Gears | Move the fluid and make it flow through the pump. |
Drive Shaft | Connects to power and spins the gear to pull in fluid. |
End Covers | Keep a good seal to stop leaks and help the pump work well. |
How each part is made changes how the pump works. The type of gears can make the pump quieter or smoother. Seals help stop leaks and make the pump better. You need to control pressure changes to keep the pump working well. If you do not control suction pressure, the pump can get damaged by cavitation.
Tip: Gear pumps with special seals can work at 74% to 88% efficiency. You get better results if you control pressure changes and keep suction pressure high.
Gear pumps are used in many places because they are simple and strong. The external gear pump is a popular kind. It uses two gears that are the same and works in many hydraulic systems. You can count on a hydraulic gear pump for steady flow and good performance in your machines.
To see how a hydraulic gear pump works, watch the gears move fluid. The pump has two gears inside a strong case. When you turn on the pump, the drive shaft spins one gear. This gear turns the other gear too. As the gears spin, they pull apart on the intake side. This makes a vacuum that pulls fluid in from the reservoir.
The gears catch the fluid between their teeth and the pump case. The gears keep turning and carry the fluid around the outside. The fluid stays in small pockets made by the gear teeth. It does not go between the gears. When the gears come together again on the other side, they push the fluid out. The fluid leaves through the outlet port and goes into the hydraulic system.
The hydraulic gear pump changes mechanical energy into fluid power. Oil comes from the reservoir and gets pumped out to power your hydraulic tools.
Each time the gears turn, the pump moves the same amount of fluid. This steady flow makes gear pumps good for many jobs. You can use them in dump trucks, pto gear pump setups, and transmission gear pump systems. The pump keeps the flow steady, even if the pressure changes.
The fluid displacement process has two main steps: suction and compression. First, the gears spin and make a space at the inlet. This suction pulls fluid into the pump. The fluid goes into small spaces made by the gear teeth and the case. The gears act like buckets and carry the fluid from one side to the other.
Next, the gears come together on the discharge side. This squeezes the fluid and pushes it out through the outlet port. The pump sends out the same amount of fluid each turn. This means you get steady flow and pressure. You can count on this for high pressure jobs like mining, building, and moving things.
Here is a simple table to show how the fluid moves inside the pump:
| Phase | What Happens |
Suction | Gears pull apart, make vacuum, draw fluid into the pump |
Displacement | Fluid moves in sealed pockets along gear teeth |
Compression | Gears come together, push fluid out through the outlet |
Some systems use double gear pump designs for more flow or output. These pumps have two sets of gears to move more fluid at once. FLYBY gear pumps use strong designs for lots of cycles and high pressure in dump truck gear pump systems. A new gear pump usually works at 90% to 95% efficiency at rated pressure. This gives you strong power and little waste.
Tip: For steady lifting and quick action in your dump truck, pick a gear pump with high efficiency and good materials.
You can use gear pumps in many hydraulic systems. The small size fits well in tight PTO gear pump spaces. The strong case and careful building help the pump handle high pressure and hard work. If you need a transmission gear pump for machines or a double gear pump for more output, the fluid process stays the same. The pump pulls in fluid, moves it around the gears, and pushes it out with steady pressure.
You will find the external gear pump in many hydraulic systems. This pump uses two gears that mesh together inside a strong case. When the gears turn, they move fluid from the inlet to the outlet. The design is simple, so you can maintain it easily. You often see this type in mobile hydraulic machinery, such as dump trucks and tractors. It works well for high pressure and high-speed jobs. Many pto gear pump setups use this design because it fits well in tight spaces and handles tough work.
The internal gear pump has a different design. It uses one gear inside another larger gear. The smaller gear sits off-center and turns inside the bigger gear. This setup creates pockets that move fluid smoothly. You get quiet operation and precise flow control. You often see this pump in food, chemical, and pharmaceutical industries. It works well with thick fluids and in systems that need gentle handling. Some high pressure gear pump models use this design for special tasks.
You should know how these two pumps compare. Here is a table that shows the main differences:
| Feature | External Gear Pumps | Internal Gear Pumps |
| Design | Two gears, simple layout | One gear inside another, more complex |
Maintenance | Easy to service, less expensive | More parts, harder to maintain |
Applications | High pressure, high speed, mobile machines | Quiet jobs, precise flow, thick fluids |
Common Uses | Dump trucks, tractors, industrial plants | Food, chemicals, oil and gas |
External gear pumps handle pressures from 10 to 25 MPa and flow rates up to 160 m³/h. Internal gear pumps can reach pressures over 300 bar. You should pick the right pump for your job. For example, a double gear pump gives you more flow for large dump trucks. A bidirectional gear pump lets you reverse flow when needed.
FLYBY offers many gear pump types, such as single, duplex, PTO, and bidirectional models. You can match these pumps to your dump truck or industrial system for the best results.
When you pick a gear pump for your hydraulic system, you want to know why it is special. FLYBY gear pumps have many features that help them work well in hard jobs. You can see these features in the table below:
| Feature | Description |
| Positive Displacement | Each turn of the gear pump moves a set amount of fluid, giving steady flow. |
Compact and Simple Design | Fewer moving parts make the pump easy to install and maintain. |
Smooth, Low-Pulsation Flow | The pump delivers fluid without sudden changes, helping your system run smoothly. |
Good Handling of Viscous Fluids | The pump works well with thick fluids, keeping output consistent. |
Self-Priming Capability | The pump can start moving fluid without extra help, reducing setup time. |
Moderate to High Pressure Capability | The pump can handle strong hydraulic pressure for demanding tasks. |
You can choose a gear pump made from cast iron or aluminum. Cast iron is strong and lasts a long time. It helps the pump handle high pressure and heavy loads. Aluminum is lighter, so it is easier to move and install. Cast iron does not wear out fast, so the pump works longer. Aluminum makes the pump light, which is good if you need to save weight.
FLYBY gear pumps come in different types, like high pressure gear pump and double gear pump. These choices help you find the right pump for your job. You can get more flow or extra lifting power if you need it.
There are many good things about using a gear pump in your equipment. Here are some main advantages:
You get high efficiency and steady fluid delivery. This helps you measure and control fluid better.
The simple design means you do not spend much time fixing or maintaining the pump.
The pump can self-prime, so you do not need other tools to start it.
The pump is strong and lasts a long time, even in hard jobs.
The small size lets you put the pump in tight spaces, like PTO setups.
You can use the pump with many kinds of fluids, so it works in many industries.
Some gear pumps can reverse flow, so you have more ways to use them.
The pump does not cost a lot to run or fix, so you save money.
FLYBY gear pumps meet strict quality rules, like ISO 9001 and CE. Every pump is checked before you get it. This careful testing helps you avoid problems when you install the pump. It also keeps your system working well.
Tip: If you need a hydraulic pump for strong or heavy work, pick a gear pump made with tough materials and good quality checks.
It is important to know what a gear pump cannot do before you pick one. Gear pumps work well in many machines, but they have some limits:
Gear pumps can reach up to 3000 PSI. This is not enough for very big presses or heavy machines that need more pressure.
You cannot change how much fluid the pump moves while it works. Gear pumps always give the same flow every time.
The pump works best with the right temperature and fluid. If the fluid gets too hot, it gets thin. This can make the pump lose pressure or flow.
Using the wrong fluid thickness can cause problems. Thin fluid can leak and get too hot. Thick fluid makes the pump hard to start and can cause cavitation.
Things like water, air, or dirt can hurt the pump. Bad fluid or dirty filters can break the pump. If you install it wrong or use the wrong parts, it can leak or stop working.
Here is a table that shows how temperature and fluid thickness change how the pump works:
| Factor | Effect on Performance |
Temperature | High heat makes fluid thin, which can lower flow and pressure. |
Fluid Viscosity | Thin fluid lowers flow and pressure; thick fluid helps efficiency but can make starting hard. |
Mechanical Stress | High speed and heat can cause leaks or cavitation. |
Tip: Always use the right fluid and keep your system clean. This helps your gear pump last longer.
Gear pumps are used in many jobs because they give strong pressure and steady flow. Here are some common ways people use them:
In dump trucks, the pump lifts and tips the bed. This makes unloading fast and easy. It saves time and work.
Mining trucks use gear pumps for strong pressure. This helps move heavy loads and keeps trucks working in hard places.
Construction machines like loaders and cranes use these pumps. They help lift, tilt, and move things quickly.
Trucks for moving goods use gear pumps for lifts and ramps. This makes loading and unloading faster.
You also see gear pumps in factories for oiling, adding chemicals, and cooling. In farming, they help spray fertilizer and pesticides. Oil and gas companies use them to move fluids and power machines.
FLYBY gear pumps are good for these jobs because they are strong and steady. You can pick from many models to fit your needs. There are single, duplex, and bidirectional pumps.

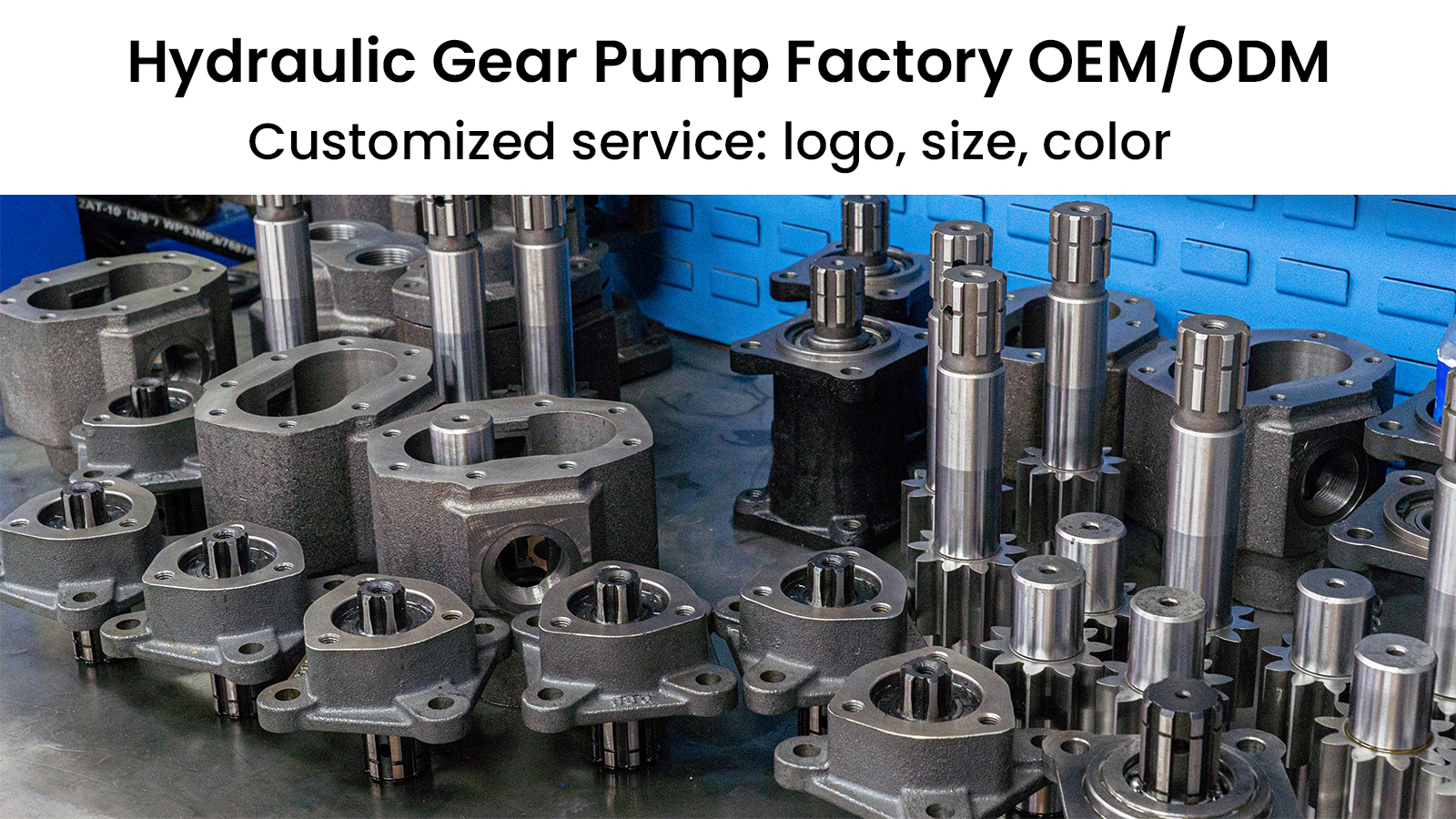

If you need something special, FLYBY can make a pump just for you. You can change the size, pressure, or direction. You can even put your company’s logo on it. This helps you get the right pump for your job, like a dump truck or a mining loader.
Note: FLYBY’s team can help you choose the best gear pump for your system. Tell them what you need, and they will help you pick the right one.
Now you know that a hydraulic gear pump uses gears to move fluid. This gives a steady flow and strong pressure. You can pick from different types, like external or internal gear pumps. Choose the one that fits your needs best. When you pick a pump for your dump truck or machine, look at these things:
The kind and thickness of the hydraulic fluid
How much fluid you need to move and how much pressure you need
The place where you will use the pump
FLYBY gear pumps work well and are easy to take care of. They give you high efficiency and have fewer parts that can break. These pumps are strong and good for hard jobs. To keep your pump safe and working for a long time, do regular checks and follow safety rules. FLYBY can help you find the right gear pump for your job.
A hydraulic gear pump moves fluid in your system. It helps power machines like dump trucks and loaders. You get steady flow and strong pressure for lifting, tipping, or moving heavy loads.
You should check your truck’s hydraulic needs. Look at flow rate, pressure, and mounting space. FLYBY can help you match the right gear pump to your dump truck.
Yes, you can use a hydraulic gear pump with thick fluids. The pump works well with oils and other viscous liquids. You get smooth and steady flow, even with heavy fluids.
Use clean fluid and check filters often. Follow the maintenance guide. Regular checks help your FLYBY gear pump last longer and work better.
Yes! FLYBY can make a custom hydraulic gear pump for your needs. You can choose size, pressure, and direction. Just tell the team what your system needs.
