A hydraulic lift valve is an essential control component in hydraulic systems that manage vertical movement, load holding, and safe lowering. Whether used in industrial lifts, material handling systems, or heavy vehicles such as dump truck valve assemblies, a hydraulic lift valve ensures accurate control of pressurized hydraulic fluid to achieve smooth and reliable lifting operations.
In the context of heavy‑duty mobile equipment like dump trucks, hydraulic lift valves — often seen as part of the tipping valve system — are responsible for directing oil flow, isolating loads, and regulating descent. This comprehensive guide explains the design, operation, common configurations, performance considerations.

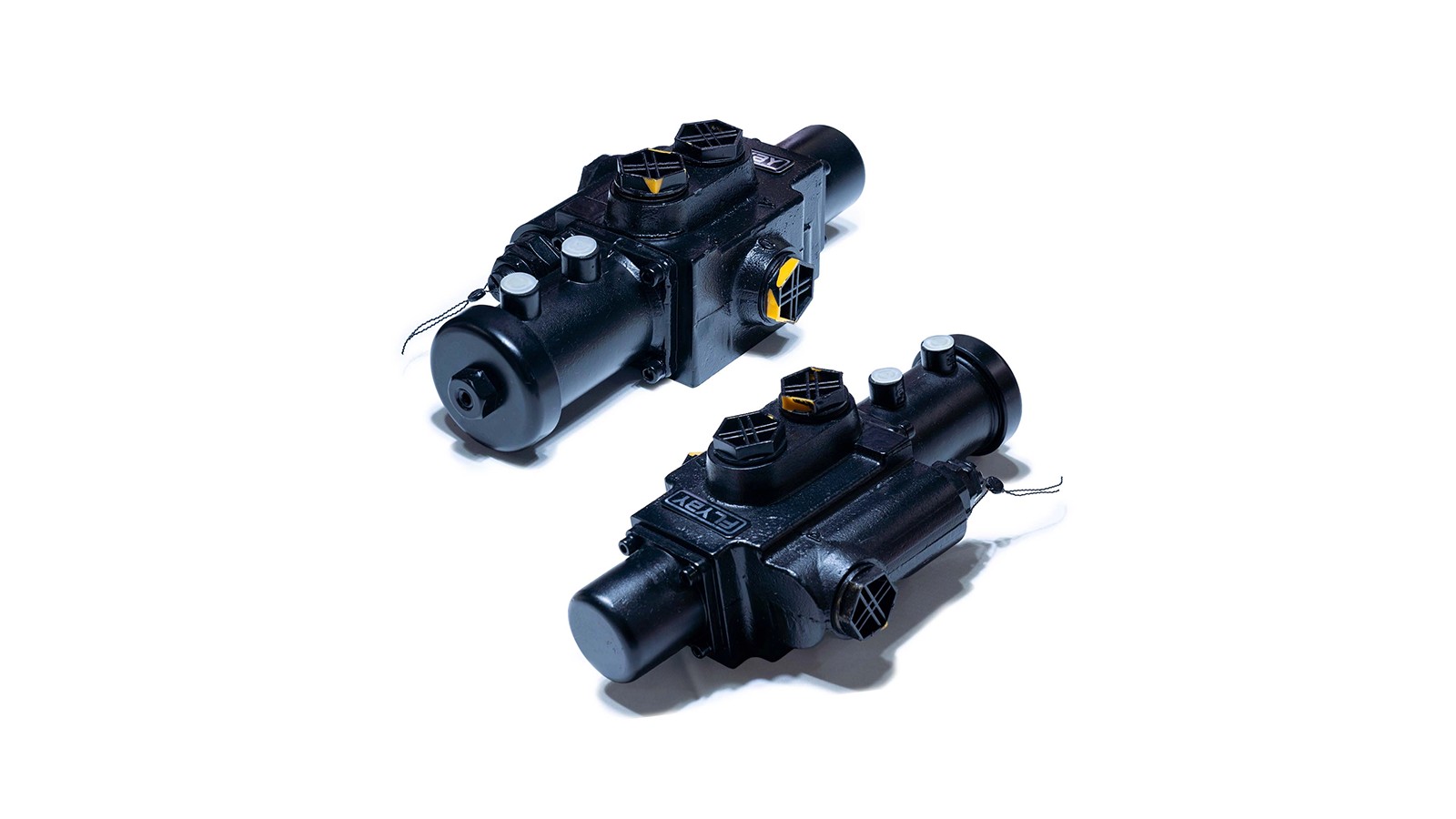

A hydraulic lift valve is a control valve used to manage the direction, flow, and pressure of hydraulic fluid in lifting systems. In lifting applications, it directs pressurized fluid into hydraulic actuators (such as cylinders) to raise a load, holds that load securely in position, and then controls fluid return to lower the load safely.
Hydraulic lift valves are integral to any system where controlled vertical motion is required. In dump truck hydraulics, they work in coordination with the hydraulic pump, cylinders, and safety mechanisms to support the raising and lowering of the dump body. They may also incorporate features such as built‑in relief valves, load‑holding checks, and slow lowering modulation to enhance performance and safety.
The operation of a hydraulic lift valve generally follows a three‑phase flow control cycle:
Lifting Phase: Pressurized fluid from the pump is directed into the lift circuit, opening the valve pathway that feeds the hydraulic cylinder. The cylinder extends, pushing the load upward.
Holding Phase: Once the desired height is reached, the lift valve blocks the return path or holds fluid in the cylinder, maintaining load position without drifting.
Lowering Phase: The valve then regulates the return flow back to the reservoir, allowing controlled and smooth descent of the load.
Some hydraulic lift valves include safety features such as pressure relief, anti‑drop checks, and adjustable flow controls to ensure that loads do not drop suddenly in the event of system pressure fluctuation or component failure.
Feature | Hydraulic Lift Valve | Tipping Valve / Dump Valve |
|---|---|---|
Primary Function | Controls lifting, holding, and lowering motion by regulating fluid direction and pressure. | Specifically designed for tipping operations such as raising and lowering a dump truck bed. |
Application | Lifts in general hydraulic systems and industrial applications. | Used in dump trucks, tippers, trailers, and heavy construction vehicles to control tipping cylinders. |
Additional Safety | Anti‑drop, relief control, modulated flow for smooth lowering. | Includes slow lowering, hold, and safe dump cycle functions. |
Flow Direction | Directs pressurized oil to lift and return circuit. | Routes lift, hold, and lower functions specifically for dump operation. |

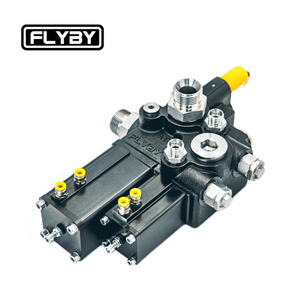

In practical terms, a tipping valve or dump valve used in truck hydraulics is a specialized type of hydraulic lift valve tailored for the demands of tip‑body lifting, incorporating features like slow lowering and multi‑function control.
A typical hydraulic lift valve comprises several critical elements that work together to regulate fluid flow reliably:
Component | Function |
|---|---|
Valve Body | The main structure that houses all internal passageways and components. |
Spool or Piston | Shifts to open or block fluid paths, controlling direction. |
Relief Elements | Prevent over‑pressure by opening when fluid pressure exceeds safe limits. |
Check Valves | Ensure fluid flows in the intended direction and prevent backflow. |
Flow Control Passageways | Manage fluid speed to avoid sudden motion during lowering. |
In dump truck applications, the lift valve often integrates with additional control features to coordinate extended lifting, holding position securely, and modulated lowering to protect mechanical and structural components.
Hydraulic lift valves play a vital role in a wide range of systems where controlled vertical motion is essential. Some of the primary applications include:
In equipment such as scissor lifts, aerial platforms, and warehouse lifts, a hydraulic lift valve works as the control center that manages lift elevation and descent with precision and safety.
Hydraulic lift valves are used in automotive service equipment to elevate vehicles for maintenance. They ensure controlled lifting and secure holding at height for technician safety.
In dump truck hydraulic systems, hydraulic lift valves — often integrated with tipping valves — direct oil to the tipping cylinder, allowing the truck bed to lift, hold, and lower smoothly. These systems require robust valves that handle high pressures and maintain stability under load.
Industrial presses, hydraulic lifts, and other heavy machines use lift valves as part of their motion control architecture to manage fluid direction, speed, and pressure in lifting cycles.
Hydraulic lift valves can be classified based on control style and function:
These are manually operated valves typically used in smaller hydraulic systems. They allow the operator to directly control fluid paths for lifting and lowering by mechanical levers or knobs.
Solenoid‑operated lift valves use electrical actuation to shift the valve spool, enabling remote or automated control of lift functions, including raise, hold, and controlled descent.
Pilot control systems use secondary hydraulic signals to control the main valve, providing smoother motion and better control under high flow or high‑pressure conditions.
In dump truck systems, integrated lift valves combine multiple functions — such as lifting, holding, and slow lowering — in a single assembly to meet specific operational requirements.
When selecting a hydraulic lift valve, especially for demanding applications like dump truck systems, consider the following aspects:
Pressure Rating: Must match or exceed the operating pressures of the hydraulic system to avoid failure.
Flow Capacity: Adequate flow control ensures smooth movement without sudden acceleration or jerking.
Safety Features: Load holding and anti‑drop mechanisms provide secure operation under load.
Maintenance Availability: Easily serviceable valves reduce downtime in busy operational environments.
Proper valve selection extends the life of the hydraulic components, improves performance, and enhances safety across the entire system.
Routine maintenance ensures reliable performance and prolongs service life. Key practices include:
Hydraulic Fluid Inspection: Clean fluid prevents internal leakage and wear.
Check for Signs of Internal Leakage: Slow drift during hold may indicate spool wear or contaminated fluid.
Thermal Monitoring: Overheating can degrade seals and reduce valve life.
Seal and Component Replacement: Replace worn seals and parts proactively based on service hours.
Adequate maintenance not only enhances safety but also improves system efficiency by reducing the risk of unplanned failures.
1. How does a hydraulic lift valve differ from a tipping valve?
A hydraulic lift valve regulates fluid flow for general lifting systems, whereas tipping valves or dump valves are specialized lift valves designed specifically for controlling the lifting and lowering cycle of a dump truck body.
2. Why is flow control critical in hydraulic lift valves?
Flow control ensures smooth lifting and lowering motions. Too much uncontrolled flow can lead to rapid or unsafe movement, while precise control prevents sudden drops.
3. What happens if a hydraulic lift valve fails in a dump truck?
Valve failure can cause slow lift cycles, inability to hold the load at a desired height, drift, or uncontrolled lowering — all of which pose safety risks.
4. Can hydraulic lift valves be automated?
Yes, solenoid‑operated and pilot‑controlled lift valves allow automated or remote control of lift functions for improved precision and integration with vehicle control systems.
5. How often should hydraulic lift valves be serviced?
Routine inspection every few months or based on operating hours is recommended, with fluid checks and leak testing integral to proactive maintenance.
