Selecting a Hydraulic Pump is never a simple commodity purchase. It stands as a critical engineering decision governing the heartbeat of your entire machine. Misaligned specifications inevitably lead to excess heat generation, premature component failure, and operational downtime. We must acknowledge that this decision requires balancing theoretical calculations—like flow, pressure, and displacement—with practical operating environments and mechanical constraints. You cannot simply guess the requirements and expect optimal performance. This guide outlines a strict, evidence-based framework for evaluating pump specifications. We will help you navigate the core metrics and technology types to ensure long-term system reliability. You will learn exactly how to match pump capabilities to your specific application demands. By analyzing the entire hydraulic circuit before selecting a component, you protect your system from catastrophic failures. Let us dive into the exact specifications you must prioritize.
Operating pressure and flow rate must be matched to the system’s peak demands, not just average loads, to prevent fluid bypass and overheating.
Pump displacement directly dictates actuator speed; accurate sizing eliminates the risk of system sluggishness or dangerous over-pressurization.
Choosing between a hydraulic gear pump and a hydraulic piston pump depends entirely on evaluating upfront cost versus required volumetric efficiency and operating pressure.
Application environments (e.g., stationary industrial vs. mobile applications like a dump truck hydraulic pump) dictate critical secondary specs such as mounting standards and fluid viscosity tolerance.
Undersizing a pump cripples your machine. The entire system suffers immediately. Actuators move sluggishly. The equipment fails to lift heavy loads. Operators experience frustrating cycle times. Conversely, oversizing a pump wastes valuable energy. The system generates excess heat. This thermal overload quickly degrades fluid viscosity and blows critical seals. Proper specification alignment prevents these extremes.
You must define clear success criteria for your installation. A successful integration delivers stable volumetric efficiency. It maintains an optimal thermal equilibrium. The unit must survive its intended lifespan without requiring constant intervention. Achieving this requires a rigorous, data-driven approach rather than guesswork.
Engineers must adopt a system-first approach. A pump does not create pressure. It creates flow. Pressure is simply the result of resistance to that flow. Therefore, your selection process must begin with a complete audit. You need to map out the entire hydraulic circuit's resistance. You must calculate the exact actuator speed requirements before looking at a manufacturer's catalog.
You must distinguish between continuous operating pressure and intermittent ratings. Continuous pressure represents the maximum load the unit handles endlessly. Intermittent or peak pressure indicates what the unit handles for brief, fractional-second surges. These surges usually occur during startup or sudden load shifts.
Best Practice: Never run your equipment continuously at its maximum peak pressure rating. Doing so accelerates internal wear. It leads to metal fatigue and premature structural failure. Always select a unit where your normal operating pressure falls well within its continuous rating margin.
Displacement defines the exact volume of fluid moved per single shaft revolution. Flow rate is the actual volume of fluid delivered over time. Your drive speed directly impacts this output. A larger displacement requires less speed to achieve a specific flow rate.
You can evaluate this using a standard engineering formula:
Flow Rate = (Displacement × RPM) / Volumetric Efficiency
Volumetric efficiency accounts for internal fluid leakage. No system is perfectly efficient. Most units operate between 85% and 95% volumetric efficiency. You must factor this inevitable loss into your sizing calculations to avoid falling short of your target flow.
Your prime mover dictates available input speed and torque. Electric motors provide consistent, smooth RPMs. Diesel engines present a different challenge. They suffer from fluctuating speeds and intense vibrational loads. These input speed limitations strictly dictate the required displacement size.
If your engine runs at a low RPM, you need a larger displacement to hit your target flow. If you have a high-speed electric motor, a smaller displacement suffices. You must verify that the prime mover generates enough torque to turn the shaft under maximum pressure conditions.

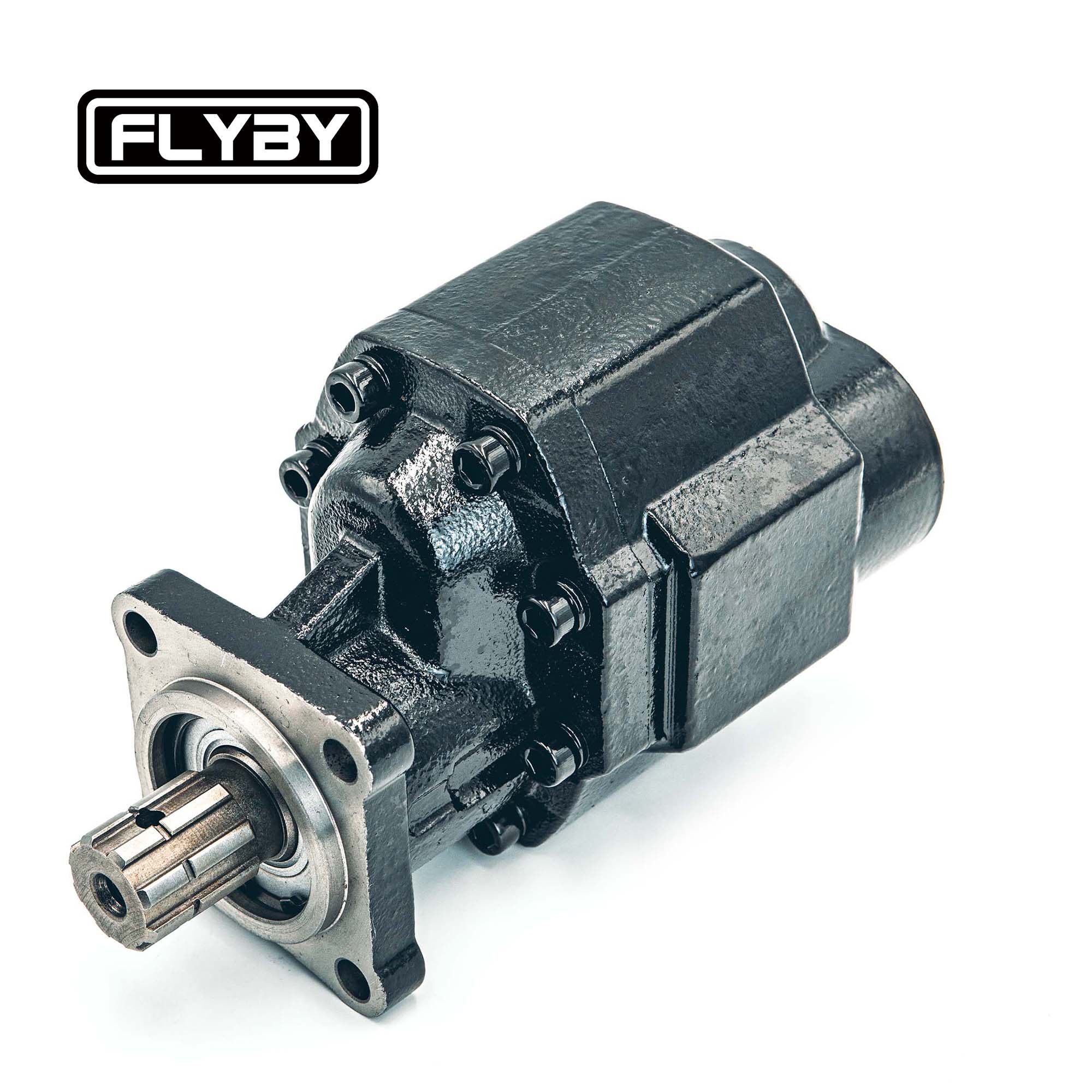

The Hydraulic Gear Pump is an industry staple. It serves best in low-to-medium pressure applications. You should choose it for fixed displacement needs. It features a remarkably simple design. Two meshing gears push fluid through the housing.
These units offer exceptional durability. They tolerate dirty fluid better than other designs. However, they present distinct trade-offs. They suffer from lower volumetric efficiency. They wear down faster at high pressures. They are primarily evaluated for straightforward, heavy-duty tasks where precise metering matters less than raw reliability.

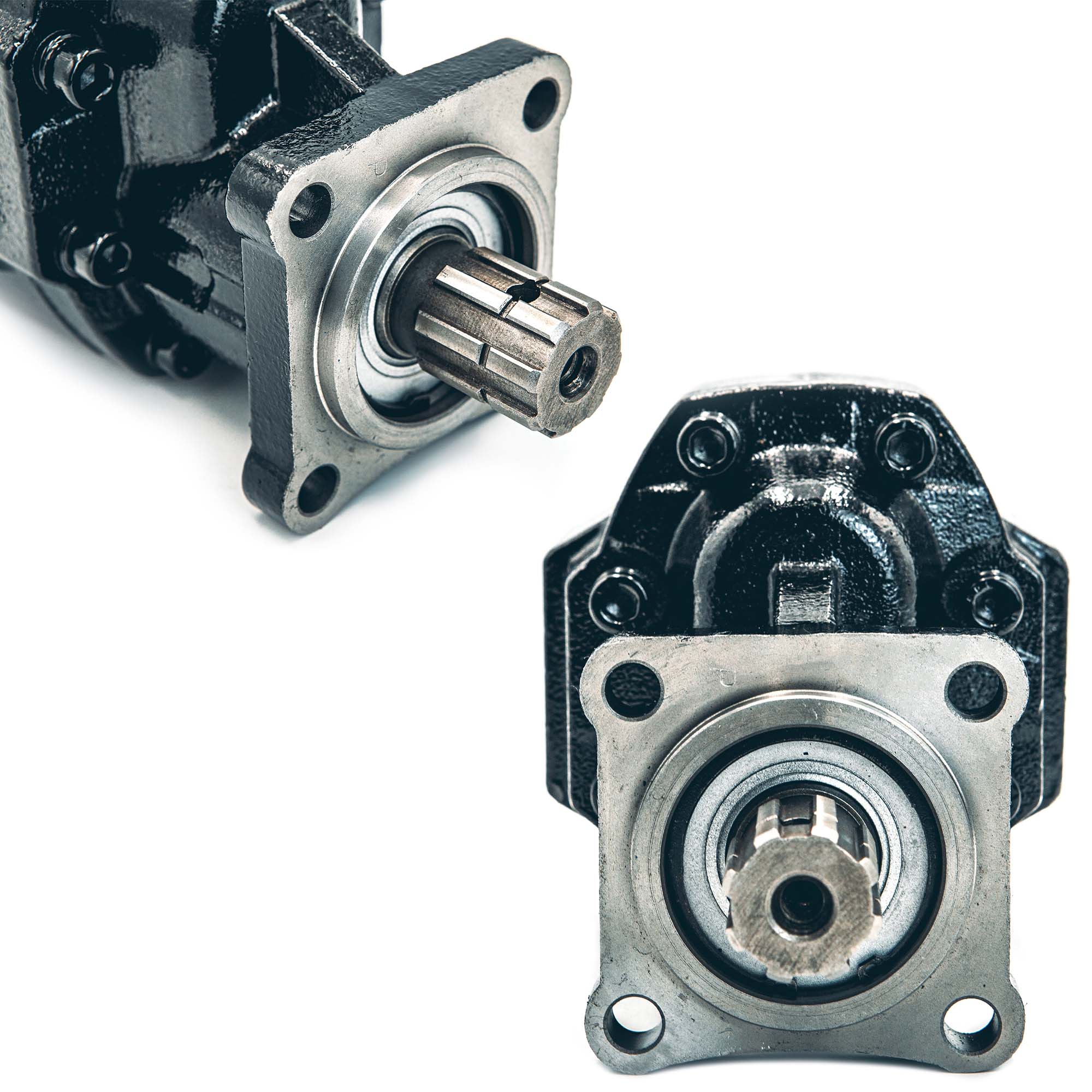

A Hydraulic Piston Pump becomes mandatory for high-pressure operations. Industrial applications rely on them for continuous, grueling duty cycles. They are essential when your circuit requires variable displacement. A swashplate mechanism allows them to alter flow without changing engine RPM.
They deliver superior volumetric efficiency. However, these benefits carry strict trade-offs. They require rigorous fluid cleanliness. Contaminated fluid destroys the tight internal tolerances immediately. They also carry a significantly higher upfront purchase price. You must weigh this against their superior energy savings.
Vane pumps occupy a specialized middle ground. Engineers evaluate them primarily for low-noise environments. They excel in medium-pressure applications. Factory floors utilize them frequently. Sliding vanes trap fluid against a cam ring.
They run exceptionally quietly compared to gear units. They maintain efficiency well as the vanes wear. However, they tolerate high-pressure spikes poorly. They require clean fluid to prevent the sliding vanes from sticking inside the rotor slots.
Technology Type | Pressure Rating | Efficiency Level | Contamination Tolerance |
|---|---|---|---|
Gear (External) | Low to Medium (up to 3,000 PSI) | Moderate (80-85%) | High |
Piston (Axial) | High (up to 6,000+ PSI) | Very High (90-95%) | Very Low |
Vane | Medium (up to 2,500 PSI) | High (85-90%) | Medium |
Stationary industrial applications operate in controlled environments. You must focus on continuous duty cycles. Compatibility with large electric motors is critical. Many factories enforce strict noise regulations. You must review decibel ratings during the selection process.
Ambient temperatures fluctuate very little indoors. Fluid viscosity remains stable. This stability allows you to prioritize high-efficiency, tight-tolerance units. You can implement extensive, multi-stage filtration systems easily. Space constraints rarely dictate the final hardware choice.
Mobile equipment faces entirely different realities. Power Take-Off (PTO) systems drive most mobile circuits. You must design for harsh external environments. Temperature swings drastically alter fluid viscosity throughout the day.
Selecting a Dump Truck Hydraulic Pump illustrates this perfectly. The unit must survive severe intermittent high-torque burst cycles. It requires robust direct-mount capabilities. It must handle wildly variable engine RPMs as the driver accelerates. You must prioritize ruggedness and vibration resistance over maximum theoretical efficiency.
Strict filtration dictates hardware survival. Fluid compatibility remains non-negotiable. Industry standards rely on ISO cleanliness codes. An ISO 18/16/13 rating might be perfect for a gear setup. However, a complex axial design might require an ISO 16/14/11 rating. If you select a sophisticated unit, you must upgrade your system's filtration. Failing to do so guarantees early destruction.
You must verify all mounting and form factor standards. Do not assume universal fitment. Check the SAE or ISO mounting flanges carefully. Verify the shaft types before placing an order. Splined shafts handle high torque better than keyed shafts. Port configurations—such as NPT, SAE ORB, or Code 61 flanges—must match your existing plumbing.
Evaluate the maintenance footprint. Complex variable-displacement units offer excellent rebuildability. You can replace internal rotary groups and extend their lifespan. Conversely, small external gear models operate under a "run-to-failure" reality. When they break, you replace the entire unit. You must align this reality with your maintenance capabilities.
Follow this strict shortlisting logic to finalize your choice:
Calculate your maximum required system pressure and target flow rate.
Match the technology type (gear, piston, vane) to your specific duty cycle.
Verify all physical mounting standards, shaft specs, and fluid cleanliness requirements.
Finding the right component requires deep analytical rigor. You must balance strict volumetric requirements with the harsh realities of your operating environment. A unit that looks perfect on paper will fail if it cannot handle your system's contamination levels. Always prioritize long-term reliability over theoretical maximums.
Your next step requires gathering concrete data. Compile your system schematics. Document your target flow rates. Record your peak and continuous operating pressures. Identify the exact RPM range of your prime mover.
Finally, we encourage you to consult with an application engineer. Share your calculations and circuit diagrams with them. They can review your displacement formulas and spot hidden bottlenecks. By relying on expert verification, you finalize your selection based on exact application parameters, ensuring years of flawless operation.
A: You calculate the required size using a standard flow rate formula. First, determine your required actuator speed and cylinder volume. This dictates your target Gallons Per Minute (GPM). Then, divide the target GPM by your prime mover's RPM. Always include a 10-15% margin to account for inevitable volumetric efficiency loss.
A: A fixed displacement unit moves a constant fluid volume per rotation. The output changes only if the engine speed changes. A variable displacement unit utilizes internal mechanisms, like a swashplate, to alter flow output independently. This maintains constant prime mover RPM while saving massive amounts of energy in complex circuits.
A: Premature failure typically stems from three common implementation errors. Fluid contamination from poor filtration destroys internal tolerances. Cavitation, caused by inlet line restrictions, tears apart internal metal surfaces. Finally, operating the unit consistently beyond its rated continuous pressure specifications leads to rapid structural fatigue and blown seals.
