In the demanding world of heavy hauling, a mismatched hydraulic system quickly turns into a costly liability. Mismatched pump flow consistently leads to sluggish cycle times, overheated hydraulic fluid, or catastrophic system failure on the job site. Upgrading or replacing your dump truck's pump is rarely just about matching the mounting flange. It requires precise flow alignment. You must match the pump's Gallons Per Minute (GPM) to the hoist cylinder's exact capacity and operational targets.
A hasty guess often jeopardizes both safety and performance. When fluid velocity exceeds system limits, you risk severe internal damage. This guide provides the exact calculation frameworks and evaluation criteria you need. We break down the math behind hydraulic flow and hoist cycle times. You will learn how to accurately spec the right component, ensure smooth operations, and protect your critical equipment investment from premature wear.
Target pump flow (GPM) is dictated by the hoist cylinder's total volume and the desired extension/retraction cycle time.
Engine RPM and PTO ratios must be factored into displacement calculations to determine actual operational flow.
"Faster" is not always better; exceeding the system's maximum flow rating causes fluid shear, cavitation, and premature valve failure.
Selecting between gear and piston pumps depends heavily on system pressure requirements (PSI) and daily duty cycles.
Incorrect pump sizing introduces immediate financial and operational risks to your business. Fleet managers often focus heavily on engine horsepower or transmission specs. They overlook the vital role fluid dynamics play in daily profitability. You must view your hydraulic system as the heartbeat of your dump operation. A correctly sized Dump Truck Hydraulic Pump delivers a safe, consistent 20–30 second cycle time. This industry average allows operators to work efficiently without straining the power take-off unit or overheating the reservoir.
Undersizing creates frustrating operational bottlenecks. An undersized unit fails to move enough hydraulic fluid quickly. Extended cycle times directly reduce your daily payload cycles. If a driver waits 60 seconds instead of 30 seconds per dump, those lost minutes compound over a busy week. You also face increased engine wear. Slower lift times require operators to hold the truck at high idle for longer durations. This wastes fuel and accelerates engine fatigue.
Conversely, oversizing introduces dangerous mechanical risks. More flow does not automatically equal better performance. If you install a massive pump, fluid velocity can easily exceed the capacity of your hydraulic hoses and directional control valves. This creates extreme friction. Friction generates dangerous heat. Overheated fluid degrades rapidly, loses viscosity, and leads to blown seals. Furthermore, excessive flow creates a vacuum effect at the inlet. This causes pump cavitation, where air bubbles implode against internal metal components, destroying the unit from the inside out.
You cannot select a replacement unit based on guesswork. You need a strict mathematical framework to determine your exact requirements. The core evaluation metric relies on a simple primary formula for flow rate: Flow (GPM) = Cylinder Volume (Gallons) / Target Cycle Time (Minutes). We recommend following a structured approach to find your ideal numbers.
Step 1: Determine Cylinder Volume. First, you must know how much fluid your telescopic cylinder holds. You can usually locate the manufacturer's volume spec stamped on the cylinder housing or in the owner's manual. If you cannot find it, you must calculate it manually. Measure the bore, stroke, and number of stages in your telescopic cylinder to determine the total internal volume. Convert this measurement into gallons.
Step 2: Set the Cycle Time. Define realistic baseline assumptions for your lifting speed. Industry standards typically target a 0.5-minute (30-second) lift for standard applications. Heavy commercial setups might target a 20-second lift. Choose a time that matches your typical job site requirements without pushing safety limits.
Step 3: Apply the Formula. Divide your total cylinder volume by your target cycle time. For example, if your cylinder holds 15 gallons and you want a 0.5-minute lift, you divide 15 by 0.5. The theoretical flow required is 30 Gallons Per Minute (GPM).
Step 4: Account for Volumetric Efficiency. Real-world flow is always lower than theoretical flow. Internal leakage occurs inside all hydraulic units. Older designs typically operate at 85% to 90% volumetric efficiency. To get your actual required flow rating, divide your theoretical GPM by your efficiency rate. Using the previous example, 30 GPM divided by 0.85 equals roughly 35.3 GPM. You must purchase a unit rated for this higher number to achieve your desired 30-second lift.
Flow is never a static number. It scales directly with engine speed. Many operators make the mistake of reading a GPM rating on a box and assuming it applies to all conditions. The actual flow your system experiences depends entirely on how fast the input shaft spins.
You must calculate actual flow based on pump displacement and operating RPM. Displacement is measured in Cubic Inches per Revolution (CIR). This metric tells you exactly how much fluid moves through the unit every time the shaft completes one full turn. A higher CIR means more fluid per revolution.
Your Power Take-Off (PTO) gear ratio dictates the input shaft speed. It connects the engine to the hydraulic system. You must integrate this ratio into your calculations. Use this formula: Engine RPM × PTO % = Pump RPM. For instance, if your driver dumps at 1,000 engine RPM and your PTO ratio is 120%, the shaft spins at 1,200 RPM. You multiply 1,200 by the CIR, then divide by 231 (the number of cubic inches in a gallon), to find your actual operating GPM.
We warn strongly against a common adoption risk. Never evaluate a PTO Hydraulic Pump solely on its maximum rated GPM without verifying the required RPM. If a unit promises 40 GPM at 1,800 RPM, but you only operate at 1,000 RPM, you will fall far short of your expected lifting speed. Always align your displacement choice with your real-world dumping RPM.
Buyers generally choose between two primary architectures. You must objectively compare these designs based on mechanical reality, not flashy marketing claims. Each design serves specific operational environments.

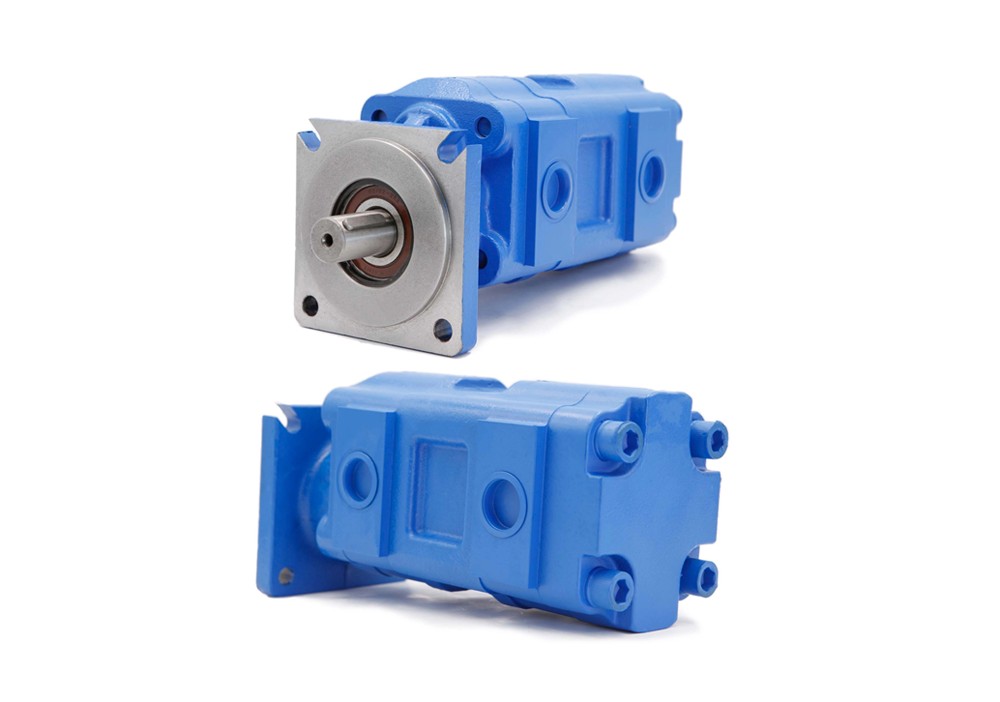

The Dump Truck Gear Pump remains the most common choice for standard applications. It operates by trapping fluid between two meshing gears and forcing it out the discharge port. This fixed displacement design is simple, rugged, and highly cost-effective.
It is best for standard dump operations and systems with lower pressure requirements (typically under 3,000 PSI). Because the internal clearances are relatively generous, this design handles high-contamination environments well. Dirt and minor debris in the oil will not destroy the unit immediately. However, you face several trade-offs. Gear units offer lower overall efficiency compared to other designs. They also suffer a shorter lifespan when subjected to continuous, high-pressure stress.
A Dump Truck Piston Pump utilizes a rotating barrel containing several pistons. As the barrel spins, the pistons stroke in and out, drawing in and expelling fluid. This design handles extreme pressures with exceptional efficiency.
It is best for heavy-duty commercial fleets and high-pressure systems exceeding 3,500 PSI. Multi-function trucks, such as dump and snowplow combinations, frequently rely on piston designs due to their versatility and power density. The trade-offs include a significantly higher upfront cost. Furthermore, these units are highly sensitive to fluid contamination. Their extremely tight internal tolerances require strict filtration maintenance; a small amount of debris can score the pistons and ruin the entire assembly.
Shortlisting Logic: We advise buyers to default to gear pumps for standard, single-axle dump applications. They provide reliable performance and easy maintenance. You should escalate to piston pumps only if your operating pressure or daily duty cycle strictly demands it.
Feature Category | Gear Architecture | Piston Architecture |
|---|---|---|
Pressure Limit | Generally under 3,000 PSI | Exceeds 3,500 PSI easily |
Overall Efficiency | Moderate (80-85%) | High (90-95%+) |
Contamination Tolerance | High (generous internal clearances) | Low (requires strict filtration) |
Typical Application | Standard dump, single-axle trucks | Multi-function trucks, severe duty |
Once you calculate your required flow and choose an architecture, you must evaluate specific technical dimensions. Missing even one of these hardware details can prevent installation or cause immediate failure upon startup.
Pressure (PSI) Matching: Flow (GPM) determines lifting speed, but pressure (PSI) determines your lifting force. You must ensure the pump's continuous pressure rating matches or slightly exceeds the system's relief valve setting. If the unit cannot handle the required pressure, it will stall or suffer internal damage when lifting a heavy load.
Rotation Direction: You face a high implementation risk if you buy the wrong rotation. Units are typically designated as left-hand (counter-clockwise), right-hand (clockwise), or bi-rotational. You must verify your PTO shaft's rotation direction before purchasing. Running a single-rotation unit backward will destroy it instantly.
Port Sizing: Verify that your inlet (suction) and outlet (pressure) ports can handle the calculated flow without restriction. The suction port must always be larger than the pressure port. A restricted suction port causes cavitation, starving the system of fluid.
Mounting Standards: Check the SAE mounting flange standards. The most common are SAE B (often 2-bolt or 4-bolt) and SAE C. You also need to match the shaft type, distinguishing between splined and keyed designs. Ensuring these dimensions match guarantees direct bolt-on compatibility without requiring custom fabrication.
Specifying a replacement unit for your heavy equipment requires far more than a simple visual match. You must align your cylinder volume, desired cycle time, and PTO speed to find the optimal GPM and PSI. Relying on accurate math prevents the costly extremes of sluggish performance or heat-induced catastrophic failure.
To ensure a successful upgrade, take the following next steps:
Measure your hoist cylinder physically to confirm total fluid volume.
Check your transmission tags to verify your exact PTO gear ratio.
Determine your standard engine RPM during a normal dumping cycle.
Consult a detailed technical spec sheet or speak with a sales engineer before finalizing your purchase.
A: Yes, but strictly within your system's limits. Exceeding the maximum flow rating of your directional control valve or hydraulic hoses causes extreme backpressure. This restriction generates severe heat, which degrades hydraulic fluid and destroys seals. Always verify valve flow limits before upgrading.
A: There is no single standard number. While 30 to 40 GPM is common for large commercial tandems, your exact need depends entirely on your specific telescopic cylinder volume and desired cycle speed. You must calculate flow based on your unique hardware.
A: Start with a quick diagnostic framework. First, check your hydraulic fluid levels and inspect filters. Next, listen for PTO slippage or metallic grinding under load. Finally, perform a flow test using an inline flow meter. This prevents unnecessary and expensive component replacements.
