Improper installation of a tipping valve leads to consequences far more severe than a simple oil leak on the shop floor. It frequently causes cylinder cavitation, immediate warranty voiding, and catastrophic safety hazards during tipping operations. For fleet mechanics and owner-operators, the difference between a reliable wet kit and a five-week failure often lies in the nuanced details of port selection, torque discipline, and sealant choices. A correctly installed system ensures precise control, protects the hydraulic pump from aeration, and extends the lifespan of the entire dumping mechanism.
This comprehensive guide covers the installation of hydraulic tipping valves, including both tank-mounted and chassis-mounted configurations for standard dump trucks and trailers. We designed this protocol for fleet mechanics, hydraulic technicians, and technical decision-makers who demand OEM-standard compliance. You will learn how to navigate critical mounting decisions, execute leak-free plumbing without damaging valve bodies, and configure pressure settings for maximum fleet versatility.
The "Teflon Ban": Why using PTFE tape on NPT ports is the #1 cause of valve warranty voiding and system contamination.
Return Line Criticality: Why the return line (T-port) must be sized larger than the pressure line to prevent backpressure and slow descent.
Torque Discipline: The importance of "wet torque" vs. dry torque to prevent cracking valve bodies.
Dual-Pressure Logic: Understanding when to configure for dual-pressure (End Dump vs. Live Bottom) to maximize fleet versatility.
The longevity of a wet kit begins long before you tighten the first bolt. It starts with selecting the correct mounting configuration and matching specifications to your specific application. A mismatch here creates permanent vibration issues or thermal inefficiencies that no amount of maintenance can fix.
Choosing between mounting the valve directly to the tank or separately on the chassis defines your plumbing complexity. Each setup serves a specific operational goal.

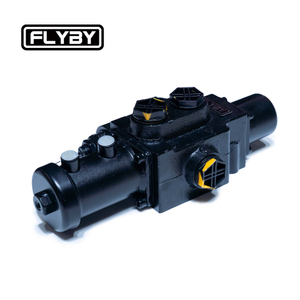

Tank-Mount Configurations:
This is the preferred method for compact, modern setups, such as those seen with Hyva-style systems. By mounting the tipping valves directly to the reservoir, you significantly reduce the number of high-pressure hoses required. Fewer hoses mean fewer potential leak points and lower inventory costs for replacement parts. It also simplifies the hydraulic circuit, reducing pressure drops between the tank and the valve.
Chassis-Mount Configurations:
Heavy-duty applications often require a chassis-mount setup. If your truck operates in extreme off-road conditions where tank vibration is severe, isolating the valve on the chassis frame protects the tank welds from stress fatigue. Additionally, if the hydraulic tank is located in a tight space that prevents direct valve access, a remote chassis mount becomes necessary to allow mechanics room for adjustments and servicing.
| Feature | Tank-Mount Valve | Chassis-Mount Valve |
|---|---|---|
| Leak Points | Minimal (Direct connection) | Higher (Requires extra hoses) |
| Vibration Isolation | Low (Moves with tank) | High (Isolated on frame) |
| Installation Speed | Fast | Slower (Requires bracket fabrication) |
| Ideal Application | Standard Road Tippers | Heavy Off-Road / Mining |
You must match the valve's flow rating to the output of your PTO and pump combination. A common error involves pairing a high-output pump (e.g., 50 GPM) with an undersized valve rated for 35 GPM. This restriction forces oil through narrow passages at high velocity, generating excessive heat and backpressure. Eventually, this cooks seals and degrades oil properties.
Conversely, an oversized valve on a low-flow system results in poor "feathering" control, making it difficult to lower the bed slowly. Ensure the pressure rating aligns with your hydraulic lift valve requirements. Most standard dump trucks operate between 2000 and 3000 PSI. Installing a valve rated for lower pressure than the cylinder requires creates a safety bottle-neck, while a valve rated too high without proper relief settings risks blowing cylinder seals.
Cast iron valve bodies are rigid and brittle. They do not flex. Before installation, inspect the mounting plate on the tank or chassis bracket. It must be perfectly flat and free of welding burrs, paint globs, or rust scale. If you tighten a valve against an uneven surface, the torque force will stress the casting, leading to hairline cracks that may not leak immediately but will fail under load. File down any imperfections to ensure flush contact.
Hydraulic systems store lethal energy even when the engine is off. Proper preparation prevents injury, while correct port identification prevents system destruction.
Never bypass safety steps to save time. Before touching a wrench, ensure the PTO is disengaged and the vehicle ignition is locked out (Lockout/Tagout). If the dump body is raised for any reason during this process, it must be mechanically blocked. Do not rely on the hydraulic system to hold the bed. Use OEM-approved body props or heavy timber blocks. Working under an unblocked bed is a fatal risk.

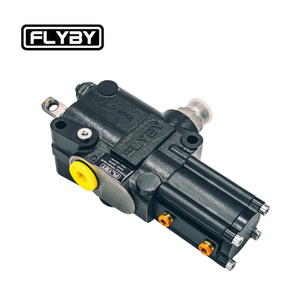

Misrouting hoses is the fastest way to destroy a pump or blow a tank. Most valves follow a standard logic, but casting marks can be obscured by paint. Always verify against the specific schematic for your tipper control valve.
P-Port (Pump/Inlet): Typically a 1" NPT port. This connects to the high-pressure line coming from the pump.
T-Port (Tank/Return): This is the most critical port, usually sized larger (1-1/4") to handle return flow. It must route directly to the reservoir.
C-Port (Cylinder): Connects to the base of the cylinder. This line carries oil to lift the bed and carries it back during lowering.

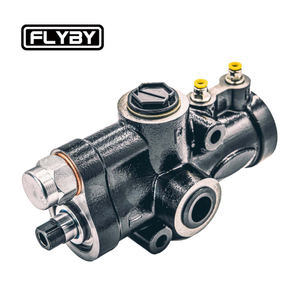

Tech Note: You will also find smaller 1/8" NPT ports for the air control lines. These receive pneumatic signals from the cab to shift the internal spool between "Raise," "Neutral," and "Lower."
We cannot stress this enough: Do not use Teflon tape on hydraulic tipping valves.
PTFE tape is prone to shredding. Small fragments of tape inevitably shear off during tightening and enter the hydraulic stream. These fragments lodge in the tight tolerances of the valve spool or the check valve seat. If a piece of tape jams the spool, the bed may stick in the "Up" position, or the valve may fail to bypass pressure, leading to pump explosion. Tape jams are the leading cause of warranty rejections.
Instead, use a high-quality anaerobic liquid sealant, such as Loctite 567, paired with a primer. Liquid sealant cures only in the absence of air within the threads, creating a monolithic seal that does not contaminate the oil.
The physical connection of lines requires precision. Over-torquing fittings is a common mistake that ruins valve bodies, while poor plumbing routing leads to aeration and pump noise.
When plumbing the T-Port (Return Line), size matters. The return line should be at least one size larger than the pressure line (e.g., if Pressure is 1", Return should be 1-1/4"). This minimizes backpressure, allowing the bed to descend smoothly by gravity.
If your valve is chassis-mounted and the return line enters the top of the hydraulic tank, you must install a "drop tube" inside the tank. This tube should extend to within a few inches of the tank bottom. Without a drop tube, returning oil splashes onto the surface of the reservoir oil. This turbulence creates foam (aeration). Aerated oil is compressible and destroys hydraulic pumps via cavitation. Ensure the suction line for the pump is also well below the minimum oil level.
Hydraulic fittings require specific torque strategies depending on their type. Brute force is never the answer.
NPT Fittings: These tapered threads seal by deforming. However, screwing a tapered fitting too deep into a cast iron valve body acts like a wedge. It can easily crack the housing. Standard 1" NPT fittings typically seal effectively at roughly 130 ft. lbs. If you have to exceed this to stop a leak, the threads are likely damaged or the sealant was applied incorrectly.
JIC Fittings: These rely on a 37-degree cone-to-cone seal. Use the "flats method" (tighten finger tight, then rotate a specific number of hex flats) or adhere to wet torque specifications. Over-tightening JIC fittings flares the cone, destroying the sealing surface permanently.
Using a tipping valve for dump truck applications requires adherence to "wet torque" values (lubricated threads), which are lower than dry torque values but provide more consistent clamping force.
Pneumatic controls shift the valve spool. Crossing these lines creates dangerous operational errors (e.g., the bed rising when you intend to lower it). Use color-coded airlines—standard industry practice suggests Green for Raise and Red for Lower—to prevent confusion during future maintenance. If the truck's air system is prone to moisture, install a dedicated inline air filter before the valve to prevent the air piston from freezing or corroding.
Most valves ship with factory presets, but every truck is different. Calibrating the pressure relief system protects the cylinder and structural integrity of the dump body.
The main relief valve acts as a fuse. If pressure exceeds the limit (e.g., trying to lift an overloaded bed), the valve opens to bypass oil back to the tank. To set this, you need a pressure gauge connected to the MPC (Manometer Port).
Test Procedure:
Install the gauge. Engage the PTO. Raise the cylinder to its full extension (gently). Continue to hold the "Raise" signal for a brief moment to force the system over relief. Read the gauge. Adjust the relief screw (usually a hex key with a locknut) to match the cylinder manufacturer's maximum rating. Never guess.
Fleet versatility is crucial. A tractor may pull an End Dump one day and a Live Bottom (Walking Floor) trailer the next. End Dumps typically require high pressure (approx. 3000 PSI) to lift heavy loads, while Live Bottoms run on motors requiring lower pressure (approx. 2000-2500 PSI) to prevent blowing out seals.
Advanced valves feature a dual-pressure selector. This is often a cartridge or a manual twist-lock on the valve body. By changing the position of this selector, you change the spring tension on the relief valve, effectively switching between two preset pressure limits. This setup provides a high ROI by allowing one hydraulic lift valve to service multiple trailer types, reducing the need for fleet spare parts inventory.
The installation is not complete until the system is bled and stress-tested. Air trapped in the system causes spongy operation and dangerous, jerky cylinder movements.
Never run a newly installed system dry at high RPM. Start the engine and engage the PTO at idle. Cycle the bed up and down multiple times without a load. If the cylinder is equipped with a bleeder screw at the top, carefully crack it open (while using proper PPE) until air sputters out and solid oil appears. If no bleeder screw exists, fully extending the cylinder usually forces air back to the tank. Check the tank level frequently; as the cylinder fills, the tank level drops.
Once bled, perform the hold test. Raise the bed to a safe height (loaded if possible, adhering to safety limits). Disengage the PTO and leave the valve in the "Neutral" position. Watch the cylinder rod against a fixed reference point for three minutes.
If the bed creeps down visibly, you have an internal leak. This usually indicates debris lodged in the check valve seat or a damaged spool seal. Immediate diagnosis is required. Do not release the truck to service until it holds position perfectly.
Proper tipping valve maintenance ensures the install lasts. Vibration settles components, so you must retorque all mounting bolts and hydraulic fittings after the first 50 cycles of operation. Additionally, check the hydraulic oil cleanliness. New components can introduce manufacturing debris. Aim for an ISO 4406 cleanliness target of 19/17/14 to protect the precision-machined spool in your new valve.
Correct installation of a hydraulic tipping valve is the single most important factor in extending the life of your wet kit. While the process is straightforward for skilled mechanics, the difference between success and failure lies in adherence to details: using liquid sealant instead of tape, sizing return lines correctly, and respecting torque limits on cast iron bodies. These steps prevent the most common failures, such as cracked housings and aerated oil.
We recommend reviewing the specific schematic PDF for your valve model before starting work. Ensure you have the correct adapters (NPT to JIC) and sealants on hand. Taking the time to install it right the first time protects your warranty and keeps your fleet tipping safely for years to come.
A: No. Using Teflon (PTFE) tape is the leading cause of valve failure and will immediately void most warranties. Tape shreds easily during installation, and the loose fragments travel through the oil. They can lodge in the spool or check valve, causing the dump bed to stick in the raised position or preventing the relief valve from opening. Always use an anaerobic liquid thread sealant and primer.
A: Slow descent is usually caused by a restriction in the return line. Check for a clogged return filter, a crushed return hose, or an undersized T-port line. If the return line is smaller than the manufacturer’s recommendation (typically it should be 1-1/4"), it creates backpressure that fights against the gravity lowering of the bed. Verify the air pressure signal is fully shifting the spool to the "Lower" position.
A: A 3-line system has a separate line for the pump inlet, cylinder, and tank return. It is safer and runs cooler because it allows oil to circulate back to the tank when in neutral. A 2-line system combines the inlet and return, which is obsolete for heavy-duty use. 3-line systems are the industry standard for modern safety and efficiency.
A: Locate the main relief valve adjustment screw, often covered by a cap nut. Connect a pressure gauge to the Manometer Port (MPC). Engage the PTO and gently bottom out the cylinder to build peak pressure. Turn the adjustment screw (usually clockwise to increase, counter-clockwise to decrease) until the gauge reads the cylinder’s rated maximum pressure. Never adjust without a gauge.
A: For most climates, ISO 32 or ISO 46 hydraulic oil is standard. In extremely cold environments, ISO 22 may be necessary, while hot climates might require ISO 68. The oil temperature should generally not exceed 180°F (82°C). Always check the pump and valve manufacturer’s specific viscosity recommendations to ensure proper lubrication film strength.
