Hydraulic systems rely on precise control of fluid flow and pressure to perform work efficiently. At the heart of many such systems is the hydraulic spool valve, a specialized type of Directional Control Valve designed to direct hydraulic fluid to the appropriate actuator — such as a cylinder or motor — enabling controlled motion. Whether used in industrial machinery, agricultural equipment, or a dump truck’s lifting system, understanding the basics of a hydraulic spool valve helps ensure the right valve is selected and properly integrated into a hydraulic circuit.
In this guide, we explore what a hydraulic spool valve is, how it operates, its key components, common configurations, and typical applications such as in vehicle hydraulics including dump truck systems.
A hydraulic spool valve is a type of Directional Control Valve that uses a sliding cylindrical spool inside a precision-machined housing to control the path that hydraulic fluid takes through a system. The movement of the spool within the valve body determines which internal passages connect or block fluid flow, allowing fluid to be routed to specific ports.
Inside the valve body, the spool has raised lands and narrower grooves. As the spool slides back and forth, these lands align with different ports — typically labeled P (pressure), T (tank/return), A, and B (work ports) — to allow fluid to enter or leave specific sections of the circuit.
The structure and movement of the spool directly enable the valve to control start/stop, direction, and sometimes speed of hydraulic fluid flowing to other components.
Understanding the physical components of a hydraulic spool valve helps explain its function:
Component | Description |
|---|---|
Valve Body (Housing) | Provides structural support and contains internal fluid passageways. |
Spool | The linear moving element that routes hydraulic fluid by aligning or blocking passages. |
Ports (P, T, A, B) | Entry and exit points for hydraulic fluid — pressure, return (tank), and work lines. |
Lands | Raised sections on the spool that create seals and block fluid. |
Springs or Actuators | Return the spool to neutral or assist shifting positions. |
Seals and O-rings | Prevent internal and external leakage. |
These components work together to create a reliable valve that controls hydraulic fluid with minimal leakage and precise routing.
The operation of a hydraulic spool valve is based on linear movement of the spool. When the spool is in the neutral or center position, all ports may be blocked or connected depending on the design (such as closed-center or open-center configurations).
When the spool shifts to one side, fluid from the pressure port (P) is routed to a work port (A or B) while the opposite work port is connected to the tank (T). This allows a hydraulic actuator — like a cylinder — to extend or retract. For example, shifting the spool left may route pressurized fluid to port A and return fluid from port B to the tank, while shifting right reverses these connections to change actuator direction.
The spool’s precise fit within the bore — often machined within tolerances of just a few microns — minimizes leakage and allows smooth, controlled movement of the fluid. Because of this, maintaining clean fluid is critical to prevent wear and sticking.
Hydraulic spool valves are often described by their port count and positions, such as 3/2 or 4/3 configurations:
Valve Designation | Ports | Positions | Common Function |
|---|---|---|---|
3/2 Valve | 3 ports | 2 positions | Simple on/off control or directional control for single-acting cylinders. |
4/3 Valve | 4 ports | 3 positions | Commonly used to control double-acting cylinders (extend, retract, neutral). |
4/2 Valve | 4 ports | 2 positions | Switches flow direction with two selectable positions. |
Spool valves can also be specified with different center conditions — such as open center (where all ports are connected at neutral), closed center, or tandem center — each affecting how the system behaves when the valve is not shifted.
The spool inside a hydraulic spool valve must be displaced to change the flow path. Common actuation methods include:
Actuation Type | Mechanism |
|---|---|
Manual | Lever, handle or pedal directly moves the spool. |
Mechanical | Cam or linkage actuates spool movement. |
Hydraulic Pilot | Uses hydraulic pressure to shift the main spool, often for higher flow systems. |
Solenoid (Electrical) | Electromagnetic actuation for remote or automated control. |

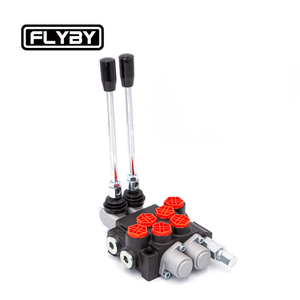

Manual actuation is common in mobile equipment such as construction machinery where direct control is needed. Solenoid actuation is widely used in automated or PLC‑controlled systems, offering precise electrical control.
The term Directional Control Valve refers broadly to valves that control fluid direction in a hydraulic circuit. A hydraulic spool valve is one of the most common types of directional control valves because its sliding spool design offers precise control and flexibility.
Directional control valves may also include poppet‑type or rotary valves, but spool valves dominate many applications due to their ability to handle multiple flow paths and their adaptability in modular valve stacks.
In heavy equipment and vehicle hydraulics — such as the lift systems on a dump truck — the hydraulic spool valve directs pressurized fluid from the pump to cylinders that raise and lower the truck body. Proper control of fluid direction ensures consistent lifting, safe lowering, and precise operator control.
For example, when tipping a dump truck, a spool valve routes flow to the lift cylinder and then returns flow to the reservoir as the body lowers. Safety, predictable motion, and system responsiveness all depend on accurate routing by the spool valve.
Fluid enters a hydraulic spool valve through the pressure (P) port. The position of the spool determines which work port receives fluid and which port returns fluid to the tank (T). When the valve is centered, ports may be blocked, connected, or controllable depending on the design.
Correct alignment of lands and grooves on the spool enables routing to the desired actuator while preventing unwanted flow paths or leakage. This fluid routing is what enables controlled motion — such as extending or retracting cylinders or stopping them in neutral positions.
Hydraulic spool valves may vary by design and function:
Sliding Spool Valves: The most common type, where the spool slides inside the valve bore.
Stack Valves: Multiple valves assembled together for complex control.
Proportional Spool Valves: Designed for gradual control of flow and direction instead of binary on/off positions.
Each type offers different advantages depending on system requirements such as flow sensitivity, speed control, or automation.
Hydraulic spool valves require clean hydraulic fluid to operate reliably. Contamination can damage spool lands or bore surfaces, causing sticking or erratic movement. Regular filtration and maintenance help extend valve life.
Correct sizing of valve ports and careful installation ensure minimal pressure drop and responsive control. Oversized valves can create excess cost and space requirements, while undersized valves lead to increased heat and sluggish actuator behavior.
Feature | Key Details |
|---|---|
Definition | A valve that uses a sliding spool to route hydraulic fluid. |
Purpose | Directs fluid flow paths in hydraulic circuits. |
Common Application | Actuator control in machinery, vehicle hydraulics, including dump truck lifts. |
Actuation Methods | Manual, mechanical, hydraulic pilot, solenoid. |
Valve Types | 3/2, 4/3, proportional, stack configurations. |
Importance | Enables precise direction and control of hydraulic motion. |
1. What is the difference between a hydraulic spool valve and other directional valves?
A hydraulic spool valve specifically uses a sliding spool to route fluid between ports, while other directional valves (like poppet valves) may use pistons or balls to achieve similar control.
2. How many positions can a spool valve have?
Spool valves can have multiple positions such as 2, 3, or more, with neutral center positions (open center, closed center) depending on design and application.
3. How does a hydraulic spool valve affect the performance of a dump truck’s hydraulic system?
By routing pressure and return fluid to the correct actuator ports, the valve enables smooth, controlled lifting and lowering of a dump truck body.
4. Why is fluid cleanliness important for spool valves?
Contaminated fluid can damage the spool and housing precision surfaces, causing sticking or erratic control behavior.
5. Can spool valves control both flow and direction?
Yes — standard spool valves control direction and with certain designs (such as proportional spool valves), they can also meter flow to influence speed and motion intensity.
