Replacing or upgrading a dump truck's hydraulic system requires exact mechanical precision. Fleet managers and upfitters know every component must work in harmony to maximize payload efficiency and protect daily profit margins. A mismatched system often leads to frustratingly slow cycle times, catastrophic shaft seal failures, overheated fluid, or a completely stalled hoist cylinder under heavy load. These avoidable system failures cost significant time and money on the job site. We will provide a strict, highly technical framework for selecting a hydraulic gear pump based entirely on your exact mechanical requirements. You will learn how to properly evaluate your hoist cylinder size, PTO transmission output limits, and daily operational demands to make the correct choice. Our step-by-step approach ensures you install a durable, high-performing fluid power system capable of handling rigorous daily abuse without premature wear.
Match Flow to Cycle Time: GPM determines the speed of the hoist; over-sizing GPM without upgrading lines causes overheating.
Pressure Dictates Payload: A high pressure hydraulic gear pump must match the relief valve settings and the cylinder’s maximum load capacity (typically 2,000–3,000 PSI).
Rotation is Non-Negotiable: Pump rotation must perfectly oppose PTO rotation; installing a standard pump backward causes instant seal failure.
Mounting Integrity: SAE standard flanges and precise spline counts are required to prevent premature shaft wear and driveline failure.
The primary driver behind any fluid power selection remains the telescopic hoist cylinder. You must assess this massive component carefully before looking at power units. Start by documenting the total cylinder volume in gallons. You calculate this by measuring the internal cylinder bore and the maximum stroke length. This critical baseline volume measurement anchors all subsequent calculations. If you ignore cylinder volume, you risk installing a unit incapable of extending the hoist fully.
Next, you need to establish target cycle times for your specific hauling application. Operators often demand specific lifting speeds to maintain daily route efficiency. For example, lifting a massive 15-yard gravel bed in 20 seconds requires significantly more fluid flow than lifting it in 40 seconds. Calculate acceptable lift and lower times before shopping for new components. Faster operational cycles increase productivity but demand larger hoses and larger reservoirs to prevent severe heat buildup.
Finally, verify the Power Take-Off (PTO) continuous torque rating. Upgrading your system to a larger displacement unit increases the mechanical load drastically. You must ensure the PTO transmission gear can handle this increased strain safely. Typical heavy-duty truck PTOs handle between 200 and 400 ft-lbs of continuous torque. Exceeding torque limits causes premature driveline fatigue and sheared gear teeth. Always check the transmission manufacturer specifications to align these mechanical limits perfectly.
Understanding fluid flow rate mathematics fundamentally prevents sluggish hoist operation. You calculate theoretical Gallons Per Minute (GPM) using a very specific standard industry formula. Multiply the pump RPM by its volumetric displacement in cubic inches per revolution, then divide that resulting number by 231. There are exactly 231 cubic inches in one US gallon. This core calculation yields your theoretical baseline GPM. However, implementation reality dictates a much different approach to monitoring engine RPM.
Engine RPM during an active, loaded dumping cycle is almost always elevated by the operator. Operators frequently run their heavy truck engines between 1,000 and 1,200 RPM to expedite the dumping process. Always calculate your target GPM at this elevated operational RPM rather than normal engine idle. Sizing a system based strictly on idle speed results in dangerously fast, uncontrollable hoist operation when the operator actually revs the diesel engine on the job site. Excessive speed can destabilize a raised dump bed.
Next, evaluate your operating pressure (PSI) requirements carefully. Heavy-duty applications, such as tandem or tri-axle dump trucks, demand incredibly robust solutions. You will likely need a reliable high pressure hydraulic gear pump to manage extreme, shifting payloads. Fluid pressure directly relates to payload weight and the internal cylinder diameter. Smaller diameter cylinders fundamentally require much higher pressure to lift identical material weights.
Safety Warning: Maximum rated PSI must always exceed your system's main relief valve setting. We highly recommend maintaining a safety margin of at least 10 to 15 percent. This critical buffer prevents internal gear wear, excessive fluid bypassing, and dangerous pressure spikes when the cylinder reaches full physical extension.
Incorrect shaft rotation remains one of the leading causes of premature system failure. You must definitively identify the required rotation before purchasing any replacement components. Look directly at the exposed PTO shaft while it operates. If the PTO turns clockwise (CW), your driven unit requires a counter-clockwise (CCW) configuration. They must perfectly oppose one another to function correctly. The standard industry method involves viewing the unit directly from the exposed shaft end to determine proper rotation direction.

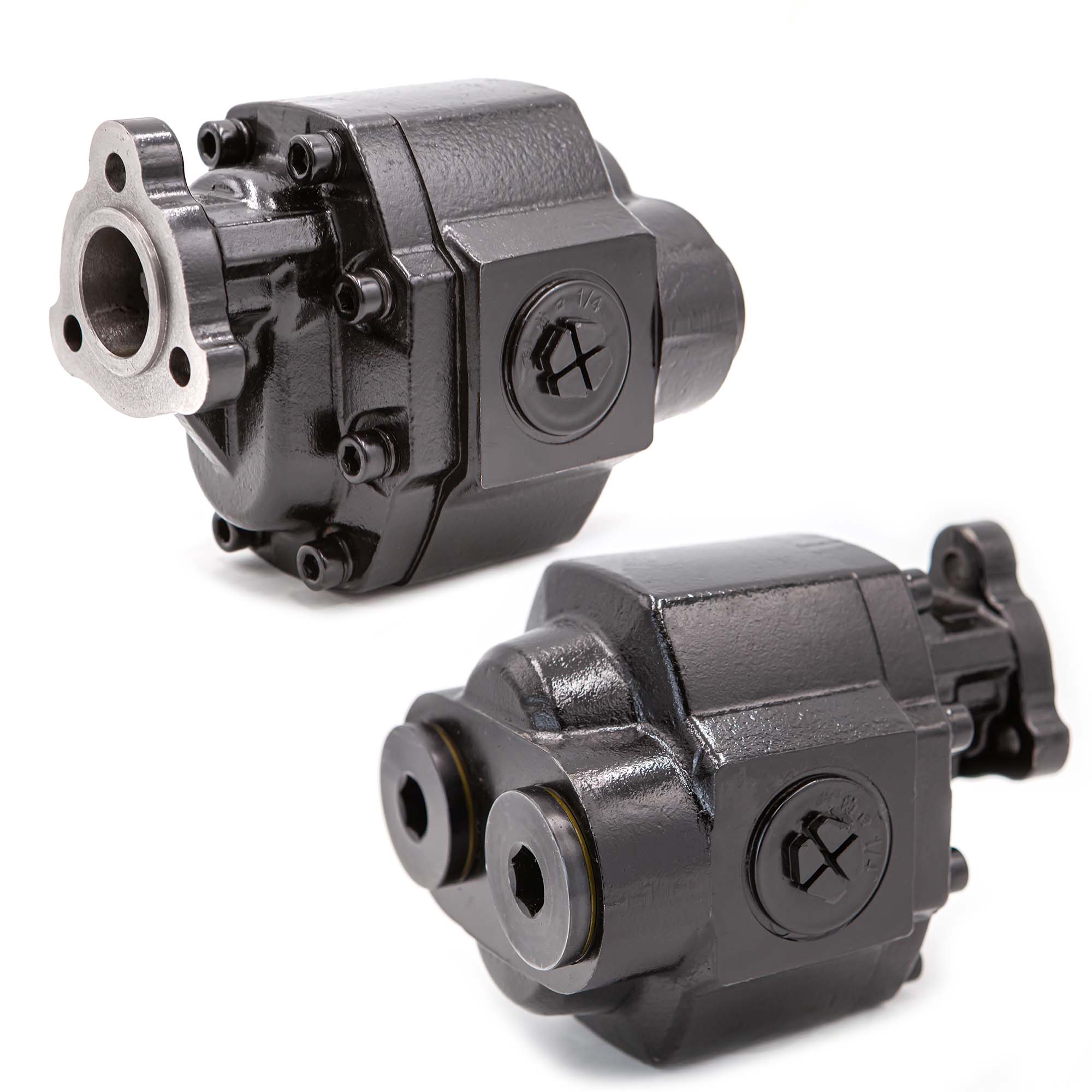

Many large fleet managers actively evaluate the use of a bidirectional hydraulic gear pump to simplify routine maintenance. This flexible alternative offers notable long-term benefits for comprehensive fleet standardization. It heavily reduces ordering errors by inexperienced staff and simplifies inventory management across multiple truck chassis builds.
However, strict implementation constraints do exist with bidirectional units. You must plumb the inlet and outlet ports very carefully based on the resulting field rotation. Furthermore, you will often need an external drain line to safely relieve internal casing pressure back to the fluid reservoir. Plumb this drain line without restrictions.
Failure to match shaft rotation correctly carries immediate and severe consequences. Installing a standard unidirectional unit backward causes catastrophic destruction. You risk blowing the front shaft seal instantly upon PTO engagement. This costly mistake also introduces severe fluid aeration, rapid internal gear seizure, and widespread metal contamination throughout the reservoir.

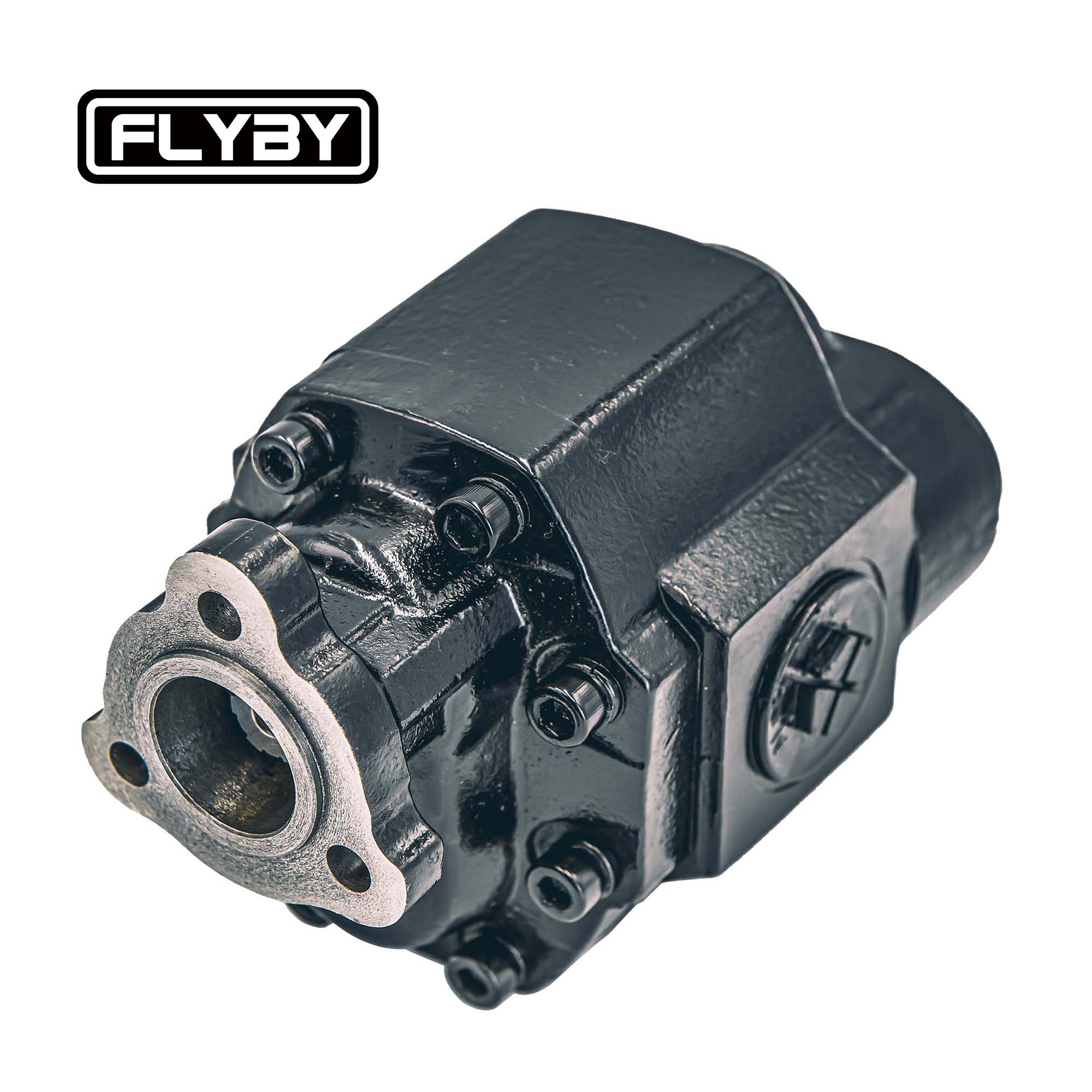

You must thoroughly evaluate your specific truck chassis clearance to select the proper physical mounting configuration. Heavy-duty mobile systems generally fall into two distinct structural categories: direct mount and remote mount setups. Clearances dictate your ultimate choice.

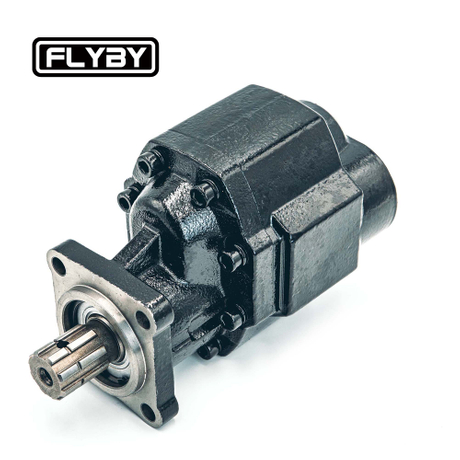

Direct mount systems utilize highly standardized SAE flanges for incredibly secure attachment. You will typically encounter rugged 2-bolt or 4-bolt SAE B and SAE C heavy cast bolt patterns on modern PTO transmissions. Precise input shaft selection is incredibly critical here to prevent spline stripping. Match the internal spline counts exactly to your mating PTO output shaft. Common heavy-duty sizes include 7/8-inch 13-tooth or 1-inch 15-tooth splined connections. This direct physical setup completely eliminates exposed rotating driveline parts, enhancing operator safety. It also ensures much easier, faster mechanical installation in exceptionally tight spaces under the truck cab.
Remote mount systems use a secondary mechanical driveshaft for rotational power transmission. Upfitters choose this method when physical clearance around the PTO housing is insufficient for bulky direct mounting. This implementation requires strict, ongoing mechanical checks. You must maintain precise driveline angles to prevent destructive harmonic issues. Always use properly phased Spicer-style U-joints and high-strength keyed drive shafts. These intermediate shafts are usually solid round stock, featuring a deep square keyway for reliable torque transfer. Proper angular alignment prevents severe driveline vibration, seal weeping, and catastrophic input bearing failure.
Configuration Feature | Direct Mount Systems | Remote Mount Systems |
|---|---|---|
Primary Chassis Application | Adequate clearance around PTO housing | Severely restricted PTO clearance areas |
Standard Connection Type | Rigid SAE Flanges (B or C standard) | Mechanical Driveshaft and U-Joints |
Typical Shaft Interface | Internally Splined (e.g., 13 or 15 tooth) | Solid Round Keyed Shafts |
Inherent Vibration Risk | Very Low (rigid mechanical coupling) | High (if operating angles remain incorrect) |
Maintenance Requirements | Minimal ongoing alignment checks | Frequent U-joint greasing and phasing checks |
Your truck's specific heavy frame layout heavily dictates your final plumbing and porting strategy. Assess your lower chassis clearance thoroughly before choosing machined port locations. Side port and rear port casing designs each serve entirely distinct hose routing needs. Heavy steel frame rails, suspension brackets, and hot exhaust pipe routing dictate exactly where your large inlet and pressure hoses must safely connect. Select a port orientation offering the most direct, well-protected hose path away from extreme heat sources.
Next, closely evaluate your directional control valve requirements. Integral valves neatly package the manual directional control and pressure relief functions directly inside the cast iron unit casing. We often call these integrated cast units dump pumps in the mobile fluid power industry. Standard gear setups require remote directional valve banks mounted securely elsewhere along the outer chassis rails. Integrated systems save incredibly valuable frame space, but remote modular valves offer much easier individual component replacement when a single spool seal ultimately fails from wear.
System contamination and inlet fluid cavitation present major, costly implementation risks. You must proactively mitigate these common engineering failures through smart design.
Proper Filtration Requirements: Always install a high-quality, high-flow return-line filter assembly. A dedicated 10-micron absolute standard filter efficiently prevents microscopic metal debris from continuously circulating through precision gear tolerances. Most reputable mobile fluid power manufacturers absolutely require documented proper filtration maintenance to validate their factory warranties.
Cavitation Prevention: Never use undersized rubber suction lines from your reservoir. Small internal diameter lines physically starve the rapidly spinning internal gears of vital, cool hydraulic fluid. This severe restriction causes destructive vapor cavitation, excessive high-pitched whining noises, and rapid internal housing destruction. Always size suction lines generously to minimize inlet fluid velocity, especially in cold weather.
Selecting the perfect power unit requires strict adherence to documented mechanical specifications. Relying on visual guesswork practically guarantees expensive operational downtime and premature component failure on the job site. A methodical approach safeguards your fluid power system reliability.
Before generating a formal purchase order, use this strict go/no-go checklist to verify your engineering selection:
Verify the physical PTO shaft rotation perfectly opposes your chosen driven shaft rotation.
Confirm the internal spline count and external SAE flange size match your PTO interface exactly.
Ensure the target operating GPM matches your total cylinder volume and desired daily cycle speed.
Validate your maximum rated PSI safely supports your absolute heaviest payload capacity.
Your immediate next step involves deeply auditing your current chassis setup. We highly recommend scrubbing and consulting the existing metal data tag if it remains legible under the grime. Otherwise, immediately contact a certified fluid power specialist. Provide them your exact PTO model number, transmission series, and total hoist cylinder specifications for precise engineering cross-referencing. Taking these meticulous steps ensures a remarkably safe, efficient, and exceptionally long-lasting hydraulic system upgrade.
A: Yes, but you must ensure your PTO can handle the increased mechanical torque. Your hydraulic reservoir, rubber lines, and directional valves must also be large enough to handle the dramatically increased flow. Failing to upgrade these supporting components induces excessive heat, severe system backpressure, and premature wear.
A: You risk deadheading the entire system or pulling large amounts of air into the fluid. You must plumb the inlet and outlet ports strictly according to the actual driven rotation of your PTO. Incorrect porting causes immediate fluid aeration and potentially catastrophic internal casing failure.
A: Two-line systems are standard for intermittent, short-duration use. Three-line systems feature a dedicated return line directed straight to the tank. They are absolutely required for continuous duty applications or when you need to avoid fluid overheating during exceptionally long, demanding operational cycles.
