A hydraulic reservoir is often the most overlooked component in system design, yet it serves as the beating heart of your machinery’s fluid conditioning. Many engineers treat a Hydraulic Oil Tank simply as a bucket to hold fluid, but this perspective ignores its critical roles as a thermal regulator, air separator, and contaminant settler. Failing to size this component correctly creates a cascade of mechanical issues that can destroy expensive pumps and actuators.
The risks of improper sizing are high. Undersizing a tank forces fluid to recirculate too quickly, leading to dangerous heat buildup, foaming, and pump cavitation. Conversely, oversizing wastes valuable capital, occupies limited machine footprint, and significantly increases the Total Cost of Ownership (TCO) during fluid changes. The goal of this guide is to move beyond the basic "Rule of Thumb" and provide precise, application-specific sizing logic that ensures system longevity and efficiency.
In this article, you will learn how to calculate the exact volume required for your application, how to adjust for thermal expansion, and how material selection impacts your cooling strategy.
The "3x Rule" is Nuanced: While the standard dictates tank volume should be 3x pump flow, mobile applications often run successfully at 1-2x, while critical industrial systems may require 4-5x.
Safety Margins Matter: Calculated volume must include an additional 10–15% buffer for thermal expansion and air separation space.
Material Impact: The choice between Steel, Aluminum, and Plastic Hydraulic Oil Tanks significantly alters heat dissipation capabilities, influencing the required volume.
The "Residence Time" Factor: The ultimate metric is ensuring oil stays in the tank long enough (30–60 seconds) to de-aerate and cool.
To calculate the correct size for a reservoir, we must first redefine its purpose. If storage were the only requirement, a simple jerrycan connected to a suction line would suffice. However, a professional hydraulic system relies on the tank to actively condition the fluid between cycles. The volume you calculate must be sufficient to perform three specific physical functions.
Heat is the enemy of hydraulic efficiency. As fluid moves through valves and restrictions under pressure, energy loss manifests as heat. In many systems, the tank acts as a passive radiator. The relationship between fluid volume and surface area is linear; a larger tank generally offers more surface area for heat to transfer into the surrounding atmosphere.
When you undersize a tank, you reduce the surface area available for this passive cooling. This forces the oil to carry a higher thermal load back into the pump. If the tank is too small to dissipate the generated heat, the system stabilizes at a temperature that may exceed the oil’s breakdown point, destroying seals and reducing viscosity. This often necessitates the addition of expensive external heat exchangers to compensate for the lack of tank volume.
Perhaps the most critical function of the reservoir is managing entrained air. As hydraulic fluid returns from the system, it is often turbulent and aerated. If this air-rich fluid is immediately drawn back into the pump suction line, it causes gaseous cavitation. This phenomenon sounds like gravel rattling inside the pump and causes rapid erosion of metal surfaces.
To prevent this, the tank must provide adequate "Residence Time." This is the duration a specific particle of oil stays in the tank before circulating again. Physics dictates that air bubbles need time to rise to the surface and escape. A larger volume ensures the fluid velocity drops significantly, creating a calm zone where deaeration occurs naturally.
Hydraulic systems inevitably generate particulate contamination. While filters capture the majority of this debris, the reservoir serves as a final gravity trap. When oil enters a large volume of fluid, its velocity decreases. This drop in speed allows heavier particles—such as metal shavings or sludge—to fall out of suspension and settle at the bottom of the tank.
A properly sized tank with a sloped bottom allows you to drain these contaminants during maintenance. If the tank is undersized, the fluid remains in a constant state of high-velocity turbulence, keeping contaminants suspended and forcing them back into the sensitive components of your system.
Finally, the tank acts as a buffer for differential cylinder volumes. When a hydraulic cylinder extends, it fills with a certain volume of oil. When it retracts, the rod occupies space inside the cylinder, meaning less oil is required to fill the retraction side. The excess oil must go somewhere. The tank accommodates this fluctuation in fluid level, breathing in and out as the system cycles. Without adequate ullage (air space) and volume, this differential flow could burst a tank or starve a pump.
Now that we understand the functional requirements, we can apply mathematical logic to determine the necessary capacity. We recommend a three-step approach that starts with industry standards and refines them with safety margins.
The industry uses a standard baseline derived from the pump's flow rate. While this is a starting point, it varies significantly based on the environment.
Industrial Standard: For stationary plant machinery, the accepted rule is Pump Flow (GPM or LPM) × 3. For example, a system with a 20 GPM pump should theoretically use a 60-gallon tank. This large multiplier prioritizes cooling and maintenance intervals over space savings.
Mobile/Compact Standard: For mobile equipment like skid steers or excavators, space and weight are premium commodities. Here, the standard is compressed to Pump Flow (GPM or LPM) × 1.5 to 2. A 20 GPM mobile pump might operate with a 30 to 40-gallon tank, relying on external cooling to handle the heat load.
The "Rule of Thumb" is a rough estimate. A more engineering-focused approach calculates volume based on Residence Time. This ensures the fluid rests long enough to release air.
Formula:
$$Volume = Pump Flow \times Target Residence Time$$
Benchmark Targets:
Mineral Oils: Target 30–60 seconds.
Water-Glycol / High Viscosity Fluids: Target >60 seconds (air bubbles rise slower in thicker fluids).
Example: If your pump moves 100 liters per minute (LPM) and you require a 60-second (1 minute) residence time, you need 100 liters of working oil volume.
The calculated volume from Step 2 is your "Working Volume." However, you cannot build a tank exactly this size. You must add buffer space to prevent catastrophic spills and starvation.
| Margin Type | Recommendation | Reasoning |
|---|---|---|
| Thermal Expansion | +10–15% Volume | Oil expands as it heats up. If you fill a cold tank to the brim, it will overflow once the system reaches operating temperature ($V_{oil}$ increases as $T$ rises). |
| Air Gap (Ullage) | +10% Empty Space | You need an air cushion at the top of the tank. This prevents spillover during emergency shutdowns or when large cylinders retract rapidly. |
| Suction Line Dead Volume | Variable | Fluid located below the suction line inlet is unusable. You must account for this "dead zone" to ensure the pump never draws in air, even at minimum levels. |
Once you have a target volume in gallons or liters, you must translate that into physical steel or plastic dimensions for fabrication. The shape of the tank significantly impacts where it can be mounted and how efficient it is at deaeration.

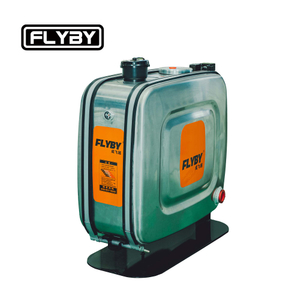

Rectangular tanks are the most common for industrial power units (HPUs). They are easy to manufacture, simple to mount, and provide excellent flat surface areas for mounting motor-pump groups.
Formula: $$Volume = Length \times Width \times Height$$
Conversion Factor: There are approximately 231 cubic inches in 1 US Gallon.
Example: If you need a 20-gallon tank, you need roughly 4,620 cubic inches of volume ($20 \times 231$). A tank measuring $20" \times 15.5" \times 15"$ would provide roughly 4,650 cubic inches, meeting the requirement.

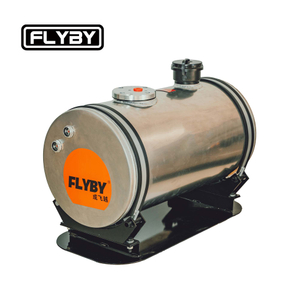

Cylindrical tanks are frequently used in mobile applications where they are strapped to the side of a chassis. Round tanks naturally resist internal pressure and vacuum forces better than rectangular ones, making them ideal for pressurized reservoirs.
Formula: $$Volume = \pi \times r^2 \times Length$$
While structurally superior, round tanks can be difficult to accessorize. Mounting baffle plates, return filters, and sight glasses on a curved surface requires specialized welding and adapters compared to the flat surfaces of a rectangular box.
The geometry affects performance. A tall, narrow tank might meet the volume requirement mathematically, but it fails functionally. Deep, narrow tanks reduce the surface area available for air bubbles to escape. Conversely, a wide, shallow tank maximizes deaeration surface area but risks exposing the pump suction to air if the machine tilts (common in mobile equipment).
Irregular shapes—often necessary to fit inside crowded vehicle chassis—complicate the placement of internal baffles. Baffles are crucial for forcing oil to take a long path from the return line to the suction line, maximizing the effective residence time.
The material of your reservoir is not just a structural decision; it is a thermal one. The heat transfer coefficient of the tank walls dictates whether you can rely on passive cooling or if you must install expensive external coolers.

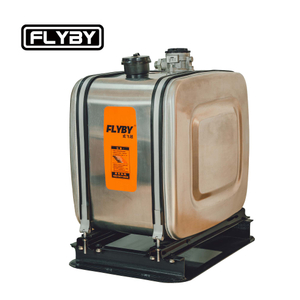

The traditional standard for heavy industry is the Steel Hydraulic Oil Tank. Steel offers immense structural strength and is simple to repair or modify in the field using standard welding equipment.
Pros: High durability and low raw material cost. Steel conducts heat efficiently, which is critical for systems that rely on the tank for cooling. It withstands high internal pressures and external impacts.
Cons: It is heavy, adding significant weight to mobile machinery. The biggest drawback is internal corrosion; condensation inside the air gap can cause the tank to rust from the inside out, contaminating the oil.
Best For: Stationary industrial units, mining equipment, and high-heat environments where durability is paramount.

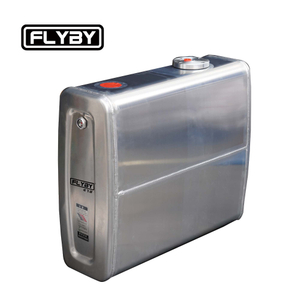

For applications where weight and performance are critical, the Aluminum Hydraulic Oil Tank is the superior choice. Aluminum has a much higher thermal conductivity than steel, effectively acting as a giant heat sink.
Pros: Superior heat transfer allows for smaller tank volumes in some applications. It is significantly lighter than steel, which translates to fuel savings for trucks and mobile equipment. It is also naturally resistant to corrosion, preventing rust contamination.
Cons: The material cost is higher than steel. Aluminum also has a finite fatigue life; in high-vibration environments, brackets and welds can develop stress cracks over time if not properly isolated.
Best For: Mobile hydraulics, road transport equipment, and applications needing maximum passive cooling.

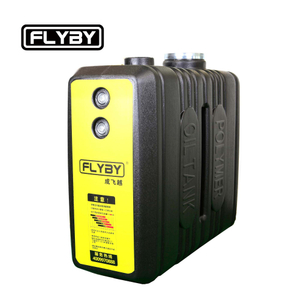

Modern injection molding has popularized the Plastic Hydraulic Oil Tank, typically made from high-density polyethylene (HDPE). These are game-changers for compact equipment manufacturing.
Pros: Ultra-lightweight and completely immune to corrosion. Plastic tanks can be molded into complex, irregular shapes that utilize "dead space" inside a machine's chassis. At high volumes, they have the lowest unit cost.
Cons: Plastic is a thermal insulator. It provides zero heat dissipation. If you switch from steel to plastic without adding an external oil cooler, your system will likely overheat. They also have limited resistance to internal pressure or vacuum.
Best For: Small mobile units, power packs, and systems where an external oil cooler is already present.
In the real world, you rarely have the luxury of unlimited space. Engineers are often forced to downsize reservoirs to fit tight constraints. You can break the "3x Rule" and reduce the tank footprint, but only if you compensate with smart design optimization.
The duty cycle is your first leverage point. If a machine operates intermittently—running for 5 minutes and resting for 20—the heat load is not continuous. In these scenarios, you can safely downsize the tank because the oil has time to cool and de-aerate during the off-cycle. However, for 24/7 continuous operation (like a conveyor drive), you must stick to the sizing rules or oversize the tank to maintain thermal equilibrium.
Turbulence is the primary reason we need long residence times. By installing high-quality return line diffusers, you can significantly reduce the velocity of the fluid entering the tank. Diffusers gently disperse the oil, preventing foaming and agitation. This allows you to achieve effective deaeration with a shorter residence time, enabling the use of a physically smaller tank.
The most effective way to shrink a reservoir is to remove the cooling burden from it. By installing an air-blast or water-cooled heat exchanger, you no longer rely on the tank volume for thermal management. This allows you to size the tank strictly for pump flow and differential cylinder volume, often reducing the size to 1x or 1.5x pump flow.
If you decide to go smaller than the recommended standard, ensure your design meets these criteria:
Is the return flow laminar? Ensure return lines enter below the fluid level to prevent splashing.
Is there a baffle plate? A physical barrier must separate the hot, dirty return oil from the clean suction oil.
Is the breather filter sized correctly? Smaller tanks experience rapid level changes; the breather must handle high air flow to prevent tank implosion or pressurization.
Sizing a hydraulic reservoir is a balancing act between the "Safe 3x Rule" and the spatial realities of your machine. It requires a holistic view of the system's thermal and mechanical needs rather than a simple calculator input.
For industrial plants where space is cheap and longevity is critical, prioritize volume. Stick to Steel Hydraulic Oil Tanks with capacities greater than 3x pump flow to ensure cool, clean oil for decades. For mobile equipment where every pound counts, prioritize optimization. Utilize Aluminum Hydraulic Oil Tanks or plastic variants, sized at roughly 1.5x flow, but support them with robust external cooling and high-efficiency filtration.
Before committing to a fabrication order, audit your specific pump flow, duty cycle, and thermal load. A few minutes of calculation today prevents years of overheating issues tomorrow.
A: The general industry standard suggests a tank volume of 3 times the pump flow rate per minute (e.g., 30 gallons for a 10 GPM pump) for stationary industrial applications. For mobile equipment with space constraints, the rule is typically compressed to 1.5 to 2 times the pump flow, provided there is adequate external cooling.
A: You should leave at least 10% of the total tank volume as empty air space. This "ullage" accommodates the thermal expansion of the fluid as it heats up and provides room for air bubbles to escape the fluid surface without causing the tank to overflow.
A: Yes, but with a major caveat. Plastic is a thermal insulator and will not dissipate heat like steel or aluminum. If you use a plastic tank for continuous duty, you must install an external oil cooler (heat exchanger) to manage the thermal load, or the system will overheat.
A: Large hydraulic cylinders hold more fluid when extended than when retracted (due to the rod volume). When all cylinders retract simultaneously, the fluid level in the tank rises. Your tank must be large enough to hold this total differential volume without overflowing, in addition to the standard operating fluid level.
A: Residence time is the duration fluid stays in the tank before recirculation. It is critical because air bubbles and solid contaminants need time to separate from the oil. A target residence time of 30–60 seconds allows entrained air to rise to the surface, preventing pump cavitation and ensuring smooth operation.
