Every second counts when you operate a commercial fleet. Faster dump cycles mean you complete more loads per shift, directly driving your daily profitability. A sluggish dump body often frustrates operators and owners alike. When the bed lifts too slowly, many immediately assume their pump is failing and needs replacement. However, cycle speed rarely comes down to simple part wear. It relies heavily on the exact mathematical relationship between pump displacement, input RPM, and cylinder volume.
This article breaks down the physical mechanics behind hydraulic displacement and system flow. You will learn how to properly size a Dump Truck Hydraulic Pump for optimal cycle times. We also explore the engineering realities, PTO constraints, and mechanical risks of upgrading flow rates in your system. By understanding these dynamics, you can make informed, evidence-based upgrade decisions.
Displacement Dictates Flow (Speed): The volume of fluid moved per revolution (CIR) combined with input RPM determines Gallons Per Minute (GPM), which directly controls how fast the cylinder extends.
Pressure Dictates Force (Capacity): Increasing displacement will not help a truck lift a heavier load; load capacity is determined by system pressure (PSI).
System Bottlenecks Matter: Upsizing a pump without auditing PTO constraints, hose diameters, and reservoir capacity leads to cavitation, fluid overheating, and system failure.
Pump Selection Determines Consistency: Choosing between a Dump Truck Gear Pump and a Dump Truck Piston Pump depends heavily on operating pressure requirements and duty cycle frequency.
Hydraulic lift speed is not a mystery. It follows strict rules of fluid dynamics. To troubleshoot a slow dump body or specify a faster system, you must first understand how displacement generates flow.
Engineers measure pump displacement in Cubic Inches per Revolution (CIR) or cubic centimeters per revolution (cc/rev). This metric describes the exact volume of fluid the pump internals move during one complete rotation of the input shaft. A pump boasting a larger CIR simply pushes more oil per turn. If you want a faster lift without increasing engine speed, you generally need a larger displacement.
Displacement alone does not equal speed. The pump must spin. The combination of displacement and speed creates Flow Rate, measured in Gallons Per Minute (GPM). We calculate this using a standard industry formula:
Flow Rate (GPM) = (Pump Displacement × Pump RPM) / 231
The number 231 represents the amount of cubic inches in one U.S. gallon. If you install a 4.0 CIR pump and spin it at 1,000 RPM, it produces approximately 17.3 GPM theoretically. Understanding this formula empowers you to predict exactly how a component change will affect your cycle times.
Your dump cylinder acts like a large, expanding fluid reservoir. To calculate your target lift speed, you must divide the total volume of your telescopic cylinder by the pump's GPM output. If your multistage cylinder requires 15 gallons of oil to reach full extension, a pump delivering 15 GPM will raise the bed in exactly one minute. Delivering 30 GPM cuts that lift time down to 30 seconds. The math scales perfectly until system inefficiencies interrupt it.
Operators frequently report a common misconception from the field. They notice their bed lifts quickly when empty but crawls when fully loaded. The laws of hydraulics dictate that lift speed should remain relatively constant regardless of payload weight. Pressure handles the weight; flow handles the speed.
If speed drops significantly under a heavy load, you are witnessing an inefficiency, not a rule of physics. Provided the truck engine maintains its RPM, a slowdown usually points to internal pump wear, fluid bypassing seals, or a relief valve opening prematurely due to over-pressurization.
Selecting the right pump architecture profoundly impacts flow delivery. The two most dominant designs in the commercial transport sector offer vastly different performance profiles under stress.

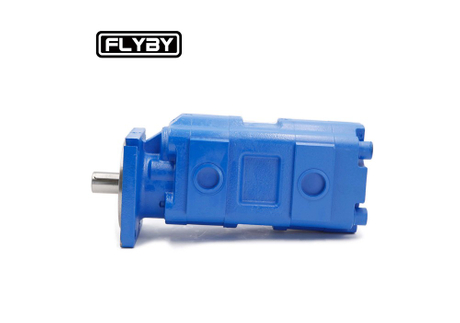

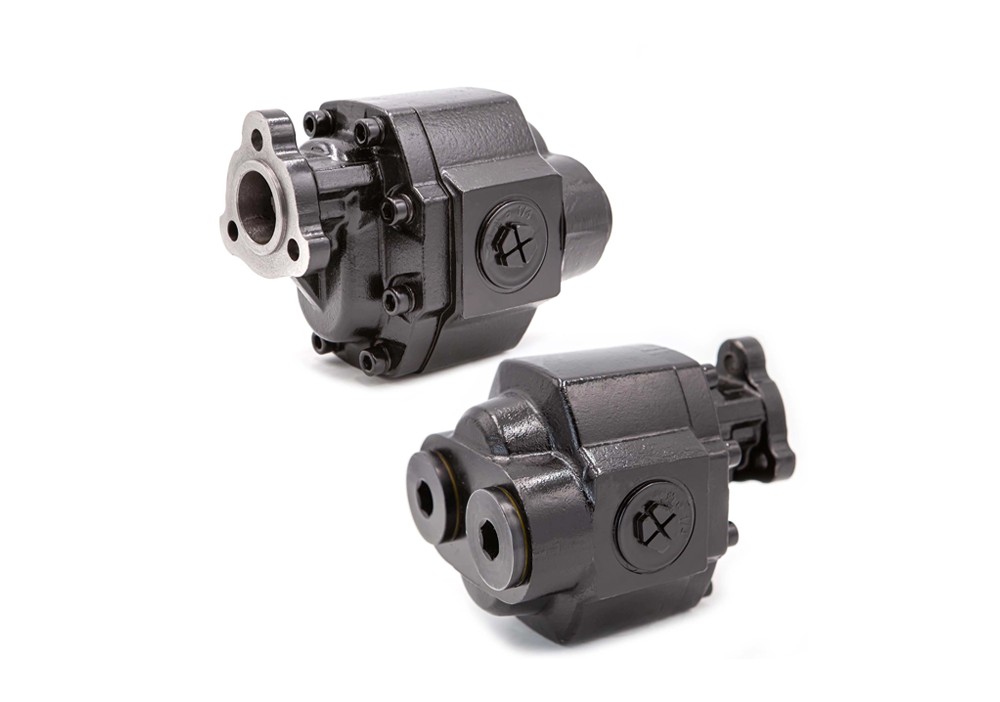

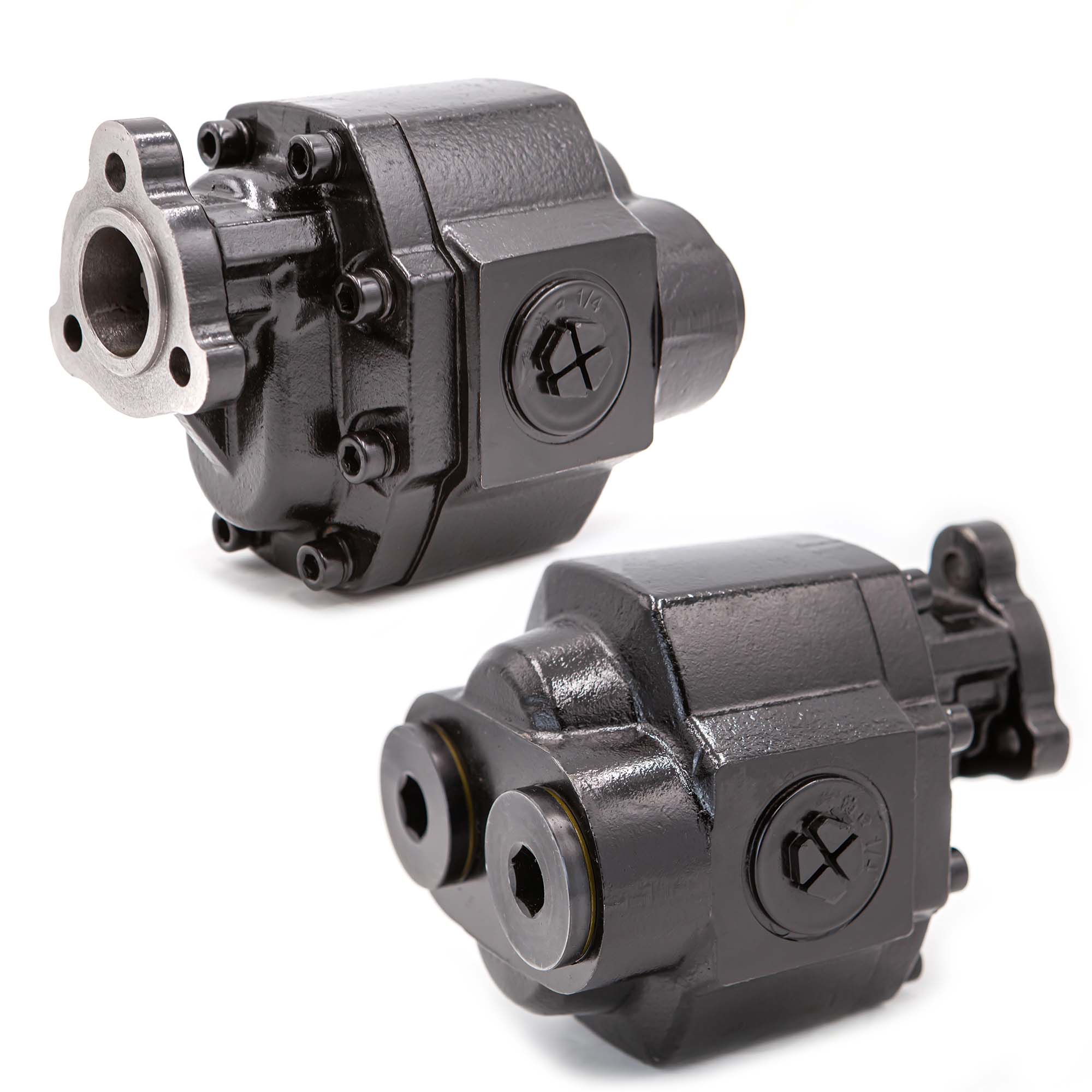

Gear designs remain the industry standard for traditional dump applications. They use meshing gears to trap fluid and force it out the discharge port.
Pros: They are incredibly cost-effective. These units feature fixed displacements, meaning they deliver a set volume per turn. They also boast high reliability in high-contamination environments. If debris enters the hydraulic reservoir, a gear unit usually tolerates it better than tighter-tolerance alternatives.
Speed Impact: A Dump Truck Gear Pump delivers consistent, predictable flow. Its speed scales linearly with PTO RPMs. Because it has a fixed displacement, the only way you can alter the lift speed during operation is by increasing or decreasing the engine throttle.
Piston designs use a rotating cylinder barrel housing several pistons. As the barrel turns, an angled swashplate forces the pistons in and out, drawing and expelling fluid.
Pros: This architecture handles significantly higher pressures (PSI) than gear equivalents. It operates highly efficiently at variable flows. Fleet owners often choose this design for heavy-duty commercial trailers or multi-function hydraulic setups, such as trucks running plows, spreaders, and dump bodies simultaneously.
Speed Impact: A Dump Truck Piston Pump offers tighter volumetric efficiency at extreme pressures. Under a maximum payload, hydraulic fluid wants to take the path of least resistance. In looser gear designs, some fluid slips backward internally. Piston designs minimize this internal bypass (slip). The result gives you more consistent, aggressive lift speeds under max payload scenarios.
You must match the pump type to your specific duty cycle. Standard rigid dump trucks hauling aggregate short distances usually perform flawlessly with gear architectures. Conversely, continuous-duty transfer trailers or applications demanding extreme system pressure often require the robust efficiency of a piston unit.
Pump Architecture Comparison
Feature | Gear Architecture | Piston Architecture |
|---|---|---|
Primary Advantage | Cost-effective and durable | High pressure and high efficiency |
Speed Consistency | Linear with engine RPM | Highly consistent under max load |
Contamination Tolerance | Excellent | Requires strict fluid filtration |
Ideal Application | Standard rigid dump trucks | Multi-function or extreme heavy-duty |
You cannot isolate the hydraulic system from the truck's drivetrain. The two systems interact intimately. Upgrading displacement requires a deep understanding of where your power originates.

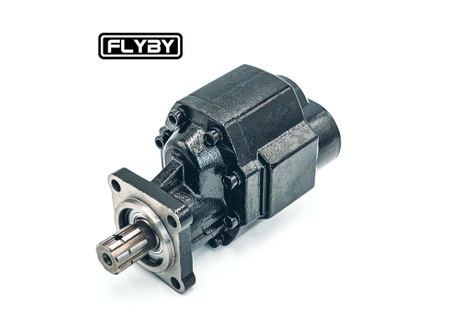

A standard PTO Hydraulic Pump relies entirely on the transmission's Power Take-Off (PTO) to spin its shaft. Your pump's rated displacement remains completely theoretical until you factor in the PTO output shaft speed. PTOs feature specific gear ratios. If a PTO runs at an 80% ratio, an engine spinning at 1,000 RPM only turns the pump at 800 RPM. You must calculate your target GPM using the actual PTO output speed, not just the engine tachometer reading.
Moving fluid requires horsepower. Moving more fluid at high pressure requires exponentially more horsepower and rotational torque. If you bolt a massive displacement unit onto a standard PTO, you force the transmission to work harder. When the dump bed hits a heavy lifting angle and pressure spikes, the torque demand skyrockets. If the engine or PTO cannot deliver that torque, the engine will lug, sputter, or stall completely. You could also shear the PTO shaft.
Successful fleet mechanics size their systems to an engine's optimal operating RPM—usually between 1,000 and 1,500 RPM for modern diesel engines. You want to match your displacement so it achieves your target 20- or 30-second cycle time while keeping the engine in its most comfortable torque band. This prevents engine lugging and avoids forcing the operator to redline the truck just to raise a loaded bed.
Many operators simply buy the largest pump they can afford, hoping for lightning-fast cycle times. This plug-and-play mentality frequently leads to catastrophic system failures. Upsizing displacement introduces several mechanical risks.
Cavitation Risks: This occurs when a high-displacement pump outpaces the suction line's capacity. If the reservoir and suction hose cannot feed fluid fast enough, the pump pulls a vacuum. The hydraulic oil boils at low pressure, creating vapor bubbles. When these bubbles reach the high-pressure side, they implode violently. This implosion chips away at internal metal surfaces, sounding like marbles rattling in a blender. Cavitation destroys new components in a matter of hours.

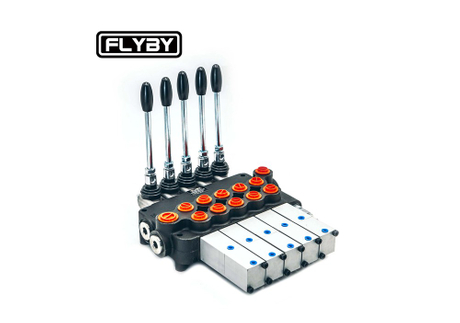

Thermal Inefficiency: Hydraulic hoses, directional control valves, and return filters all carry specific GPM ratings. Forcing 40 GPM through a valve designed for 20 GPM drastically increases fluid velocity. High velocity creates extreme friction. Friction generates intense heat. Overheated oil loses its viscosity, breaks down chemically, and ruins every seal in your system.
Cylinder and Seal Stress: Telescopic cylinders feature specific mechanical limits. If you push an empty bed up at an excessively high speed, the cylinder stages slam into their mechanical stops violently. This shock load easily blows out wiper seals, damages internal packing, and stresses the steel hinges of the dump body.
Trust and Transparency Note: We strongly recommend conducting a comprehensive pressure and flow test on your existing equipment before blindly purchasing a larger unit. Often, a slow cycle time stems from a worn internal seal or a bypassing relief valve rather than inadequate factory displacement. Fixing a small leak proves much cheaper than re-engineering your entire fluid circuit.
Specifying new equipment requires a methodical approach. Follow this logical framework to upgrade your cycle times safely.
Calculate Minimum Flow Required: Start with your goal. Determine an acceptable cycle time (e.g., 20 seconds to reach full extension). Find the total fluid volume of your cylinder in gallons. Divide the volume by your target time in minutes to calculate your required GPM.
Verify PTO Specifications: Crawl under the truck and locate the PTO data tag. Check its maximum torque rating (lb-ft) and its output ratio. Ensure it can handle the increased horsepower demand of a higher flow rate under maximum system pressure.
Audit Supporting Infrastructure: Inspect your entire fluid circuit. Confirm your suction hoses, return lines, directional valves, and reservoir size can comfortably handle a 15-20% increase in fluid velocity. If your hoses look too narrow, you must upgrade them alongside the pump.
Select Pump Type: Make your final decision between gear and piston architectures. Base this choice on your operational budget, maximum required operating pressure (PSI), and your shop's maintenance capabilities regarding fluid cleanliness.
Maximizing your dump body lift speed demands a balanced, engineered approach. Upgrading cycle times relies on understanding the relationship between displacement, RPM, and system flow capacity, rather than just buying the largest pump available.
Identify your target cycle time based on your specific cylinder volume.
Ensure your PTO output ratio and engine torque can support higher displacement without lugging.
Audit your hoses and valves to prevent cavitation and dangerous fluid overheating.
Consult your cylinder manufacturer specifications and inspect your current PTO setup before calling a hydraulic specialist to finalize your upgrade.
A: No. Pressure dictates lifting force (weight capacity), while flow rate (GPM/Displacement) dictates lifting speed.
A: This typically indicates internal pump wear (slip), a failing relief valve bypassing fluid early, or the engine/PTO lacking the torque to maintain RPM under heavy load.
A: A piston pump improves high-pressure efficiency but won't inherently increase speed unless its displacement or flow characteristics are better matched to your PTO RPM and cylinder volume.
A: For fixed displacement gear pumps, speed can only be adjusted by safely varying engine RPM via the throttle cable or adjusting a flow control valve (if installed). Never adjust the main pressure relief valve to try and fix a speed issue.
