Views: 151 Author: Site Editor Publish Time: 2026-07-25 Origin: Site
Every payload directly dictates your daily profitability and equipment downtime. A mismatched pump instantly kills efficiency on the job site. You face slow cycle times, overheating fluids, or even catastrophic system failure under extreme loads. Upgrading or replacing a pump requires a delicate balance. You must weigh upfront hardware expenses against brutal, long-term operational demands. Specifying the wrong unit wastes capital and guarantees unplanned mechanical downtime. Fleet managers constantly struggle to find the perfect match for their heavy-duty applications. We provide an objective, engineering-focused breakdown comparing gear and piston systems. You will discover exactly how to specify the right hardware for your chassis, PTO setup, and specific hauling application. This detailed guide ensures your next pump maximizes hoist performance and protects your bottom line.
The Baseline: The core trade-off is between the rugged, budget-friendly simplicity of a gear pump and the high-pressure, continuous-duty efficiency of a piston pump.
Application Dictates Choice: Intermittent, short-haul dumping favors gear systems; continuous, multi-axle heavy hauling requires piston systems.
Maintenance Reality: Piston pumps demand strict fluid cleanliness and superior filtration; gear pumps are highly tolerant to system contamination.
You must clearly define your specific business problem before purchasing hardware. Avoid over-specifying your system. Buying excessive capacity wastes valuable capital. Conversely, under-specifying invites premature equipment failure. You need to align your hardware precisely to your daily operational reality. A standard Hydraulic Pump must meet very specific mechanical criteria to survive. Fleet operators should evaluate three core dimensions before making a final selection.
Operating Pressure (PSI): You must determine the exact pressure requirements of your hoist cylinder. Standard dump applications usually operate well under 3,000 PSI. Heavy-duty, multi-stage telescopic cylinders often require much higher pressure capabilities to lift maximum payloads.
Flow Rate (GPM) & Cycle Speed: Consider how fast the bed must raise and lower. Faster cycle times directly increase your daily tonnage targets. High flow rates push cylinders faster, but they require adequate fluid supply and PTO speed.
Duty Cycle: Evaluate your daily operational frequency. Is the truck dumping five times a day in an intermittent capacity? Or is it dumping fifty times a day in a continuous, heavy-duty commercial application? Heat buildup directly correlates to your duty cycle.

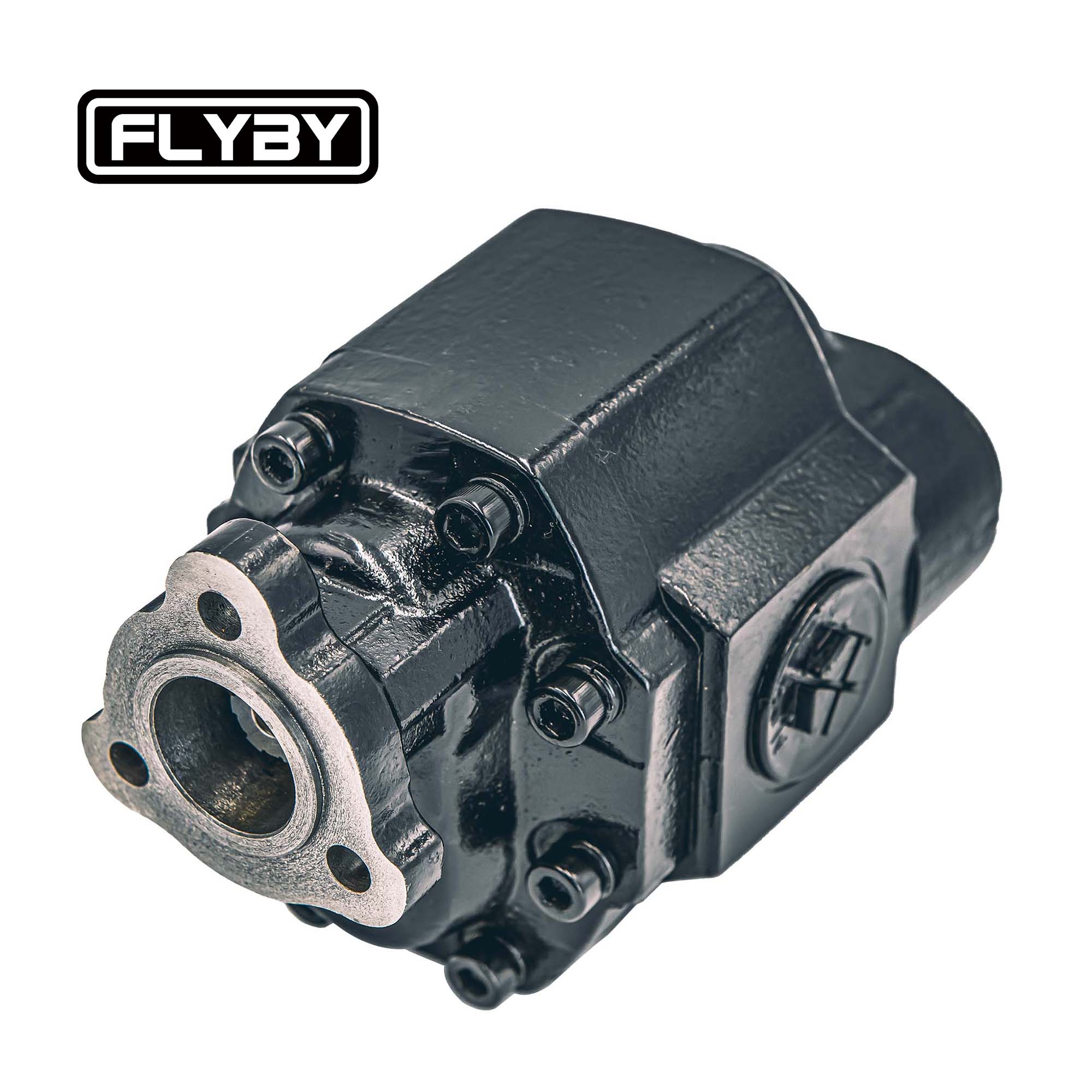

The standard gear pump relies on a highly proven, fixed displacement operation. Two meshing gears rotate inside a tightly toleranced housing. They trap hydraulic oil between the gear teeth and the housing wall. The rotation smoothly forces this fluid out the discharge port. Every revolution moves a specific, unchangeable volume of oil.
Lower Upfront Cost: These units are significantly cheaper to procure. Fleet managers appreciate the budget-friendly replacement costs.
Ruggedness: They are highly tolerant to fluid contamination. They easily survive dirt, metal shavings, and poor maintenance environments.
Predictability: Their simple design means fewer catastrophic failure points. They rarely explode under pressure. Instead, they usually wear out slowly over years of service.
Despite their ruggedness, these units possess specific operational drawbacks. They suffer from lower volumetric efficiency compared to advanced designs. Internal leakage naturally increases as the gear tips wear down against the housing. We call this internal slip. This slip converts mechanical energy into excessive heat instead of useful fluid flow. Furthermore, they feature strict capped pressure limits. A typical dump truck hydraulic gear pump usually maxes out around 2,500 to 3,000 PSI. Pushing them beyond this limit destroys the internal seals. Finally, they generate higher heat levels during extended duty cycles. Fluid breakdown becomes a serious risk if you run them continuously.
Piston systems utilize a highly advanced rotating cylinder block containing several reciprocating pistons. Designers configure them in either an axial (swashplate) or bent-axis arrangement. As the internal block turns, the angled design pushes the pistons in and out of their bores. This precise reciprocating action draws fluid in and forces it out under immense pressure.
High Pressure & Flow: These units easily sustain 4,000 to 5,000+ PSI. They are absolutely ideal for multi-stage telescopic cylinders pushing massive payloads.
Volumetric Efficiency: They feature incredibly tight internal tolerances. This precision means virtually zero fluid bypass. You gain much faster hoist times and experience significantly less engine lugging.
Thermal Stability: They remain vastly superior for continuous duty cycles. Their high efficiency means they generate significantly less heat over long workdays.
These advanced capabilities demand a higher initial capital investment. You will pay a premium for the precision machining required to build them. More importantly, they exhibit extreme sensitivity to system contamination. A dump truck piston pump requires rigorous ISO cleanliness codes for the hydraulic fluid. You must install premium filtration setups. Even microscopic metal flakes can score the piston bores and instantly destroy the unit.
Buyers need a clear comparative analysis framework to make profitable decisions. We must break down the specific engineering metrics. Understanding these direct comparisons prevents costly specification errors.
A direct correlation exists between pump PSI limits and actual lifting capacity. Standard dump bodies handle typical aggregate loads perfectly fine at 2,500 PSI. Gear systems handle this load effortlessly. However, heavy-duty, multi-axle trailers moving wet clay or demolition debris demand much higher lifting force. Piston systems deliver the 4,500 PSI required to push those massive telescopic cylinders upward without stalling the system.
Efficiency directly impacts your diesel fuel consumption. Gear systems lose efficiency as they wear. The engine must work harder to push the same volume of oil. Piston units maintain near-perfect volumetric efficiency. They significantly reduce the parasitic load on your PTO and engine. This reduced drag translates to highly measurable fuel savings over a five-year lifecycle. The engine revs lower, burns less fuel, and lifts the bed faster.
Heat destroys hydraulic oil. You must evaluate fluid breakdown risks carefully. Gear systems inherently generate friction through internal slip. If you dump fifty loads a day, a gear unit will easily overheat your fluid. The oil thins out, loses its lubricating properties, and damages the entire system. Piston systems survive these continuous-dump operations beautifully. Their precise tolerances generate minimal friction, keeping the hydraulic reservoir cool all day long.
You need a transparent cost-benefit analysis. We strongly acknowledge that a simple gear unit remains the logical financial choice for standard, intermittent operations. The low purchase price protects your immediate cash flow. However, piston systems become highly ROI-positive for high-frequency, extreme-load applications. The fuel savings, faster turnaround times, and extended thermal survival easily justify their premium hardware costs. You trade higher initial expenditure for unmatched operational speed.
Table: Gear vs. Piston Specifications Comparison
Specification Metric | Hydraulic Gear Pump | Hydraulic Piston Pump |
|---|---|---|
Maximum Pressure | 2,500 - 3,000 PSI | 4,000 - 5,000+ PSI |
Volumetric Efficiency | Moderate (Decreases over time) | High (Maintained long-term) |
Contamination Tolerance | Excellent | Poor (Requires strict ISO codes) |
Heat Generation | Higher in continuous cycles | Low and stable |
Upfront Cost | Low | High |
We must address the mechanical realities of installing and running these pumps in the field. Theoretical performance means nothing if the installation fails. Mechanics face several strict rollout risks when upgrading systems.
PTO Torque Ratings require your immediate attention. We strongly warn against mating a high-demand piston unit to a standard-duty PTO. The immense pressure capabilities will easily exceed the PTO torque limits. This mismatch creates a high risk of violently shearing the PTO gears off the transmission. Always verify your PTO output rating matches the maximum torque demand.
Filtration Upgrades are absolutely non-negotiable. Clarify this rule immediately: switching to a high-pressure piston unit mandates upgrading your return-line and breather filtration systems. You need 10-micron absolute return filters. You cannot rely on the basic suction strainers used in older gear setups. Fluid cleanliness dictates survival.
Cavitation Risks present another severe danger. You must discuss inlet plumbing sizes with your installer. Starving a high-flow piston unit will destroy it rapidly. Vacuum bubbles form in the inlet line and violently collapse against the internal brass components. You need large-diameter suction hoses to feed the hungry pump. Gear units tolerate minor cavitation far better than precision piston designs.
Mounting Clearances often surprise fleet mechanics. Bent-axis piston units typically require significantly more physical frame clearance than compact gear configurations. They often jut out at sharp angles. You must measure the space between your transmission, frame rails, and exhaust routing before purchasing the hardware.
Choosing the correct hardware requires an honest assessment of your hauling realities. Follow this simple shortlisting logic to protect your investment.
Choose the gear configuration for standard payloads, intermittent daily use, and budget-conscious truck builds. They thrive in harsh, dusty environments where strict fluid maintenance might occasionally slip.
Choose the piston configuration for continuous-duty commercial hauling and heavy multi-axle operations. They perform perfectly for fleets utilizing strict preventative maintenance programs and demanding rapid cycle times.
Take direct action today. We strongly urge buyers to audit their current PTO torque ratings, maximum cylinder pressure requirements, and fluid cleanliness protocols. Gather this critical data before requesting quotes from your supplier.
A: Yes, but you cannot simply bolt it on. It requires verifying your PTO torque capacity to prevent gear shearing. You must also upgrade your hydraulic fluid filtration to meet strict ISO cleanliness standards. Finally, ensure you have adequate physical mounting clearance, as bent-axis models take up more space.
A: Gear models wear gradually over years. You will notice this wear as slower lift times and increased heat. Piston models maintain their high efficiency much longer. However, they can fail suddenly and catastrophically if contaminated fluid enters the system. Lifespan depends entirely on fluid cleanliness and operating within designated duty cycles.
A: Overheating is usually caused by pushing the unit beyond its intended duty cycle. If you dump loads continuously, friction builds up. It also occurs if you force fluid over the pressure relief valve constantly. Excessive internal wear also causes bypass friction, turning mechanical energy directly into heat.
