Selecting the wrong Pneumatic Control Valve is not merely an operational annoyance; it is a costly engineering error. A mismatched valve often leads to persistent air leakage, inefficient cycle times, and dangerous behavior during emergency stops. For automation engineers and procurement managers, understanding the nuances of valve architecture is essential for system reliability.
This guide moves beyond basic textbook definitions to provide a practical selection framework. We focus on matching valve logic—specifically Ways and Positions—to actuator needs, evaluating internal mechanisms like Spool versus Poppet designs, and assessing failure modes. Whether you are designing high-speed packaging lines or sourcing air valves trucks rely on for heavy lifting, this guide will help you make informed decisions.
Match Ports to Actuators: Use 3/2 valves for single-acting cylinders and 5/2 or 5/3 valves for double-acting cylinders.
Safety Dictates "Normal" State: Understanding the difference between Normally Open (NO) and Normally Closed (NC) is critical for determining what happens during power loss.
Environment Drives Mechanism: Choose Poppet valves for dirty environments/high flow; choose Spool valves for complex control functions.
Mobile vs. Industrial: Joystick valves and manual actuation prevail in heavy transport (**dump trucks**), while solenoid manifolds dominate factory automation.
Total Cost of Ownership: Integrated Valve Islands reduce wiring time and leak points compared to individual inline valves.
At the heart of every pneumatic system lies a decision framework mapping valve logic to required motion. Engineers classify valves primarily by two numbers: the number of ports (Ways) and the number of switching states (Positions). Mastering this nomenclature is the first step toward accurate specification.
Confusion often arises between "Ways" and "Positions." Simply put, Ways refer to the number of connection points on the valve body—Input, Output, and Exhaust. Positions refer to the distinct switching states the valve can adopt, such as Extend, Retract, or Neutral.
For example, a 5/2 valve has five ports and two positions. This standardized naming convention ensures that a pneumatic valve purchased from one manufacturer acts identically to one from another, provided the ISO symbol matches.
The 3/2 valve is the workhorse for single-acting applications. These cylinders use air to extend but rely on a mechanical spring to retract. Consequently, the valve only needs one output port to drive the cylinder and one exhaust port to vent the air when the spring takes over.
Best Applications: You will find these valves controlling air blowers, spring-return cylinders, or acting as master shut-off devices for air preparation units.
Decision Point: The critical engineering choice here is between Normally Open (NO) and Normally Closed (NC). * Normally Closed (NC): Air is blocked when the valve is at rest. This is safer for most motion tasks (the machine stays still on startup). * Normally Open (NO): Air flows freely at rest. This is vital if a clamp must remain pressurized even if the control signal fails.
For the vast majority of standard automation tasks, the 5/2 directional control valve is the industry standard. These valves control double-acting cylinders, which require compressed air for both extension and retraction.
Technical Note on 5-Port vs. 4-Port: Older textbook designs often reference 4-way valves. However, modern air control valves almost exclusively use a 5-port configuration. The 5-port design provides two separate exhaust ports (one for extend, one for retract). This allows engineers to install flow controls on the exhausts independently, enabling different speeds for the push and pull strokes—a capability impossible with a shared single exhaust.
When an application requires a cylinder to stop in the middle of its stroke, a 2-position valve is insufficient. You need a 3-position valve. The "third" position is the center state, which activates when neither solenoid is energized. Choosing the correct center type is a critical safety decision.
| Center Type | Function | Risk/Benefit |
|---|---|---|
| Closed Center | Blocks all ports. Traps air in the cylinder. | Benefit: Holds load in place. Risk: "Jerky" restart if trapped air leaks over time. |
| Exhaust Center | Vents pressure from both sides to atmosphere. | Benefit: Cylinder moves freely ("floats"). Risk: Load may drop due to gravity. |
| Pressure Center | Pressurizes both sides of the cylinder. | Benefit: Acts as a safety hold for vertical loads if the bore area is balanced. |
Once you determine the logic (Ways/Positions), you must select the internal mechanism. The choice between Spool and Poppet designs dictates the valve's longevity and tolerance to environmental contaminants.
Poppet valves operate similarly to a domestic tap. An internal seal lifts off a seat to allow flow. Because the seal moves perpendicular to the flow path rather than sliding across it, there is minimal friction.
Pros: * High flow rates due to large internal orifices. * Highly resistant to dirty air and particulates. * Self-cleaning action; the air blast clears debris from the seat. * Zero crossover leakage (perfect for holding pressure).
Best Application: Use poppet valves in harsh industrial environments like foundries or cement plants where air filtration might be compromised. They are also ideal for simple on/off process control tasks.

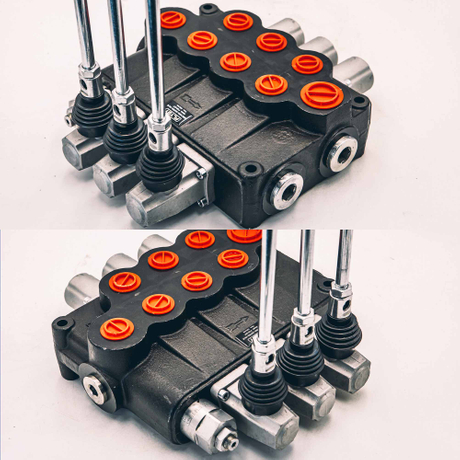

Spool valves feature a cylindrical spool with machined lands that slides inside a bore. As the spool moves, it blocks or opens various ports simultaneously.
Pros: * Balanced forces require very little energy to actuate. * Extremely versatile logic; manufacturers can create complex 5/3 functions simply by changing the spool profile. * Compact design suitable for high-density mounting.
Cons: They are sensitive to contamination. Dust can get trapped between the spool and bore, wearing down seals or causing the valve to jam. They also suffer from "stiction" (static friction) if left idle for long periods.
Best Application: Spool valves are the standard for complex machine automation, valve islands, and high-cycle packaging lines where air quality is well-maintained.
How a valve receives its command depends heavily on the industry. There is a distinct divide between the electronic actuation used in factories and the manual actuation preferred in mobile heavy machinery.
In factory automation, solenoids are king. They provide a direct electrical interface to PLCs. Modern trends favor low-wattage solenoids (under 1W) to reduce heat and energy consumption in large valve banks.
For hazardous environments, Air Pilot actuation is essential. Instead of electricity, a small air signal shifts the larger main valve. This removes the risk of electrical sparks, making them mandatory for ATEX zones in chemical processing or painting lines.

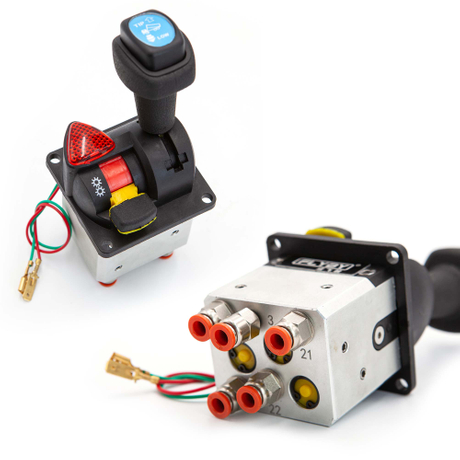

Heavy equipment often operates in conditions where sensitive electronics would fail. Mud, vibration, and weather necessitate robust manual control. This is where the joystick valve dominates.
It is important to distinguish these from their hydraulic counterparts. Unlike hydraulic joystick control systems that move incompressible fluid at high pressure, pneumatic joysticks meter compressed air. They allow for "feathering"—the ability to slowly lift a dump truck bed by partially opening the valve, rather than just snapping it fully open.
Applications: You will see these mounted in truck cabs, controlling lift gates, tippers, and mobile hoists. They provide the operator with tactile feedback that electronic switches cannot replicate.
Mechanical valves use physical levers, rollers, or plungers. They act as direct interlocks. For instance, a roller lever valve might physically detect that a safety gate is closed before allowing air to pass to the main system, creating a failsafe that functions even without power.
Engineering a pneumatic circuit requires planning for the worst-case scenario: an emergency stop or power outage. The stability logic of your valve determines whether the machine halts safely or crashes.
A monostable valve has a "home" position. It contains a mechanical spring that forces the spool back to its original state immediately upon signal loss or power cut.
Safety Implication: This is critical for safety circuits. If power fails, you typically want a clamp to close (or open) automatically to prevent injury. Monostable logic guarantees this transition.
Clarification on the "Double Coil Trap": Engineers often assume that if a valve has two solenoid coils, it is bistable. This is incorrect for 5/3 valves. A 5/3 valve has two coils to switch between positions, but it utilizes springs to return to the center when both coils are off. Therefore, it behaves as a monostable device regarding the center position.
Bistable valves, often called "impulse" or "memory" valves, stay in their last position even if power or air is cut. They do not have a return spring; they rely on friction or a mechanical detent.
Risk: If a machine restarts after a blackout, a bistable valve ensures the actuator is still in its extended position. However, this creates a risk: the machine "remembers" a state that might no longer be safe if the environment changed during the outage.
Use Case: They are excellent for energy saving. You only need a momentary electrical pulse to switch the valve, rather than continuous current holding it open.
Finally, the physical form factor affects the Total Cost of Ownership (TCO). The choice lies between individual inline valves and centralized valve islands.
Inline valves are mounted individually near the actuator. They are simple to replace if a single unit fails and are ideal for decentralized applications where actuators are spaced far apart (e.g., a long conveyor belt).
Cons: The installation labor is high. Each valve requires its own air supply tubing, exhaust silencers, and electrical wiring. This multiplies potential leak points and creates a "spaghetti" of cables.
Valve islands group multiple valves into a single block with a centralized air supply and exhaust. Modern units connect via a single Fieldbus or Ethernet cable to the PLC.
Pros: * Reduced Installation Time: Wiring and plumbing labor can drop by 50%. * Fewer Leaks: Centralized gaskets replace dozens of individual fittings. * Smart Features: Advanced "Motion Terminals" now offer software-defined functions, allowing predictive maintenance and cycle monitoring.
Recommendation: For any system requiring four or more valves in a localized area, manifolds generally offer a better ROI despite the higher upfront hardware cost.
Selecting the right pneumatic control valve is a tradeoff between control complexity, environmental resistance, and safety logic. A 5/3 spool valve offers precision, but a poppet valve ensures reliability in dirty air. Similarly, while bistable valves save energy, monostable valves provide the fail-safe assurance required for human safety.
To shortlist your components effectively, follow these actions:
Define the Actuator: Determine if you are driving single-acting (3/2 valve) or double-acting (5/2 valve) cylinders.
Determine the Safe State: Decide if the load must hold, vent, or reset during a power outage.
Assess Air Quality: If filtration is poor, prioritize poppet valves over spool designs.
Select Actuation: For mobile applications like dump trucks, prioritize manual or joystick actuation over sensitive solenoids.
A: Both valves control double-acting cylinders, directing air to extend and retract the piston. The key difference is the exhaust. A 5/2 valve has two separate exhaust ports, allowing you to control the speed of extension and retraction independently using flow controls. A 4/2 valve shares a single exhaust port, meaning any speed adjustment affects both strokes equally. The 5/2 design is the modern standard for this flexibility.
A: No. While they look similar in the cab, they are fundamentally different. Hydraulic joystick control manages high-pressure incompressible fluids (oil), often exceeding 2000 PSI. A pneumatic joystick is a low-pressure device (usually under 150 PSI) designed to meter compressed air. Using a pneumatic valve for hydraulics would result in immediate catastrophic failure and leakage.
A: Overheating often occurs when a standard solenoid is kept energized for long periods. Check for voltage mismatches (e.g., 24V DC coil on 110V AC supply). If the application requires the valve to stay open for hours, consider switching to a "bistable" (pulse-controlled) valve which implies no holding current is needed, or use a coil with a power-save circuit.
A: Cv stands for Flow Coefficient. It represents the volume of air the valve can pass at a specific pressure drop. If you undersize the Cv, your cylinder will move sluggishly regardless of the pressure. If you oversize it significantly, you waste money and cabinet space. Manufacturers provide calculators to match Valve Cv to Cylinder Bore size.
A: You need a 3-position valve when the cylinder must do more than just fully extend or fully retract. If you need to stop the load in the middle of a stroke (inching), or if you need the cylinder to go "limp" (float) during an emergency stop so an operator can manually move it, a 3-position valve with a specific center type is required.
