A direction control valve (DCV) acts as the logical switching element within fluid power systems. It is the component responsible for starting, stopping, and routing fluid flow, effectively dictating the movement and sequence of hydraulic or pneumatic actuators. Whether you are managing a complex industrial assembly line or a mobile earthmover, the DCV serves as the traffic cop that converts fluid energy into mechanical motion.
The business impact of this component is often disproportionate to its physical size. While a valve represents a fraction of the total machine cost, improper selection—such as choosing the wrong spool architecture or seal material—can lead to catastrophic system downtime. Engineers often face issues like excessive heat generation, hydraulic shock, or internal leakage, all of which trace back to the initial valve specification. This guide covers the essential engineering criteria for selecting hydraulic directional valves, detailing spool control valve mechanics, actuation methods, and critical architecture types like hydraulic monoblock directional control valves.
Function over Form: DCVs are discrete "on/off" or routing switches, distinct from proportional valves that modulate flow rates.
Architecture Matters: Choosing between hydraulic valve blocks (manifolds), monoblocks, or cartridge valves dictates system maintainability and leak potential.
The Heat Factor: Undersized valves or incorrect center-position selection (e.g., Closed vs. Tandem) are primary drivers of hydraulic system overheating.
Actuation Limits: Direct solenoid control has force limits; high-flow systems (>25 GPM) necessitate pilot-operated configurations.
When specifying a direction control valve, the first technical divergence lies in the internal sealing mechanism. The industry divides these primarily into spool designs and poppet designs. Understanding the physics of each helps you predict how the system will behave under load.
The hydraulic spool valve is the most ubiquitous architecture in fluid power. Mechanically, it consists of a machined cylindrical spool that slides laterally inside a cast housing. The spool features "lands" (raised diameters) and "grooves" (indents). As the spool moves, the lands block fluid ports while the grooves allow fluid to pass, creating logic paths.
Spool valves offer significant advantages in versatility. They can accommodate complex switching logic, such as 3-position, 4-way configurations, allowing a single valve to extend, retract, and neutralize a cylinder. The sliding action is also inherently balanced, requiring less force to actuate compared to working against high static pressure.
However, this design has a distinct trade-off: internal leakage. To allow the spool to slide, there must be a microscopic clearance gap between the spool and the housing. Under high pressure, fluid will bypass the lands through this gap. Consequently, a standard spool control valve cannot hold a heavy load in a fixed position indefinitely without drifting. For load-holding applications, engineers must add pilot-operated check valves to the circuit.
Poppet valves utilize a cone-and-seat mechanism similar to an engine valve or a faucet. When the valve closes, the pressure actually forces the cone tighter into the seat, creating a hermetic seal. Unlike spools, poppets have near-zero leakage.
This design excels in high-pressure holding applications where position accuracy is paramount. They are also more tolerant of contamination, as the opening action tends to flush particles away from the seat rather than grinding them into a clearance gap. The downside is limited switching complexity; poppets are typically 2-way devices (on/off). Creating a 4-way reversing function requires arranging multiple poppet valves in a "bridge" configuration, which increases control complexity.
Use the following comparison to determine the correct valve type for your application:
| Feature | Spool Valve | Poppet Valve |
| Primary Function | Complex routing (4-way, 3-position) | Load holding, sealing, simple on/off |
| Leakage | Permissible internal bypass (Clearance) | Zero leak (Hermetic seal) |
| Pressure Limits | Medium to High (limited by clearance expansion) | Very High (Seals tighter with pressure) |
| Contamination Tolerance | Low (Prone to silting/jamming) | High (Self-cleaning seat) |
Once you select the internal mechanism, you must choose the housing architecture. This decision impacts installation space, leak points, and future serviceability.
A monoblock valve features a single casting that houses multiple spools and relief valves. This integration results in a robust, compact unit with fewer potential leak paths since there are no seams between sections.
These are standard in mobile equipment sectors. For example, the hydraulic system of a dump truck or compact tractor relies heavily on hydraulic monoblock directional control valves. The rigid structure handles the vibration and physical abuse of construction sites effectively. The trade-off is flexibility; if one spool bore is damaged, you often must replace the entire block. Furthermore, you cannot add or remove sections if the machine's hydraulic requirements change.

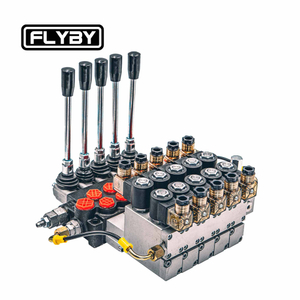

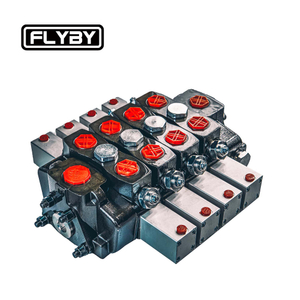

Sectional valves consist of individual slices bolted together. Each slice contains its own spool and can carry auxiliary functions like port reliefs or anti-cavitation valves. This offers immense customization. An engineer can mix flow ratings or combine motor spools and cylinder spools in the same stack.
While flexible, sectional valves introduce more failure points. Every interface between sections requires O-ring seals. Under extreme chassis twist or thermal cycling, the tie-rods holding the stack together can stretch, leading to leaks between the slices.
For stationary industrial machinery and high-precision mobile applications, the industry favors the hydraulic valve block (manifold) approach. Here, engineers design a custom block of aluminum or steel and install screw-in cartridge valves to perform the logic.
This architecture is the most maintainable. If a valve fails, a technician simply unscrews the cartridge and inserts a new one without disturbing the plumbing. It also allows for extremely compact integration of complex logic that would be messy to pipe externally.
Defining how the valve shifts and what it does in its neutral state is critical for energy management and safety. This is particularly true for hydraulic directional valves used in variable duty cycles.
You can shift a spool manually, mechanically, hydraulically, or electrically. Direct solenoid actuation is the most common for automation. An electromagnetic coil pushes a pin against the spool to shift it.
However, solenoids have force limits. In high-flow systems (typically above 25 GPM), the flow forces acting on the spool can become stronger than the solenoid's magnetic pull, preventing the valve from shifting. For these applications, you must use pilot-operated (electro-hydraulic) valves. A small solenoid valve directs pilot fluid pressure to the ends of a larger main spool, using the system’s own hydraulic muscle to perform the heavy shifting.
Most 4-way valves have three positions: Extend, Retract, and Center (Neutral). The center position determines the system's behavior when the operator lets go of the controls.
Tandem Center: In neutral, the P (Pressure) port connects to T (Tank), while A and B ports are blocked. This unloads the pump back to the tank at low pressure, reducing heat generation in fixed-displacement pump systems.
Closed Center: All ports (P, T, A, B) are blocked. This is essential for systems using variable displacement pumps or accumulators, where pressure must be maintained at the inlet even when idle.
Float Center: The P port is blocked, but A and B connect to T. This allows a hydraulic motor to spin freely (coast) or a cylinder to be moved by external forces, which is useful for snowplows or mowing decks that follow ground contours.
Open Center: All ports connect to each other. This prevents pressure buildup but cannot hold a load. It is rarely used in modern high-pressure control applications but appears in specific low-power circuits.
Reading a catalog flow rating is insufficient for guaranteeing performance. You must analyze the dynamic behavior of the valve within your specific circuit parameters.
Every valve acts as a restriction. As fluid passes through the spool lands and housing passages, energy is lost as heat. This is measured as pressure drop, or Delta P. A cheaper, smaller valve might handle your required flow, but it could induce a high pressure drop (e.g., 150 PSI vs. 50 PSI).
Over time, this inefficiency translates into higher fuel consumption or electrical costs and necessitates larger hydraulic coolers. Always check the Delta P curve at your target fluid viscosity, not just the water rating often shown in generic charts.
Valves have a "dynamic power limit"—a specific combination of flow and pressure where the valve fails to switch. This occurs due to Bernoulli forces: fast-moving fluid creates low-pressure zones that suck the spool against the housing, creating a clamping force called "flow lock."
If you operate near the upper limit of a valve's flow rating while at maximum pressure, a direct-acting solenoid may not be strong enough to overcome these forces. The valve might actuate reliably at 1000 PSI but jam at 3000 PSI, even if the housing is rated for 5000 PSI.
Be wary of marketing terms like "zero leak" when applied to spool valves. Spool leakage is a physical reality. Manufacturers specify this as permissible leakage (e.g., 20 ml/min at 1000 PSI). You must calculate if this leakage will cause unacceptable drift. For example, a crane arm relying solely on a spool valve will slowly lower over time. If gravity holding is required, your design must include load-holding valves, regardless of the DCV quality.
Even the highest quality hydraulic directional valves can fail if installed without regard for environmental factors and fluid conditioning.
When a DCV remains in a pressurized "standby" position for long periods, microscopic particles in the oil migrate into the clearance gap between the spool and the bore. Under pressure, these particles pack tightly, creating a silt layer.
When the solenoid finally energizes, the spool may stick. This "stiction" can cause the solenoid coil to overheat and burn out as it draws maximum inrush current trying to move the jammed spool. To mitigate this, advanced controllers use "dither" signals—a high-frequency vibration that keeps the spool slightly in motion to prevent silt accumulation.
Modern solenoid valves operate with clearances as tight as 2 to 5 microns. They are far less forgiving than the manual lever valves of the past. Contaminated oil is the primary cause of premature valve failure.
Installing a hydraulic valve block requires strict adherence to filtration standards, typically ISO 4406 cleanliness codes (e.g., 18/16/13). Ignoring filtration will lead to scored spools, increased internal leakage, and erratic shifting.
Discrete DCVs are "bang-bang" devices—they switch flow paths almost instantly. This rapid change in fluid momentum creates pressure spikes (water hammer) that can damage pumps, hoses, and seals. If your system experiences loud banging during reversal, consider using "soft-shift" solenoids which ramp up the magnetic field slowly, or install damping orifices in the pilot lines to slow the spool travel.
Selecting a direction control valve is not merely a matter of matching port sizes. It requires balancing leakage tolerance, heat management, and structural rigidity against the application's duty cycle. While a standard spool valve suffices for general motion, it lacks the sealing capability of a poppet or the maintainability of a cartridge system.
For high-stakes applications in mining, aerospace, or heavy construction, investing in a custom hydraulic valve block design with pilot-operated logic often yields the best long-term ROI. These systems reduce leak points and allow for easier troubleshooting compared to buried piping. Before finalizing your Bill of Materials, review the system flow-force charts and ensure your actuation method can handle the dynamic loads, not just the static pressure.
A: The difference lies in the number of positions. A 4/2 valve has 4 ports and 2 positions (usually extend and retract), meaning the actuator is always moving one way or the other. A 4/3 valve adds a third "center" or neutral position. This allows the operator to stop the actuator mid-stroke, unload the pump, or float the motor, depending on the center spool type (Tandem, Open, Closed, etc.).
A: Some heat is normal as solenoids draw holding current. However, excessive heat usually indicates a problem. It could be caused by "stiction" where the spool is mechanically jammed (due to silt or contamination), preventing the armature from fully seating. This causes the coil to draw high inrush current continuously. Alternatively, high voltage spikes or an excessive duty cycle beyond the coil's rating can cause overheating.
A: Generally, no. Standard DCVs are "bang-bang" switches designed to be fully open or fully closed. Trying to partially shift a standard DCV to throttle flow results in erratic control and rapid erosion of the spool lands (wire drawing). For flow throttling, you must use a proportional valve, which has specially notched spools designed for metering flow.
A: Choose a monoblock if you need a compact, lower-cost, leak-resistant solution for a standard machine design (like a tractor) where the circuit won't change. Choose a sectional valve for industrial or complex mobile prototypes where you need the flexibility to mix different flow ratings, add functions later, or require custom auxiliary valves on specific sections.
A: The most common causes are fluid contamination (particles jamming the clearance gap), silting (particles settling during long standby periods), and thermal shock (spool expanding faster than the housing). Excessive mounting torque on the valve body can also warp the housing slightly, pinching the spool and preventing movement.
