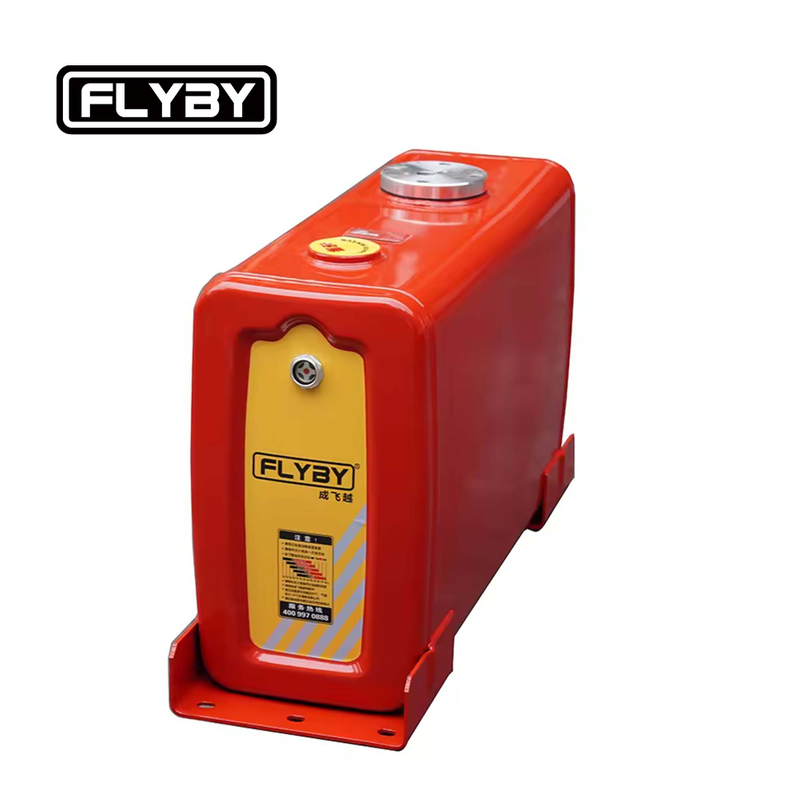

Metal Hydraulic Fluid Reservoir Tank for Dump Truck IT-R

1.Technical Specification

1.The hydraulic tank has been tested for sealing performance under 0.4bar compressed air for 1min, and there should be no leakage.

2.The cleanliness in the tank is not more than 50mg

3.tank internal acid cleaning corrosionphosphating Fe/Cf. PHR

4.Appearance spray according to QC/T484-1999 automotive paint coating. The provisions of the TQ6

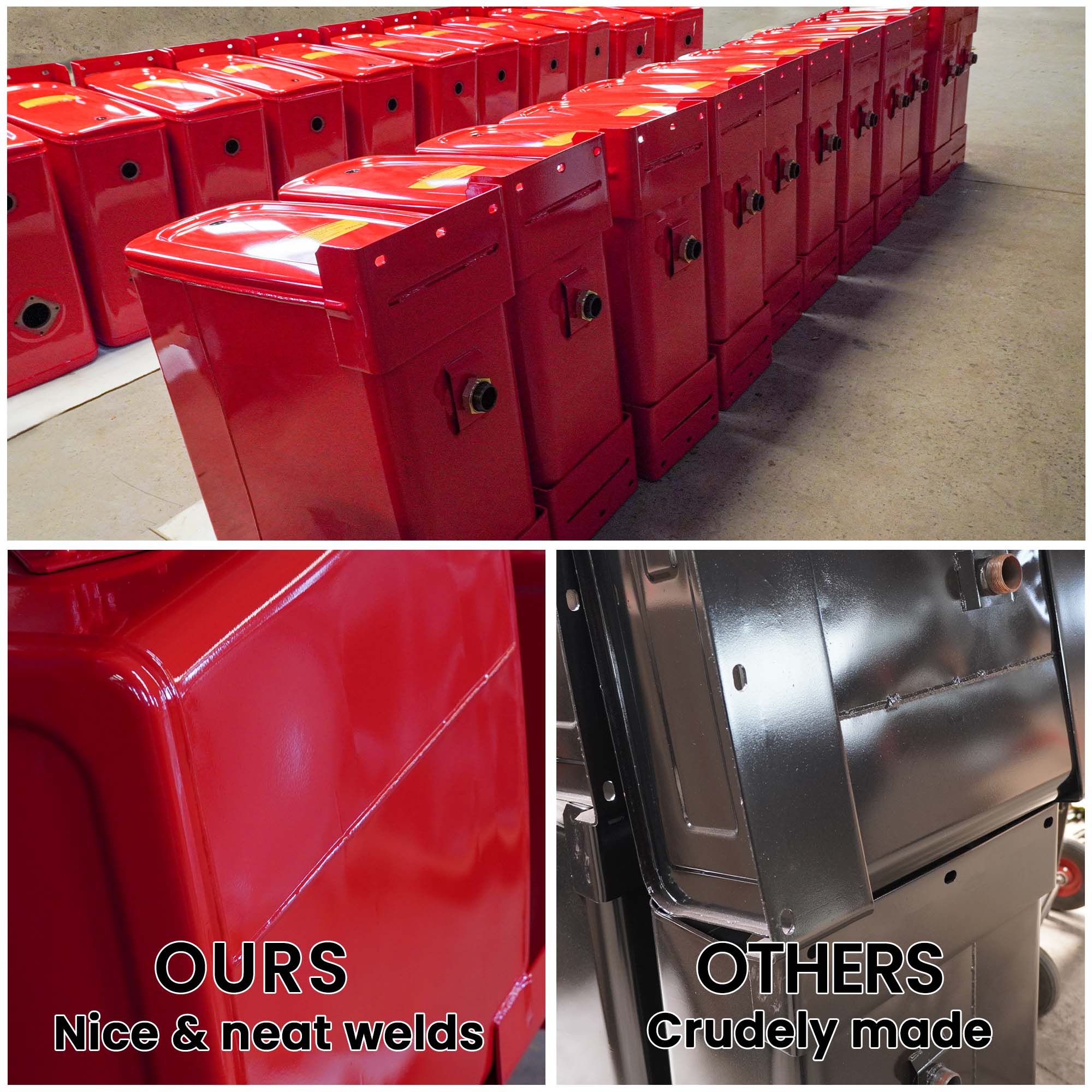

5.The appearance is not allowed to have surface scratch phenomenon, four convex uneven phenomenon and edge jagged 6. plate thickness2.5mm, fuel tank color, red

Product Advantages & Applications

1. Superior Sealing and Cleanliness for Enhanced System Longevity

The IT-R hydraulic oil tank undergoes a stringent 0.4bar compressed air seal test, ensuring zero leakage and preventing contaminants from entering the hydraulic system. With internal cleanliness controlled to ≤50mg, it minimizes abrasive wear on pumps and valves, critical for dump trucks operating in dusty mining or construction sites. The interior is treated with acid cleaning corrosion phosphating Fe/Cf. PHR, a process that forms a protective layer against rust and oil degradation. This reduces maintenance frequency and extends the lifecycle of high-pressure hydraulic systems. For clients seeking durable hydraulic oil tanks, this feature ensures reliability in harsh environments, lowering total ownership costs.

2. Robust Iron Construction with Optimal Thickness

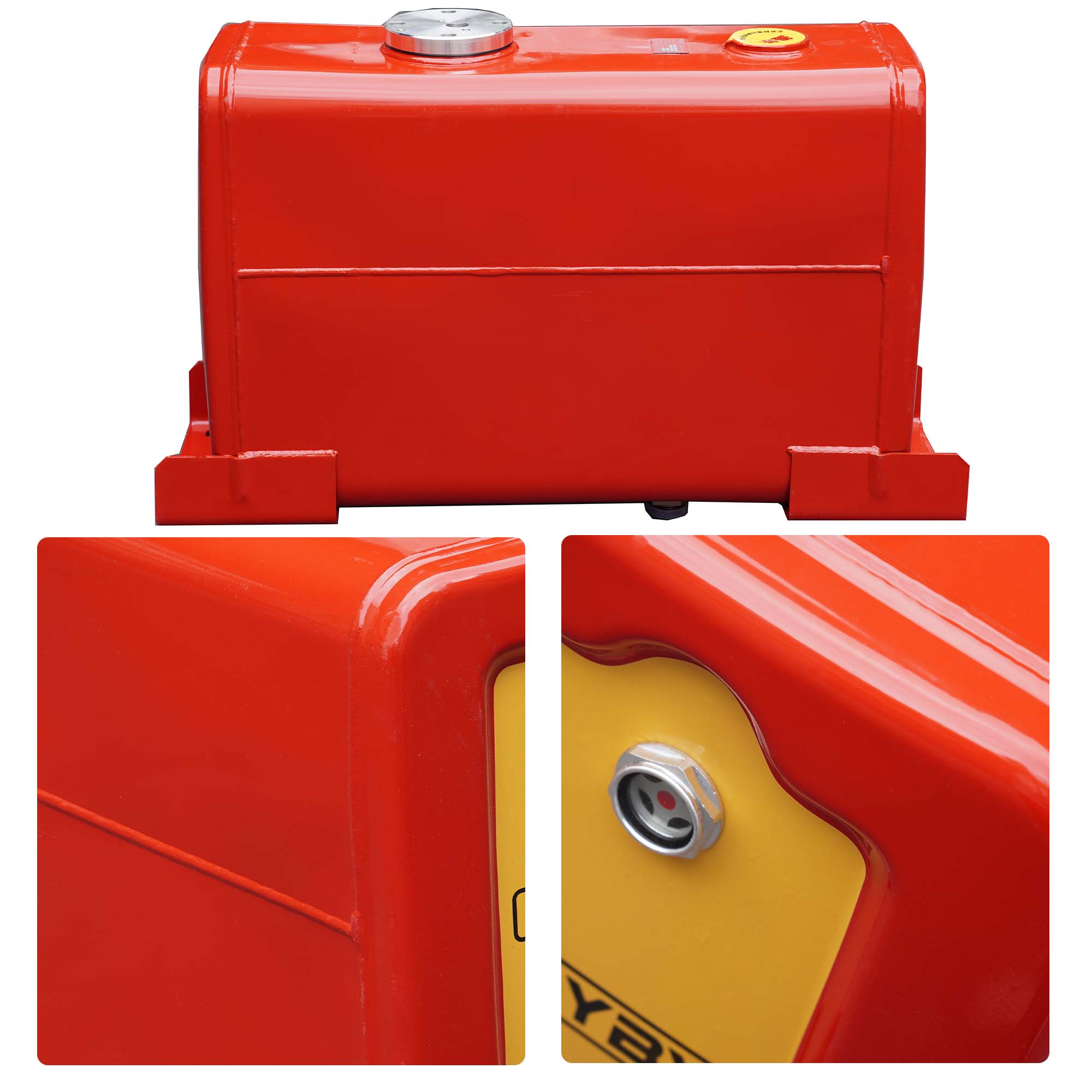

Built from 2.5mm thick iron plates, this heavy-duty hydraulic tank resists impacts and vibrations common in off-road dump truck operations. The solid structure prevents uneven surfaces and edge jaggedness, addressing safety concerns related to tank ruptures. Compared to thinner alternatives, the 2.5mm plate thickness provides extra resilience against physical stress, making it ideal for mining dump trucks and construction vehicles. This design focuses on dump truck hydraulic system durability, ensuring uninterrupted performance even under repetitive loading cycles.

3. Anti-Corrosion Coating for Extreme Environments

The tank’s exterior is sprayed with red paint compliant with QC/T484-1999 automotive paint coating TQ6 standards, offering superior adhesion and resistance to chemicals, moisture, and UV exposure. This coating prevents peeling or chipping, which is vital for equipment exposed to rain, mud, or corrosive materials. By integrating phosphating treatment for hydraulic tanks, the interior and exterior work synergistically to combat corrosion. For customers in coastal or high-humidity regions, this feature significantly reduces downtime caused by tank degradation.

4. Customizable Capacities and Space-Efficient Design

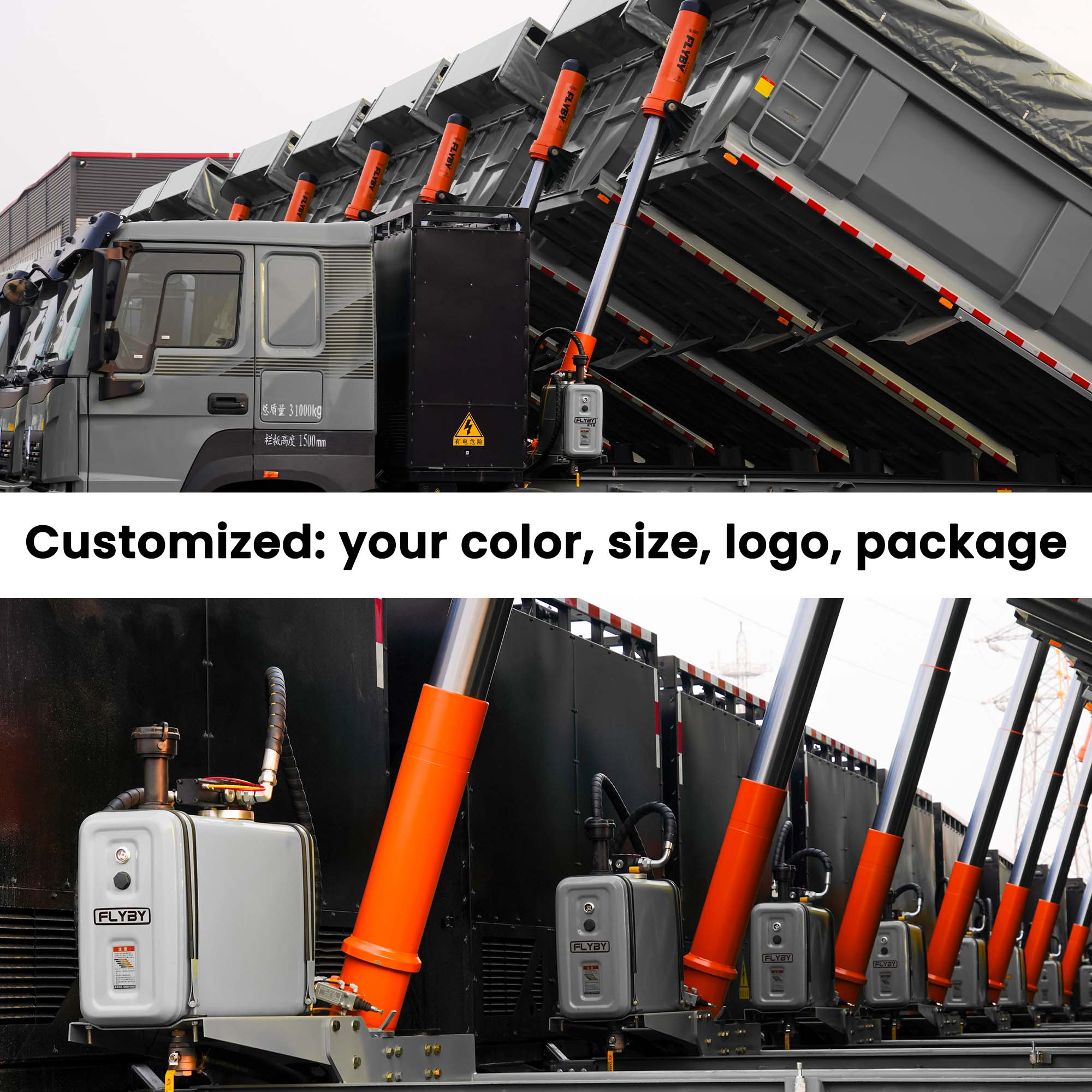

Available in multiple capacities (80L–180L) and compact dimensions (e.g., 80L: 620×300×520mm; 180L: 750×350×700mm), the IT-R series allows flexible integration into various dump truck models. The standardized port designs simplify installation, reducing labor costs. This versatility caters to engineering machinery hydraulic components needs, from small dump tippers to large mining trucks. Clients can select sizes based on fluid volume requirements without compromising on space utilization, enhancing vehicle design efficiency.

5. Strict Quality Control and Industry Compliance

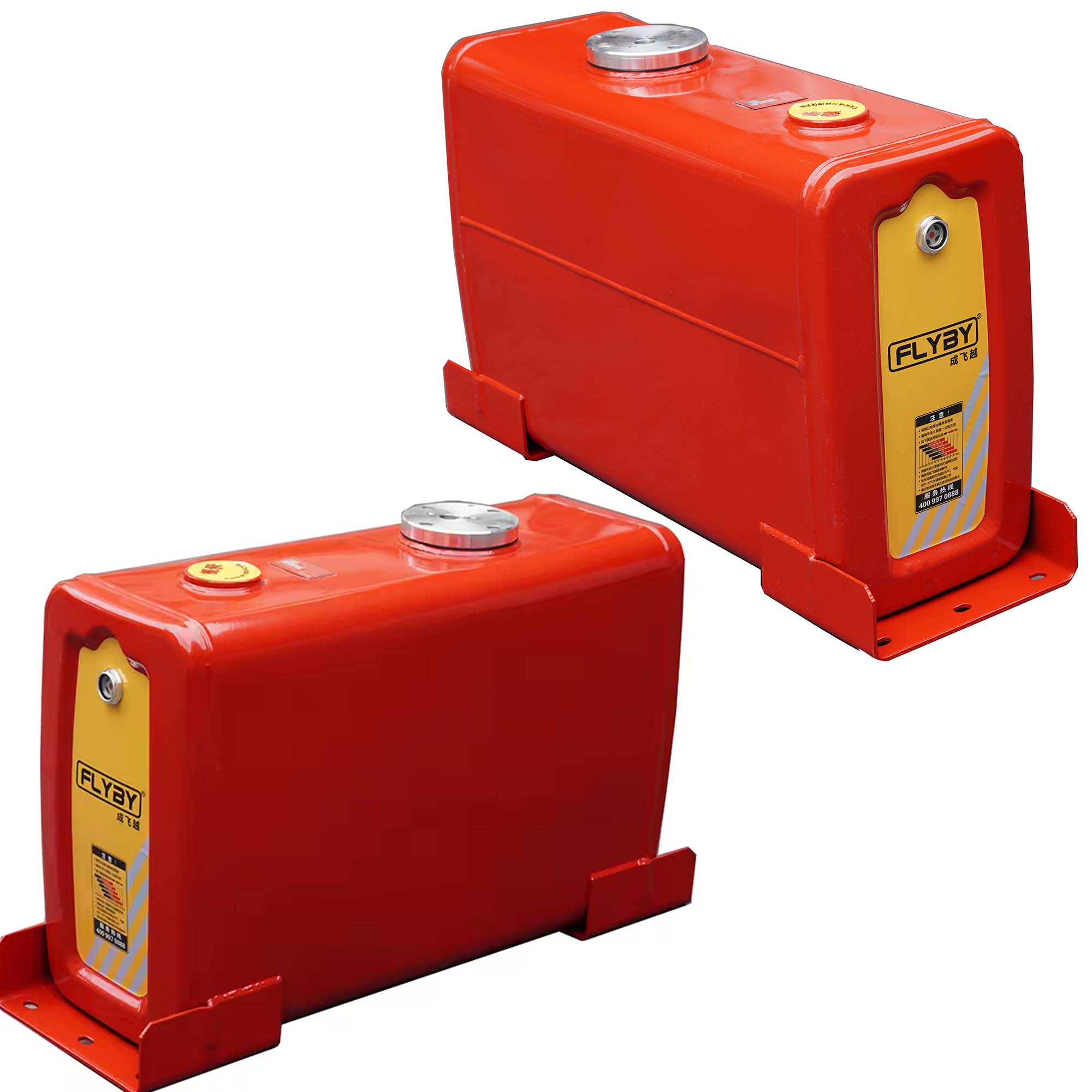

Every IT-R tank adheres to international standards like QC/T484-1999 and undergoes thorough inspections for sealing, cleanliness, and surface finish. The focus on hydraulic oil tank cleanliness control ensures that contaminants do not compromise system performance. By eliminating surface scratches and structural defects, the product meets the demands of dump truck hydraulic system manufacturers who prioritize safety and compliance. This reliability builds trust for B2B clients sourcing components for critical applications.

6. Efficiency-Driven Design for Reduced Operational Costs

The tank’s optimized internal layout minimizes oil turbulence and air entrainment, stabilizing pressure and improving hydraulic response times. Combined with acid cleaning phosphating treatment, it maintains oil purity, reducing the risk of valve blockages or pump failures. For fleet managers, this translates to lower fuel consumption and maintenance expenses. As a cost-effective hydraulic oil tank, it supports sustainable operations by extending oil change intervals and reducing waste.
