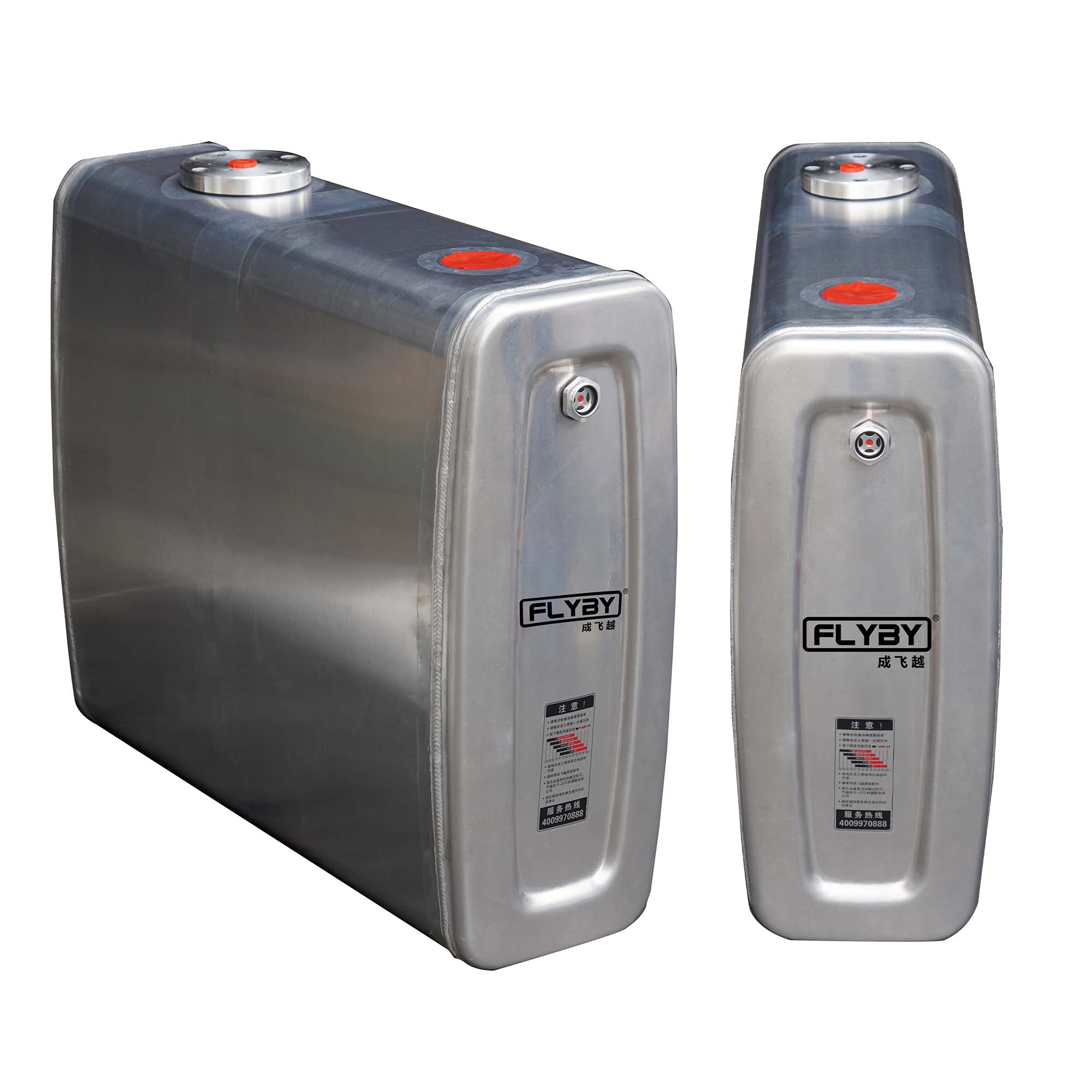

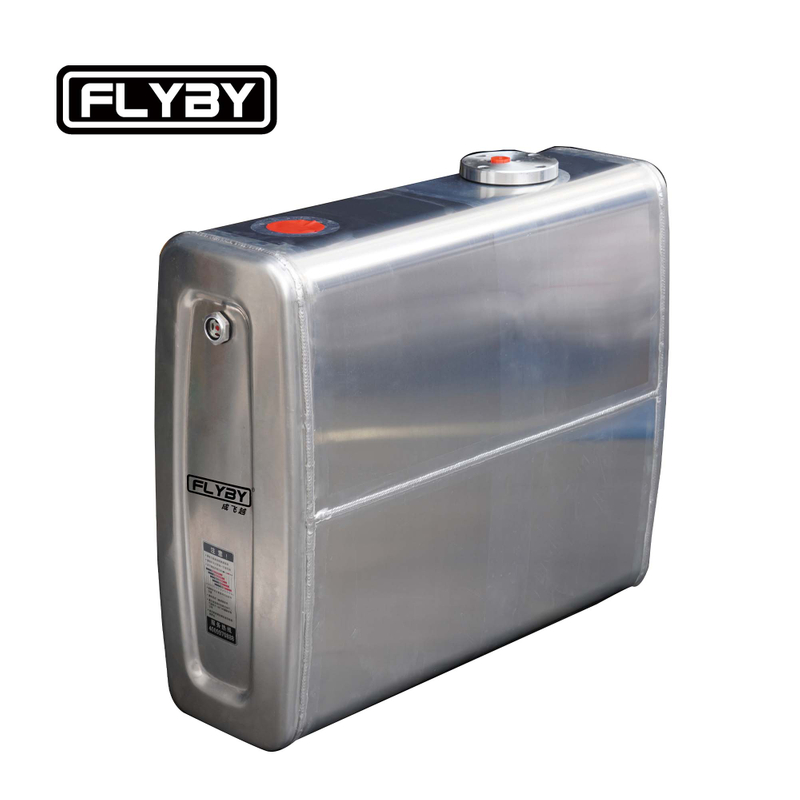

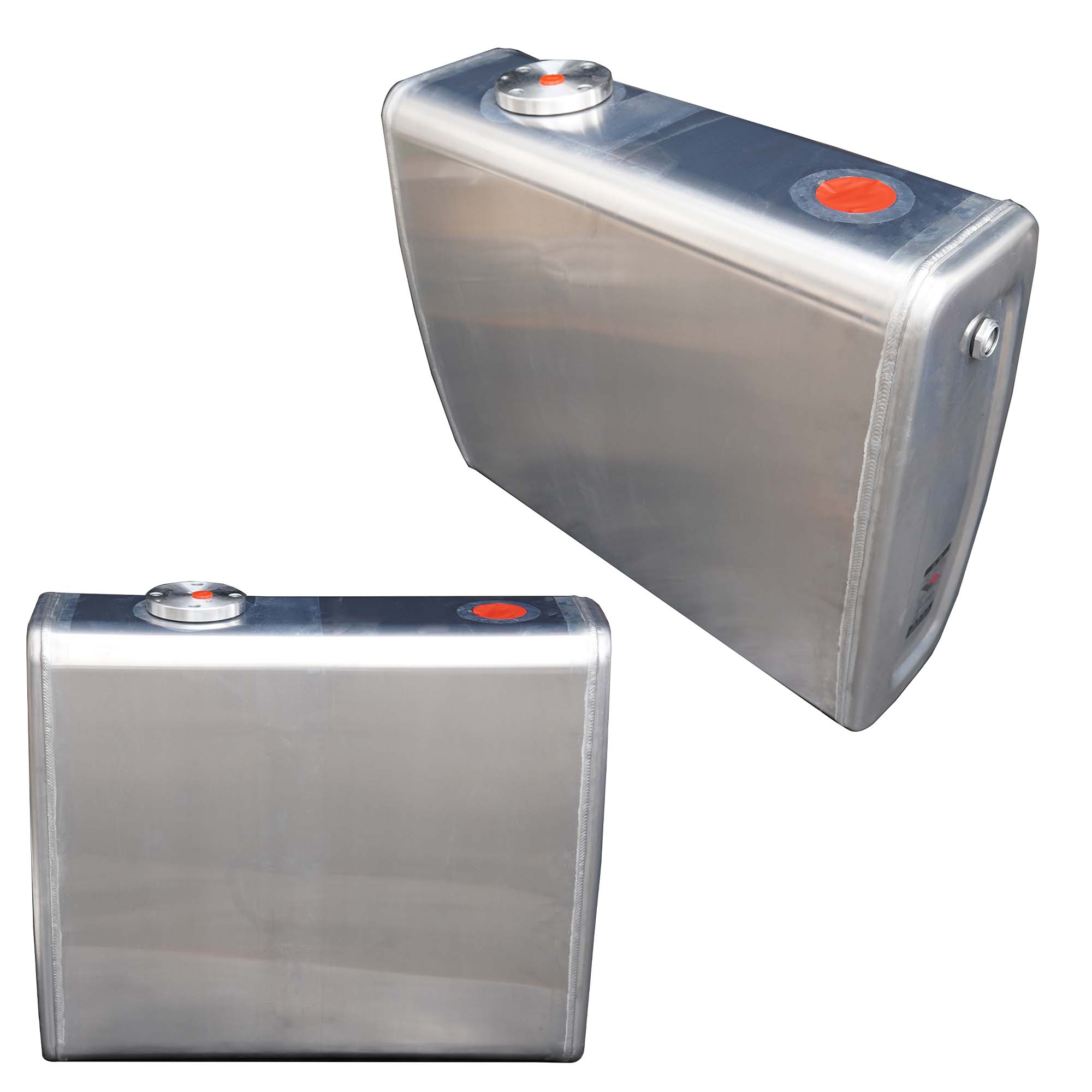

Aluminum Lightweight Hydraulic Tank JH-100b3-BL

Technical Specification

1.Cleanliness inside the tank: clean and dry, with no residual particles larger than 50 microns;

2.factory air tightness test: test pressure >50KPa test, no leakage, no permanent deformation box;

3.The tank is filled with compressed air with a relative pressure of 30KPa, and each part under test is immersed in water depth <100mm, and the pressure is kept for 2min, without leakage;

4.the bottom of the oil tank: the drain port is equipped with permanent magnet thread plug;

5.Oil return filter: reliable operation, filtration accuracy <1mm, flow >200L/min;

6.The lower outlet of the filter is shown in the figure, with a 45° cut and a distance of 10-20mm from the bottom plate；

7.The fuel tank adopts pulse gas welding, welding width >8mm, material thickness 2.5mm.

Advantages & Applications

1. High-Strength, Lightweight Design for Enhanced Payload and Efficiency

Our aluminum hydraulic oil tank, the JH-100b3-BL, is precision-engineered from high-quality 2.5mm thick aluminum alloy, achieving over 30% weight reduction compared to traditional steel tanks. This significant lightweight hydraulic tank design directly contributes to increased payload capacity and improved fuel efficiency for your dump truck equipment. The advanced pulse gas welding process, with a weld width exceeding 8mm, guarantees exceptional structural integrity and long-term durability under severe stress and vibration. This makes it the perfect heavy-duty hydraulic reservoir for weight-sensitive applications like mining trucks and major infrastructure projects. By reducing dead weight, our tank helps operators maximize productivity and profitability, especially crucial in today's competitive haulage and construction markets. Upgrade to a lighter, stronger reservoir today and feel the difference in your operational efficiency!

2. Superior Cleanliness Control for Extended Hydraulic System Life

Protecting your valuable dump truck hydraulic system from contamination is paramount. The JH-100b3-BL hydraulic oil tank is built with an uncompromising focus on oil cleanliness. The interior is guaranteed clean and dry, free from particles larger than 50 microns. It is equipped with a high-performance return line filter offering superior filtration precision of <1mm and a high flow rate exceeding 200L/min, effectively removing contaminants. Coupled with a base-mounted permanent magnetic drain plug, it actively captures ferrous wear debris. This comprehensive approach to fluid cleanliness can extend the service life of critical hydraulic components like pumps and valves by up to 30%, drastically reducing downtime and maintenance costs for mining and construction machinery. Invest in system longevity—choose the tank that actively protects your hydraulic investment.

3. Rigorous Leak-Proof Testing for Ultimate Reliability and Safety

Safety and reliability are non-negotiable in demanding environments. Every JH-100b3-BL aluminum fuel tank for hydraulic system undergoes a stringent multi-stage testing protocol. This includes a factory air tightness test at over 50 KPa, ensuring no leakage or permanent deformation, followed by a 30 KPa underwater pressure test held for 2 minutes. This proven leak-proof hydraulic oil tank construction ensures absolute reliability, preventing costly and hazardous fluid leaks during intense operation, such as frequent tipping on rough terrain. This robust build quality makes it a trusted heavy-duty hydraulic reservoir for safety-critical equipment like port machinery and refuse trucks, giving operators complete peace of mind. Don't risk failures—deploy the tank with tested and proven sealing performance .

4. Optimized Internal Design for Enhanced System Performance

Beyond just storage, the JH-100b3-BL is intelligently designed to optimize your entire dump truck hydraulic system performance. The lower outlet of the internal filter features a precise 45-degree cut and is positioned 10-20mm from the tank's bottom plate. This strategic hydraulic tank design promotes complete fluid drainage, minimizes sediment pick-up, and facilitates better bubble separation and heat dissipation. This results in a cooler operating hydraulic oil, with temperature reductions of 8-12°C reported, which enhances overall system efficiency by approximately 15%. This advanced aluminum fuel tank for hydraulic system is ideally suited for large-scale mining dump trucks and sophisticated intelligent hydraulic systems demanding peak performance. Optimize your system's health and output with a intelligently engineered tank.

5. Durable, Eco-Friendly Solution for Lower Total Cost of Ownership

Constructed from corrosion-resistant aluminum alloy, the JH-100b3-BL aluminum hydraulic oil tank offers a service life 2-3 times longer than standard steel tanks, particularly in harsh, wet, or dusty conditions common in mining and construction. This corrosion-resistant hydraulic oil tank aligns with modern environmental standards and green mining initiatives, as it is fully recyclable at the end of its long service life. While the initial investment might be slightly higher, the combination of reduced maintenance, extended system component life, and unparalleled durability leads to a reduction in the Total Cost of Ownership (TCO) by over 25%. This provides exceptional long-term value for owners of mining and construction machinery. Make the smart, sustainable choice that pays for itself over time.
